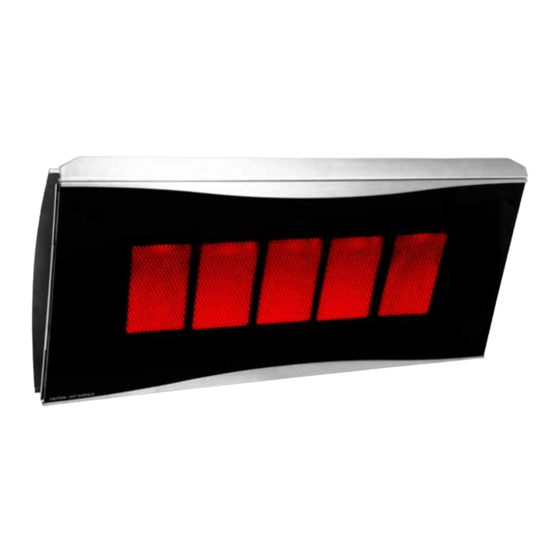

PLATINUM SMART-HEAT™
GAS HEATER
BY BROMIC
INSTALLATION, INSTRUCTION AND
SERVICE MANUAL
SUITABLE FOR GAS RADIANT HEATER MODELS:
PLATINUM 300 - BURNER AND PLATINUM 500 -
If you smell gas:
1.
Shut o gas to the appliance
2.
Extinguish any open ame
3.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or re department.
WARNING: For Outdoors Use Only.
!
Version 4.0 UK
DANGER
!
WARNING
!
Do not store or use gasoline or other amable
vapor and liquids in the vicinity of this or any
other appliance.
!
WARNING: Improper installation,
adjustment, alteration, service or maintenance
can cause property damage, injury or death.
Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
Advertisement
Table of Contents
Related Manuals for Bromic Heating PLATINUM SMART-HEAT 300
Summary of Contents for Bromic Heating PLATINUM SMART-HEAT 300
- Page 1 PLATINUM SMART-HEAT™ GAS HEATER BY BROMIC INSTALLATION, INSTRUCTION AND SERVICE MANUAL SUITABLE FOR GAS RADIANT HEATER MODELS: PLATINUM 300 - BURNER AND PLATINUM 500 - WARNING DANGER Do not store or use gasoline or other amable If you smell gas: vapor and liquids in the vicinity of this or any other appliance.
- Page 2 E: info@bromic.com W: www.bromic.com/heating Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Heating. bromic.com/heat...
-
Page 3: Table Of Contents
CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW PRODUCT DESCRIPTION SPECIFICATIONS GENERAL INFORMATION PRODUCT FEATURES INSTALLATION REQUIREMENTS GAS REQUIREMENTS INSTALLATION CLEARANCES INSTALLATION INSTRUCTIONS HEATER INSTALLATION INSTRUCTIONS GAS SUPPLY INSTALLATION POWER SUPPLY INSTALLATION LEAKAGE TEST HEAT DEFLECTOR INSTALLATION INSTRUCTIONS COMMISSIONING INSTRUCTION - CHECK GAS PRESSURE CEILING MOUNT POLE INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS TURNING THE APPLIANCE ON... -
Page 4: Important Notes & Warnings
IMPORTANT NOTES AND WARNINGS being put into operation if there is evidence of excessive WARNING abrasion or wear, or if the hose is damaged. • The replacement hose assembly must be AGA approved. • THIS APPLIANCE SHALL NOT BE INSTALLED OR USED IN RESIDENTIAL DOMESTIC INDOOR AREAS •... -
Page 5: Product Overview
PRODUCT OVERVIEW SPECIFICATIONS ( Table 1 ) Platinum Smart-Heat 300 G20 NATURAL Gas type G25 NATURAL G31 PROPANE G20 NATURAL GAS G30 BUTANE Gas Category (30) (37) (50) (20) (20) (25) (20/25) (30) (50) 3B/P 3B/P Injector Size 0.82 0.82 0.82... -
Page 6: Product Description
PRODUCT OVERVIEW CONTINUED... PRODUCT DESCRIPTION The Platinum Smart-Heat Series Gas Radiant Heaters are designed to provide effective heating. The heaters incorporate full function electronic controls, allowing them to be operated remotely from a conveniently located switch. The heaters have been designed to withstand the rigors of the outdoors. NOTE: The Platinum heaters are designed only for wall mounting or ceiling pole mounting PLATINUM SMART-HEAT HEATER DIMENSIONAL DETAILS Without Heater... -
Page 7: Product Features
FOR INSTALLATION AND USE IN OUTDOOR OR AMPLY VENTILATED AREAS PRODUCT FEATURES GAS REQUIREMENTS • An amply ventilated area must have a minimum of Platinum Smart-Heat LPG Models: 25% of the surface area open. • Use Propane (LPG) gas only •... -
Page 8: Installation Clearances
INSTALLATION REQUIREMENTS CONTINUED... INSTALLATION CLEARANCES When selecting the installation location for the Platinum Smart-Heat Heaters, the following mounting clearances should be followed. Note: Heater should be installed in such a way so as to Care should be taken to ensure that the heater is not allow installed: adequate;... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS • Attach the bracket to the wall using WARNING appropriate fixtures 2. Connect AGA approved Flexible Gas Connector This appliance must be installed and used in (as supplied) to the inlet fitting on the heater accordance with local Gas installation standard and using 2 wrenches to tighten. - Page 10 INSTALLATION INSTRUCTIONS CONTINUED... 4. Attach Heater to Wall Bracket/Control Housing 5. Connect an approved flexible connector to the Gas Valve Outlet Fitting • Remove Front Cover from Control Housing • Position heater and hose so that the gas • Attach Heater to Wall Bracket/Control Housing hose and fitting are in alignment by inserting Mounting Arm into lower channel of Wall Bracket.
- Page 11 INSTALLATION INSTRUCTIONS CONTINUED... For Honeywell Control • Using a pair of needle nose pliers, grip the white 6. Insert Pivot Bolt ionisation terminal as shown, being mindful of • Position Arm so that the rear hole’s on the the terminal pins of the control module. mounting arm and Control Housing are in Ignition (smaller terminal) alignment...
- Page 12 INSTALLATION INSTRUCTIONS CONTINUED... 8. Connect gas inlet fitting to mains gas supply in IMPORTANT accordance with local gas installation code and gas supply installation section of manual. Leak test with Children of less than 3 years should be kept away soapy water.
-
Page 13: Gas Supply Installation
INSTALLATION INSTRUCTIONS CONTINUED... POWER SUPPLY INSTALLATION GAS SUPPLY INSTALLATION WARNING Before installing, check that the local distribu- tion conditions, nature of gas and pressure and This heater is equipped with a three-prong (grounding) adjustment of the appliance are compatible. plug for your protection against shock hazard and Where multiple appliances are installed and sup- should be plugged directly into a properly grounded plied from a common gas supply it is important... -
Page 14: Heat Deflector Installation Instructions
INSTALLATION INSTRUCTIONS CONTINUED... COMMISSIONING INSTRUCTION LEAKAGE TEST - CONTINUED (CARRY OUT LEAKAGE TEST IF NOT ALREADY DONE) CHECK GAS PRESSURE WARNING IMPROPER INSTALLATION AND ALTERATION CAN CAUSE INJURY AND PROPERTY DAMAGES. READ THE INSTALLATION AND OPERATING MANUAL THOROUGHLY BEFORE INSTALLING THE HEATER. HEAT-DEFLECTOR INSTALLATION Ensamble el de ector de calor de acuerdo con las Assemble Heat Deflector following instructions... -
Page 15: Ceiling Mount Pole Installation Instructions
INSTALLATION INSTRUCTIONS CONTINUED... CEILING POLE INSTALLATION WARNING When mounting ceiling pole, ensure the anchoring to the structure is of sufficient strength, quality and workmanship to support the weight of the heater and any other load that could be applied to the fixture. Note: Ceiling pole must be perpendicular (90deg) to the ground when mounted (irrespective of pitched or flat ceiling). -
Page 16: Operating Instructions
OPERATING INSTRUCTIONS TURNING THE APPLIANCE ON NOTE: The appliance must be completly shutoff for a period of 5 minutes before being relighted. Ensure that gas installation and power installation has been carried out in accordance with the manufacturers IMPORTANT instructions outlined in this document. Check the heater immediately if any of the following Turn on gas supply. -
Page 17: Optimum Mounting Distance
IMPORTANT Replacement parts can be purchased to restore the heater to its original appearance from Platinum Do not apply any additional surface coating to the heater under any Heating Pty Ltd. (Refer to parts list in manual). circumstances. Use of additional coating other than those applied during manufacture could result in hazardous reactions such as toxic fumes or fires. -
Page 18: Honeywell Valve
OPERATION DATA - HONEYWELL CONTROL BOX CONTINUED... Directions for use Operation • Automatic controls are safety devices and shall At every start, the control unit proceeds to a self- not be opened. The manufacturer’s responsibility checking of its own components. During the pre-purge and guarantee are invalid if the control is unduly or waiting time (TW) the internal circuit makes a test opened. -
Page 19: Wiring Diagram
ELECTRICAL DIAGRAM SEE INSTRUCTION MANUAL FOR DETAILS ON HOW TO CONNECT THE ELECTRICAL COMPONENTS. Ionisation Ignition + Brown 230 V Red 230 V Blue Blue HONEYWELL White Black Yellow/Green Note: If any of the original wire as supplied with the heater must be replaced, it must be replaced with 18AWG, 90ºC type UL approved wire or its equivalent. -
Page 20: Replacement Parts
REPLACEMENT PARTS Honeywell bromic.com/heat... - Page 21 REPLACEMENT PARTS DISCRIPTION Part No. 300 Se- Part No. 500 Se- No. Description ries ries Glass Retainer - Top BH8080002-1 2620802 Glass Retainer - Bottom BH8080002-1 2620804 Glass BH8080008 BH8080008 Reflector Assembly BH8080018 BH8080019 Glass Retainer Side BH8080020 BH8080020 Side Shield BH8080021 BH8080021 Sail...
-
Page 22: Post-Installation Report
POST-INSTALLATION REPORT POST-INSTALLATION REPORT FOR PLATINUM GAS RADIANT HEATERS AFTER HEATER INSTALLATION PLEASE PHOTOCOPY, COMPLETE, & SEND THIS REPORT Customer Business Name: Please fill in the relevant information or circle the appropriate Yes/No responses below: 3-Tile: 5-Tile: How many Platinum heaters are yyyy Date: installed on this site? -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Heater will not turn on No power Have authorised electrician 2. No gas check power supply 2. Have authorised gas fitter check gas supply Heater turns on, but then cycles on Insufficient flame on ionisation rod and off 2. - Page 24 APPENDIX A Note: For clearance from combustible materials see page 7 bromic.com/heat...
- Page 25 APPENDIX A CONTINUED... bromic.com/heat...
- Page 26 APPENDIX A CONTINUED... Abbreviation Country AUSTRIA BELGIUM BULGARIA SWITZERLAND CYPRUS CZECH REPUBLIC GERMANY DENMARK ESTONIA SPAIN FINLAND FRANCE GREAT BRITAIN GREECE CROATIA HUNGARY IRELAND ICELAND ITALY LITHUANIA LUXEMBOURG LATVIA MALTA NETHERLANDS NORWAY POLAND PORTUGAL ROMANIA SWEDEN SLOVENIA SLOVAKIA TURKEY bromic.com/heat...
