Platinum Smart-heat™
GaS heater
BY BrOmiC
InstallatIon, InstructIon and
servIce manual
SUITABLE FOR GAS RADIANT HEATER MODELS:
PLATINUM 300 - BURNER AND PLATINUM 500 - BURNER
If you smell gas:
1.
Shut o gas to the appliance
2.
Extinguish any open ame
3.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or re department.
WARNING: For Outdoors Use Only.
!
ENGLISH vERSION FROM PAGES 1 - 27
Version 2.1 USA - CANADIAN
DANGER
!
WARNING
!
Do not store or use gasoline or other amable
vapor and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
!
WARNING: Improper installation,
adjustment, alteration, service or maintenance
can cause property damage, injury or death.
Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
Advertisement
Table of Contents
Related Manuals for Bromic Heating BH0110002-1
Summary of Contents for Bromic Heating BH0110002-1

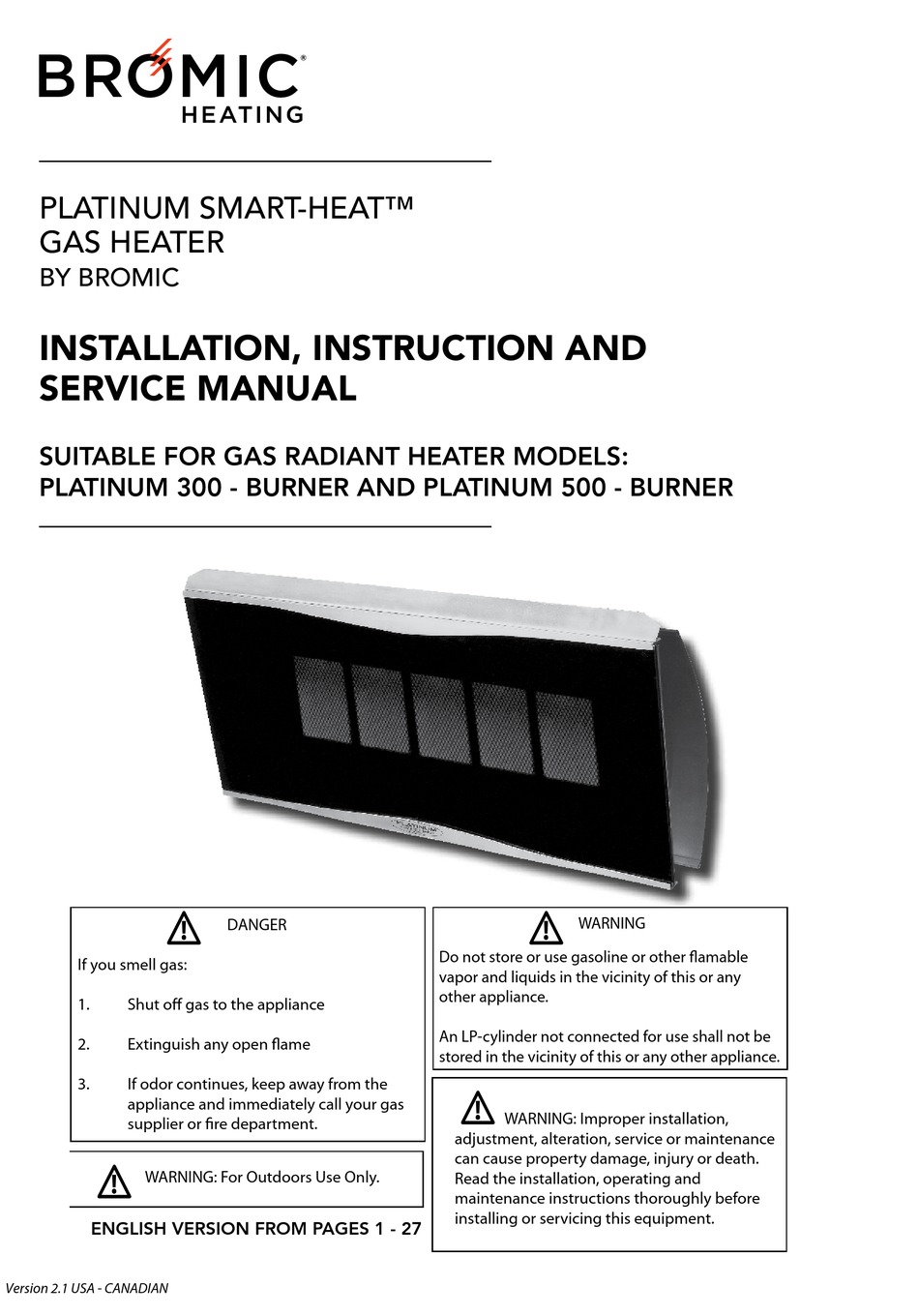

- Page 1 Platinum Smart-heat™ GaS heater BY BrOmiC InstallatIon, InstructIon and servIce manual SUITABLE FOR GAS RADIANT HEATER MODELS: PLATINUM 300 - BURNER AND PLATINUM 500 - BURNER WARNING DANGER Do not store or use gasoline or other amable If you smell gas: vapor and liquids in the vicinity of this or any other appliance.
- Page 2 Note: Bromic Heating Pty Ltd reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form without prior written consent from Bromic Heating Pty Ltd.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW PRODUCT DESCRIPTION SPECIFICATIONS GENERAL INFORMATION PRODUCT FEATURES INSTALLATION REQUIREMENTS GAS REQUIREMENTS INSTALLATION CLEARANCES INSTALLATION INSTRUCTIONS HEATER INSTALLATION INSTRUCTIONS GAS SUPPLY INSTALLATION POWER SUPPLY INSTALLATION LEAKAGE TEST HEAT DEFLECTOR INSTALLATION INSTRUCTIONS CEILING MOUNT POLE INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS TURNING THE APPLIANCE ON TURNING THE APPLIANCE OFF... -
Page 4: Important Notes & Warnings
IMPORTANT NOTES AND WARNINGS • Do not use the heater until all connections have been WarnInG leak tested by an authorized person. • Inspect the hose assembly before each use of the • THIS APPLIANCE SHALL NOT BE INSTALLED OR USED appliance. -
Page 5: Product Overview
Gas type Propane (LPG) NATURAL GAS Propane (LPG) NATURAL GAS Manufactured by BROMIC HEATING PTY LTD - 1 SUTTOR ST SILVERWATER, NSW, 2128, SYDNEY AUSTRALIA. Approval No. ETL & cETL Listing 4009079 Gas Consumption 23,600 BTU 23,600 BTU 39,800 BTU... -
Page 6: General Information
PRODUCT OvERvIEW CONTINUED... General InFormatIon The Platinum Series Gas radiant heaters are suitable for outdoor spaces. In addition to the installation instructions provided, authorized installers must abide by local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2. -
Page 7: Installation Clearances
INSTALLATION REQUIREMENTS CONTINUED... InstallatIon clearances When selecting the installation location for the Platinum Series Heaters, the following mounting clearances should be followed. Care should be taken to ensure that the heater is not installed: • Where heat/ignition can cause damage to gas cylinders/ lines • Near other combustible materials • In open locations subject to rain... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Heater InstallatIon InstructIons Step 2. Connect CSA approved Flexible Gas Connector (as supplied) to the inlet fitting on the heater WarnInG using 2 wrenches to tighten. Leak Test by applying compressed air (1/2” PSI) to open end of flexible This appliance must be installed and used in accordance hose. - Page 9 INSTALLATION INSTRUCTIONS CONTINUED... Step 4. Attach Heater to Wall Bracket/Control Housing Step 5. Connect the CSA approved flexible connector to the Gas valve Outlet Fitting • Remove Front Cover from Control Housing • Position heater and hose so that the gas hose and • Attach Heater to Wall Bracket/Control Housing fitting are in alignment by inserting Mounting Arm into lower channel of...
- Page 10 INSTALLATION INSTRUCTIONS CONTINUED... For Honeywell Control 6. Insert Pivot Bolt • Position Arm so that the rear hole’s on the mounting • Using a pair of needle nose pliers, grip the white arm and Control Housing are in alignment ionisation terminal as shown, being mindful of the •...
- Page 11 INSTALLATION INSTRUCTIONS CONTINUED... 8. Connect gas inlet fitting to mains gas supply in For Fenwal control accordance with local gas installation code and • Feed wiring harness (3 wires) through opening gas supply installation section of manual. Leak test under Fenwal controller so that wires are positioned with soapy water.
-
Page 12: Gas Supply Installation
INSTALLATION INSTRUCTIONS CONTINUED... Gas suPPlY InstallatIon PoWer suPPlY InstallatIon WarnInG ImPortant This heater is equipped with a three-prong (grounding) • All gas supply installation work must be performed by plug for your protection against shock hazard and should trained and authorized person(s) and comply with the be plugged directly into a properly grounded three-prong requirements of local Gas Installation Codes. -
Page 13: Heat Deflector Installation Instructions
INSTALLATION INSTRUCTIONS CONTINUED... 4. Fix Heater to Lower paddles using suitable fixtures. NOTE: Platinum Heating recommends running power and gas lines, to the heater, inside the pole to reduce visibility and likelihood of damage. Heat-deFlector InstallatIon ceIlInG Pole InstallatIon WARNING When mounting ceiling pole, ensure the anchoring to the structure is of sufficient strength, quality and workmanship to support the weight of the heater and any other load that... -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS turnInG tHe aPPlIance on NOTE: The appliance must be completly shutoff for a period of 5 minutes before being relighted. 1. Ensure that gas installation and power installation has been carried out in accordance with the manufacturers ImPortant instructions outlined in this document. -
Page 15: Optimum Mounting Distance
ImPortant its original appearance from Bromic Heating Pty Ltd. (Refer to parts list in manual). Do not apply any additional surface coating to the heater under any circumstances. Use of additional coating other than those applied during manufacture could result in hazardous reactions such as toxic fumes or fires. -
Page 16: Honeywell Valve
OPERATION DATA - HONEYWELL CONTROL BOX CONTINUED... Directions for use Operation • Automatic controls are safety devices and shall not be At every start, the control unit proceeds to a self-checking opened. The manufacturer’s responsibility and guarantee of its own components. During the pre-purge or waiting are invalid if the control is unduly opened. -
Page 17: Operation Data - Fenwal Control Box
OPERATION DATA - FENWAL CONTROL BOX The Series 35-60 is 24 VAC Microprocessor Based Direct Operation Spark Ignition Controls designed for use in all types of When a call for heat is received from the thermostat heating applications. The control utilizes a microprocessor supplying 24 volts to TH/W, the control will reset, perform a to continually and safely monitor, analyze and control the self check routine, flash the diagnostic LED, and a pre-purge... -
Page 18: Dungs Gas Valve
OPERATION DATA - DUNGS GAS vALvE The Dungs GB Valve is a multifunctional Gas Control with tecHnIcal data combined regulator and safety shutoff valves. Opening Time Fast Opening <1sec The pressure regulator includes a servo regulator to regulate Slow Opening <10 sec pressure fluctuations in the mains supply. -
Page 19: Wiring Diagram
WIRING DIAGRAM - HONEYWELL CONTROL, HONEYWELL GAS vALvE ELECTRICAL DIAGRAM SEE INSTRUCTION MANUAL FOR DETAILS ON HOW TO CONNECT THE ELECTRICAL COMPONENTS. Ionisation Ignition + Black 110 V Red 230 V Blue White HONEYWELL White Black Yellow/Green Note: If any of the original wire as supplied with the heater must be replaced, it must be replaced with 18AWG, 90ºC type UL approved wire or its equivalent. - Page 20 WIRING DIAGRAM - FENWAL CONTROL, WHITE RODGERS GAS vALvE ELECTRICAL DIAGRAM SEE INSTRUCTION MANUAL FOR DETAILS ON HOW TO CONNECT THE ELECTRICAL COMPONENTS. Green Blue White Black - 110 V 24 V Orange Ignition + Ionisation Yellow/Green Yellow/Green GND. White S 1.
- Page 21 WIRING DIAGRAM - FENWAL CONTROL, DUNGS GAS vALvE ELECTRICAL DIAGRAM SEE INSTRUCTION MANUAL FOR DETAILS ON HOW TO CONNECT THE ELECTRICAL COMPONENTS. Green White Blue Black - 110 V 24 V Orange Ignition + Ionisation Yellow/Green Yellow/Green GND. White S 1. Black HT Cable Note: If any of the original wire as supplied with the heater must be replaced, it must be replaced with 18AWG, 90ºC type UL...
-
Page 22: Replacement Parts
REPLACEMENT PARTS www.bromicheating.com... - Page 23 Transformer – 110V-24V (Fenwal) Note: For more information on obtaining spare parts contact the place of purchase or BROMIC HEATING Head Office: 1 Suttor Street, Silverwater, Sydney, NSW 2128 Australia Telephone: 1300 276 642 (within Australia) or +61 2 9748 3900 (from overseas) Fax: +61 2 9748 4289 Email: info@bromicheating.com Web: www.bromicheating.com...
-
Page 24: Post-Installation Report
PleaSe PhOtOCOPY, COmPlete, & SenD thiS rePOrt BY: FaX tO (02) 9748 4289 or BY mail tO Bromic heating Pty ltd, Suite 1305, 13223 Black mountain road San Diego, California 92129 uSa or SCan anD email tO info@bromicheating.com... -
Page 25: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIvE ACTION Heater will not turn on 1. No power 1. Have authorized electrician check 2. No gas power supply 2. Have authorized gas fitter check gas supply Heater turns on, but then cycles on 1. Insufficient flame on ionisation rod and off 2. - Page 26 APPENDIX A www.bromicheating.com...
- Page 27 APPENDIX A CONTINUED... www.bromicheating.com...
