Design and function

General

5.5 General
TIG torches are connected to the power source via the hose package. The following components are
guided through the hose package:
• welding current lead
• shielding gas supply
• control cable
With water-cooled TIG welding torches, the
• coolant supply and
• coolant return
are also guided through the hose package.
With TIG welding, the welding consumable is usually added manually in form of a stick. With fully auto-
matic machines, the welding consumable is usually added as a wire by a separate wire feeder.
5.6

Function specification

5.6.1

Operating elements

5.6.1.1

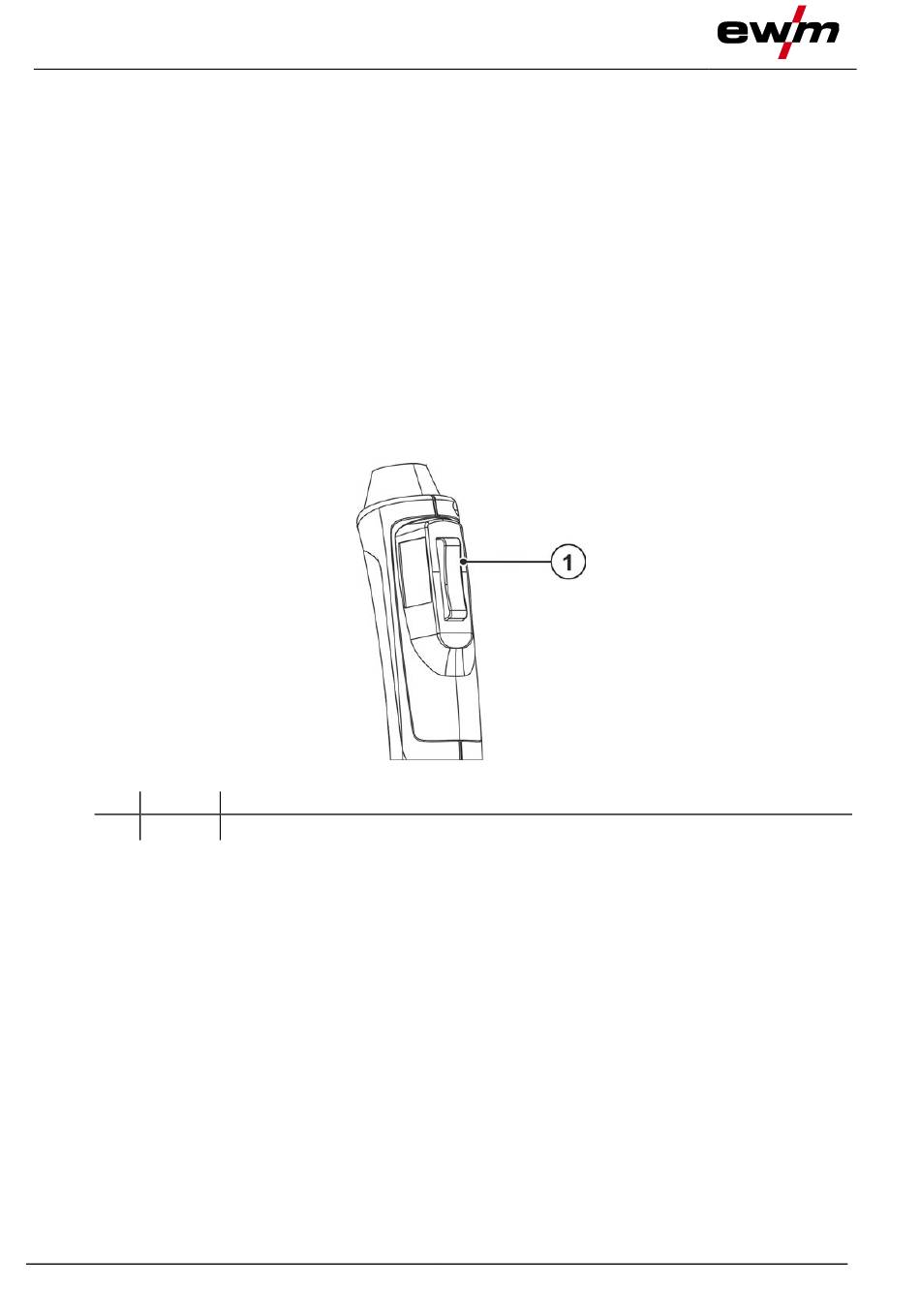

Standard TIG torch (5-pole)

Item Symbol
1
TIG torches are equipped with a torch trigger. This trigger is used to:
• switch the welding current on and off,
• reduce the current during welding to a secondary current by tapping it.
Tapping function: Swiftly tap the torch trigger to change the function. The set torch mode determines the
operating mode.
22
Description 0
Torch trigger
Figure 5-3
