TIG 450, -450 SC

The welding torch shown is an example only. Depending on the type used, torches may vary.
Item Order number
1.1 094-009646-00000
1.1 094-009647-00000
1.1 094-009648-00000
1.1 094-009649-00000
1.2 094-009650-00000
1.2 094-009651-00000
1.2 094-009653-00000
1.2 094-009654-00000
1.3 094-011997-00000
1.3 094-011998-00000
1.4 094-009655-00000
1.4 094-009656-00000
1.5 094-009663-00000
1.5 094-009664-00000
1.5 094-009665-00000
1.6 094-011999-00000
4 094-009657-00000
4.1 094-011759-00000
099-011445-EW501
24.06.2021

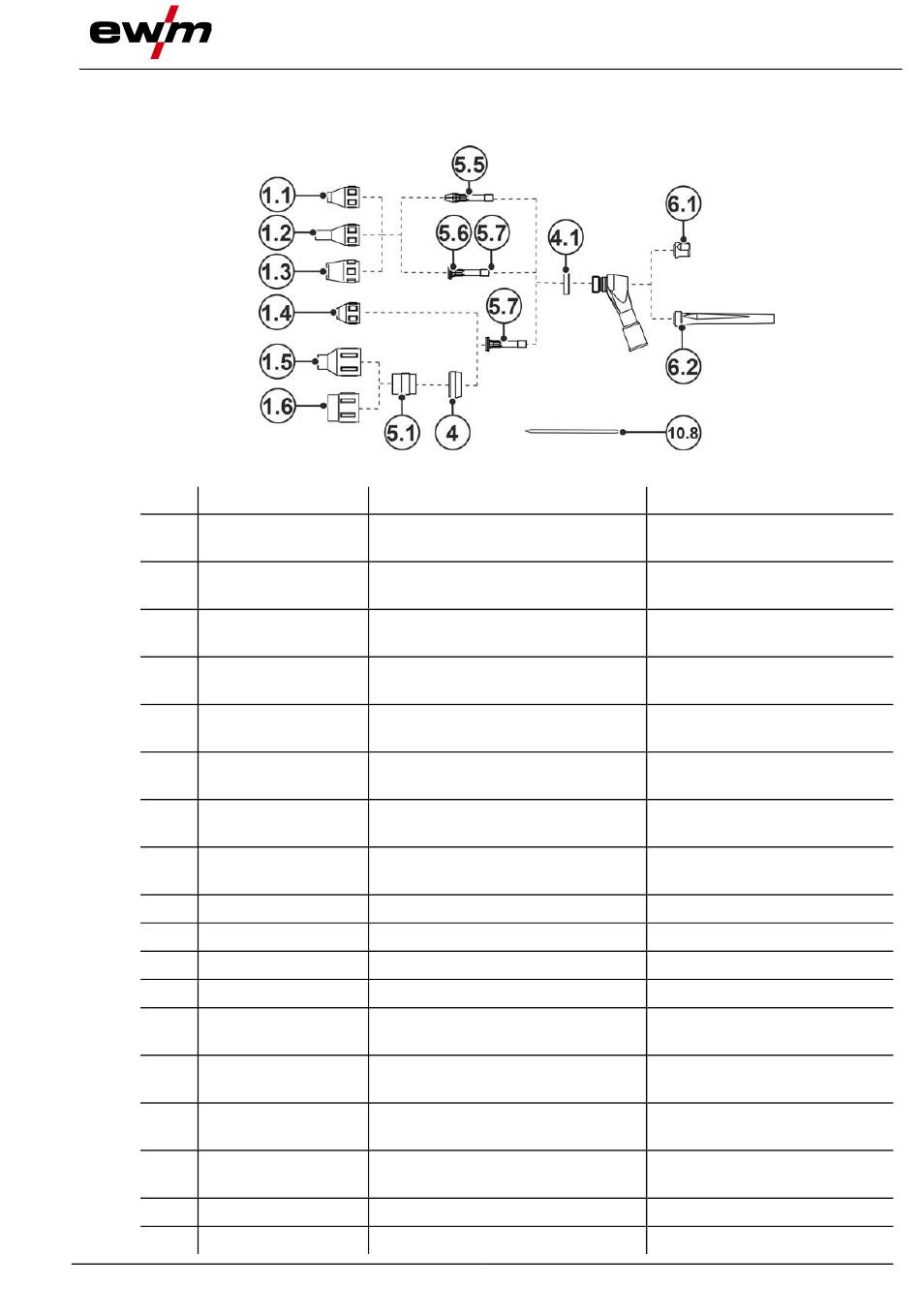

Figure 10-5
Type
GN TIG 200/450/450SC, 7,5 x 37,4
mm
GN TIG 200/450/450SC, 10 x 37,4
mm
GN TIG 200/450/450SC, 13 x 37,4
mm
GN TIG 200/450/450SC, 15 x 37,4
mm
GN TIG 200/450/450SC, 7,5 x 51,5
mm
GN TIG 200/450/450SC, 10 x 51,5
mm
GN TIG 200/450/450SC, 13 x 51,5
mm
GN TIG 200/450/450SC, 15 x 51,5
mm
GN TIG 200/450 13.0x37mm RF
GN TIG 200/450 15.0x37mm RF
GN TIG 200/450 S 10.0x26mm
GN TIG 200/450 S 13.0x26mm
GN DIF TIG 150-450/450SC, 12,5 x
50 mm
GN DIF TIG 150-450/450SC, 16 x 50
mm
GN DIF TIG 150-450/450SC, 19,5 x
50 mm
GN TIG Ø 24 mm, L 34 mm
INS TIG 200/450 XL
INS TIG 200/450/450SC
Replaceable parts
TIG 450, -450 SC
Designation
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle, reinforced
Gas nozzle, reinforced
Gas nozzle for gas diffuser
Gas nozzle for gas diffuser
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Insulator, JUMBO
Insulator
