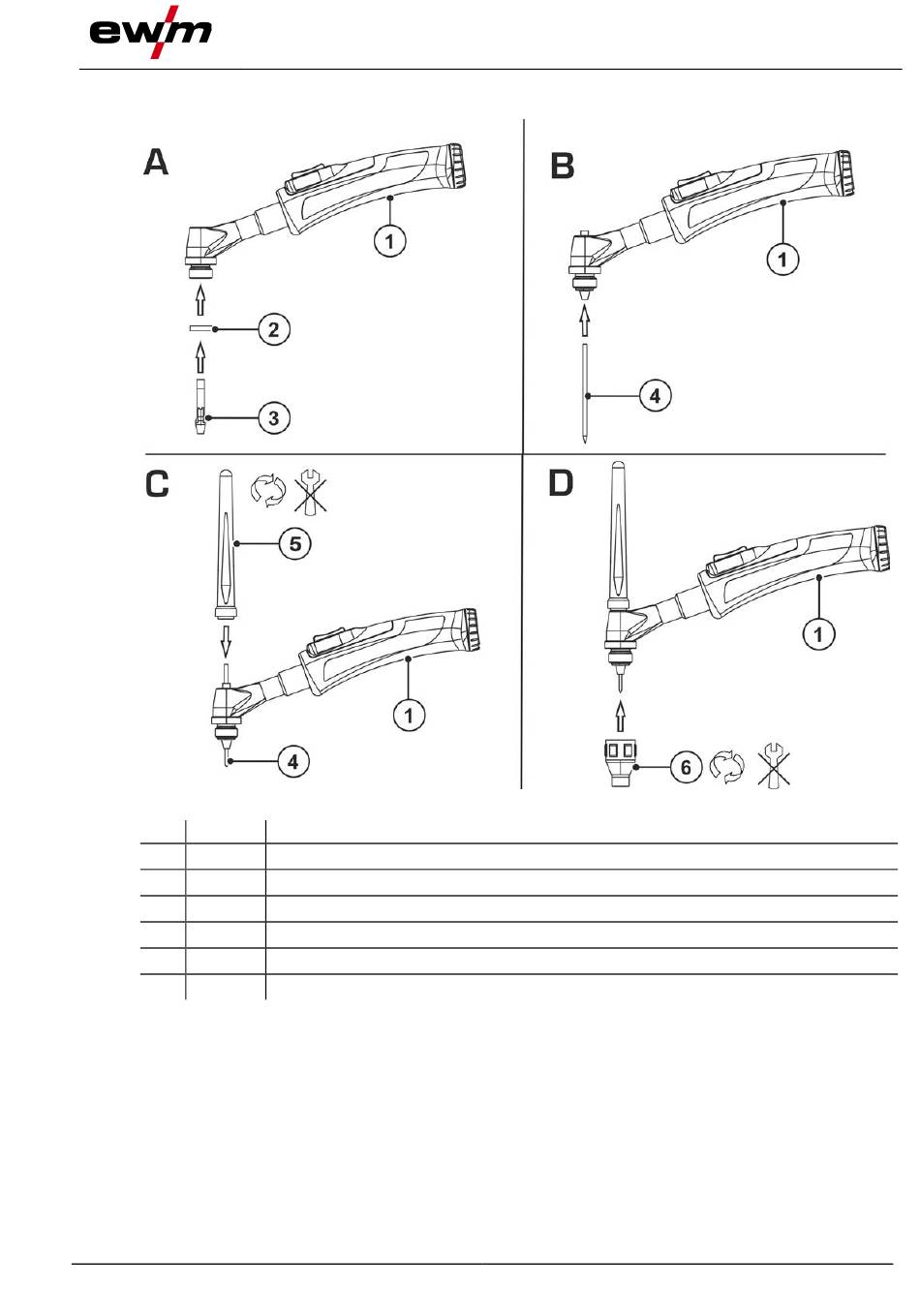

Slide the insulator onto the torch head from below.
•
Guide the collet body into the torch head from below.
•
Insert the electrode into the welding torch with the blunt side from below.
•
Screw on the back cap.
•
Screw on the gas nozzle by hand.
•
Loosen the back cap slightly. Position the electrode correctly and tighten the back cap by hand.
099-011445-EW501
24.06.2021
Description
0
Torch body
Insulation
Collet
Electrode
Back cap
Gas nozzle
