Machine description – quick overview

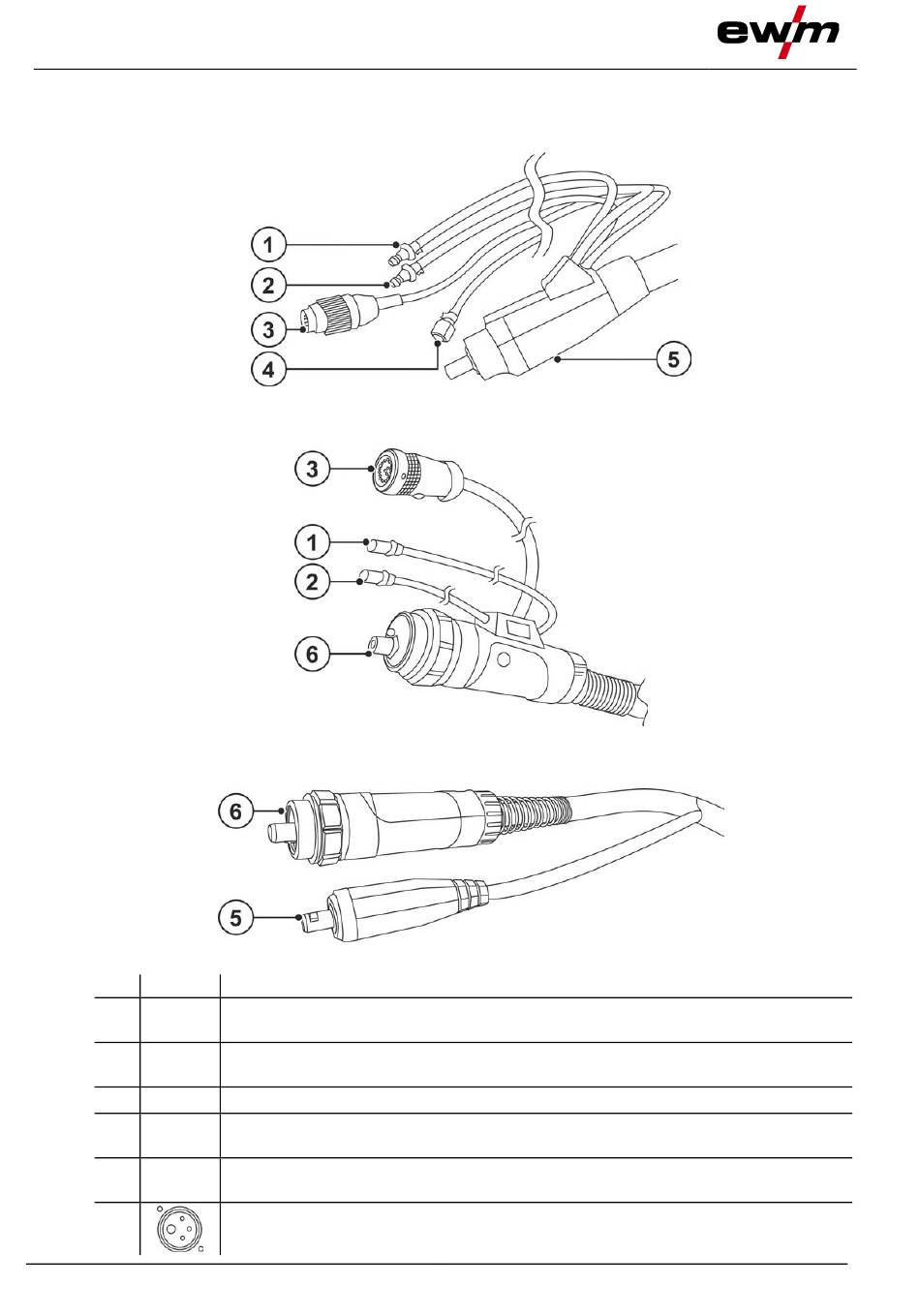

Connection variants

4.2 Connection variants
4.2.1

Decentral connection

4.2.2

Euro central connection

4.2.3

Euro central connection - KOMBI

Item Symbol
1
2
3
4
5
6
16
Description 0
Quick connect coupling, NW 5
Coolant return (red)
Quick connect coupling, NW 5
Coolant feed (blue)
Control lead cable plug
Shielding gas hose
Crown nut G ¼"
Welding current connection
Decentral
Euro central connection
Welding current and shielding included.
Figure 4-2
Figure 4-3
Figure 4-4
099-011445-EW501
24.06.2021
