Replaceable parts

TIG 260

10.4 TIG 260
The welding torch shown is an example only. Depending on the type used, torches may vary.
Item Order number
1.1 094-011756-00000
1.1 094-011980-00000
1.1 094-012405-00000
1.1 094-012672-00000
1.2 094-011757-00000
1.2 094-011982-00000
1.2 094-012673-00000
1.2 094-012674-00000
1.3 094-015451-00000
1.3 398-000191-00000
1.4 094-019609-00000
1.4 094-019610-00000
1.4 394-000155-00000
1.4 394-000156-00000
1.5 094-009663-00000
1.5 094-009664-00000
1.5 094-009665-00000
1.6 094-011999-00000
3 094-011758-00000
4 094-011760-00000
4.1 094-011979-00000
5.1 094-009658-00000
40

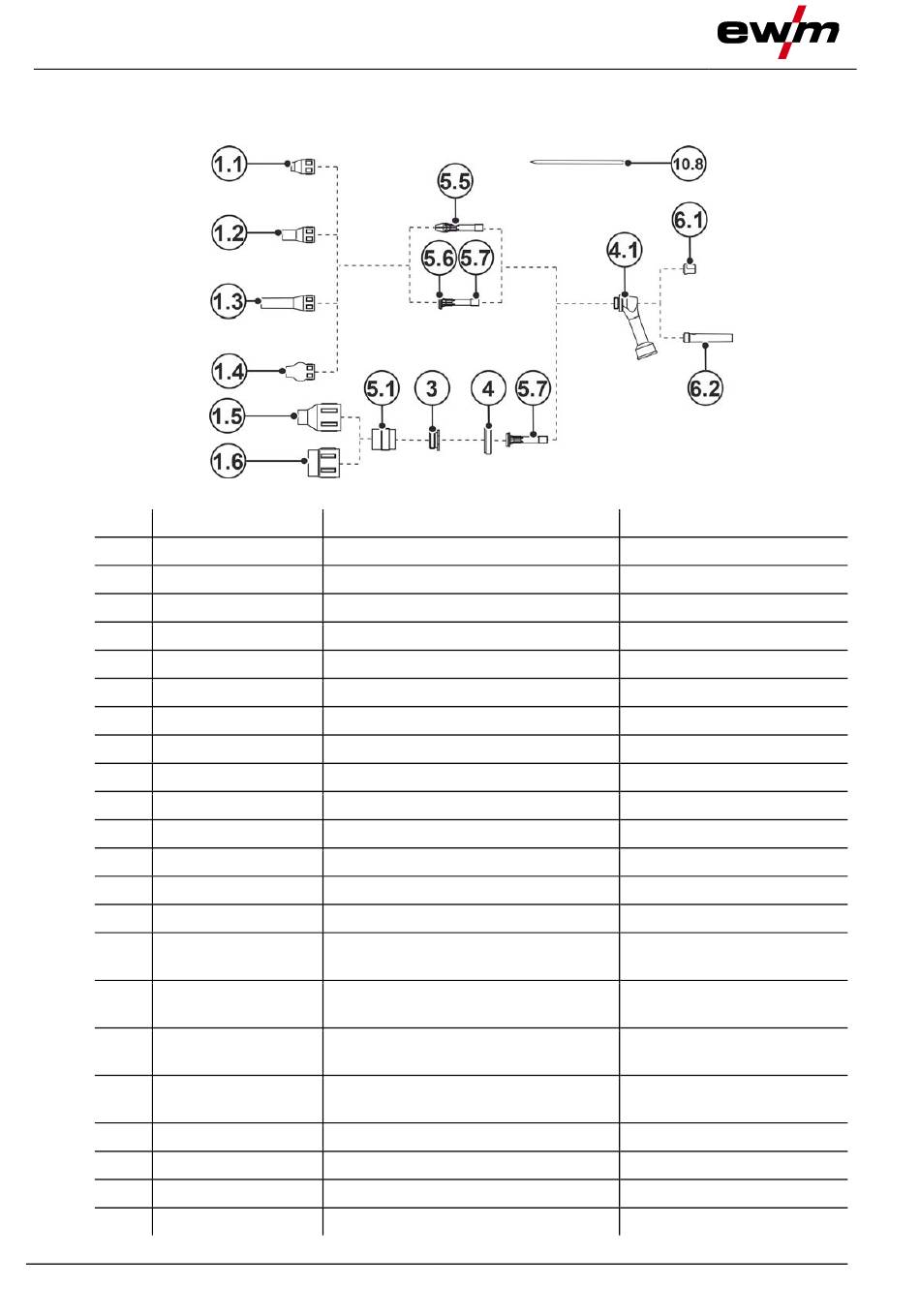

Figure 10-4
Type
GN TIG 150/260 S 9,5x26mm
GN TIG 150/260 S 11.5x26mm
GN TIG 150/260 S 8.0x26mm
GN TIG 150/260 S 6.5x26mm
GN TIG 150/260 11.5x36mm
GN TIG 150/260 10.0x26mm
GN TIG 150/260 6.5x36mm
GN TIG 150/260 8.0x36mm
GN 150/260 D=6.5MM L=60MM
GN 150/260 D=8MM L=60MM
GD D=11 mm L=32 mm
GD D=6,5 mm L=32 mm
GN 150/260 D=9,5MM L=32MM
GN 150/260 D=8MM L=32MM
GN DIF TIG 150-450/450SC, 12,5 x 50
mm
GN DIF TIG 150-450/450SC, 16 x 50
mm
GN DIF TIG 150-450/450SC, 19,5 x 50
mm
GN TIG Ø 24 mm, L 34 mm
ADAPT 150/260 XL
ISO TIG 150/260 XL
ISO TIG 150/260
DIF TIG 150-450/450SC, D=1,6 mm
Designation
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle
Gas nozzle, ball version
Gas nozzle, ball version
Gas nozzle, ball version
Gas nozzle, ball version
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Gas nozzle for gas diffuser,
JUMBO
Adapter ring, JUMBO
Insulator, JUMBO
Insulator
Gas diffuser, JUMBO
