Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Margo Console is designed for indoor use on level floors.
Clean wood veneer and steel parts with a moist cloth.
Margo is engineered for easy assembly. Carefully follow this procedure to
prevent any damage. Do not use power tools for assembly of this product.
Step 1
This unit ships in 3 cartons (metal frames, cabinet & shelf, and sliding door
front) Unpack all cartons and associated hardware bags. Identify the parts
listed below. The assembly workspace should be a non-marring surface
such as carpet. For missing hardware pieces, contact BDI Customer
Service at: customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
Designed by Jeff Bare.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Margo & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2019, BDI
Made in China. 06.12.2019 V3

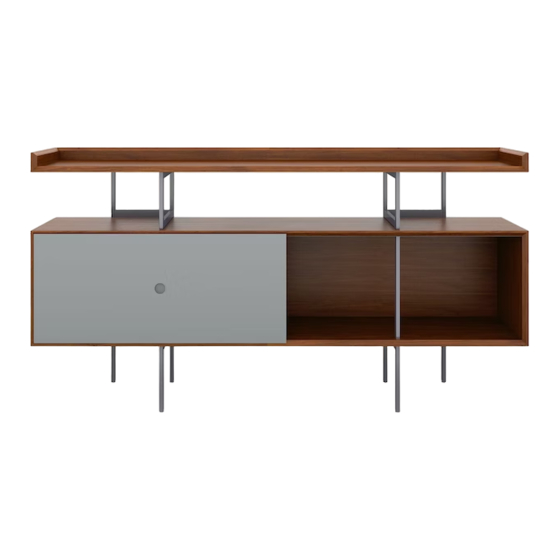

MARGO
5211
™
Console
A1 Left frame x 1
A2 Right frame x 1
bdiusa.com
customerservice@bdiusa.com
T1 Hex Driver x 1
T2 Leveler wrench x 1
H1 M6 x 38 mm
Pan Head Screw x 10
H3 Thumb Screw x 2
C1 Shelf x 1
C2 Cabinet x 1
C3 Door Facia x 1
Advertisement
Related Manuals for BDI MARGO 5211
Summary of Contents for BDI MARGO 5211
- Page 1 C3 Door Facia x 1 Designed by Jeff Bare. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Margo & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2019, BDI Made in China. 06.12.2019 V3...
- Page 2 Step 3 - Carefully place shelf C1 on top of the frames. Attach shelf C1 to each frame with pan-head screws H1 and partially tighten with hex driver T1. DO NOT tighten the screws completely until the cabinet is also positioned and installed. H1 x 4 T1 Hex Driver bdiusa.com MARGO 5211 customerservice@bdiusa.com Console...
- Page 3 Step 5 -Secure the back of the cabinet to the 2 frames using pan-head screws H1 and hex driver T1. Tighten ALL SCREWS for the shelf and cabinet at this time. H1 x 2 T1 Hex driver bdiusa.com MARGO 5211 customerservice@bdiusa.com Console...
- Page 4 Check to make sure the door facia is level with the cabinet and the gaps along the top and bottom edges of the door are even with no rubbing between the door and cabinet. If not, proceed to step 8. slide to the right to lock Door frame Door facia bdiusa.com MARGO 5211 customerservice@bdiusa.com Console...
- Page 5 To move the door frame down, turn the wheel towards the right. Lifting the door frame up with your other hand allows the adjustment wheel to turn more freely. adjustment wheel wheel direction Levelers Leveler wrench lift here while adjusting the door bdiusa.com MARGO 5211 customerservice@bdiusa.com Console...
