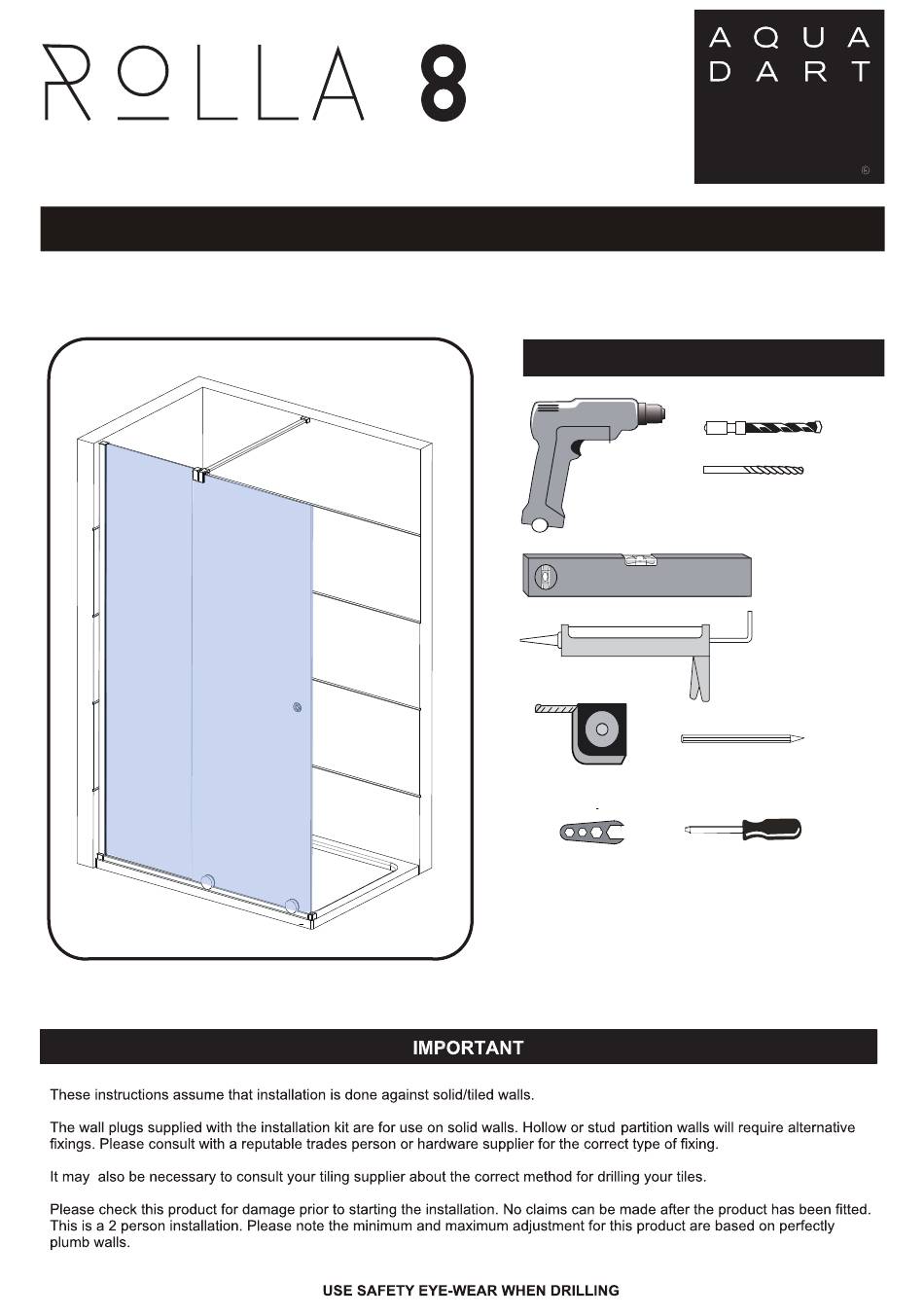

SLIDING WETROOM
INSTALLATION INSTRUCTIONS
N.B ： N.B. This instruction applies to the Wetroom, Sliding Door Recess and Sliding Door Enclosure. Please read the
whole instruction before starting installation
Tools Required
Drill
Tape Measure
PH2 TYPE
Hex Wrench
Screwdriver
Please note hand tools NOT supplied
www.aquadart.co.uk
8mm Masonry Drill
2.75mm HSS Drill
Spirit Level
Sealant Gun
Pencil
