10MM WETROOM
INST ALLA TION INSTRUCTIONS
www.aquadart.co.uk
Please read through the complete instruction leaflet before commencing any installation work.
Tools Required
6
2.75
PH2 TYPE
IMPORT ANT
EYE-WEAR WHEN DRILLING
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
US E S A F E T Y E Y E -WE A R W HE N D R IL L ING
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aquadart wetroom 10
Summary of Contents for Aquadart wetroom 10

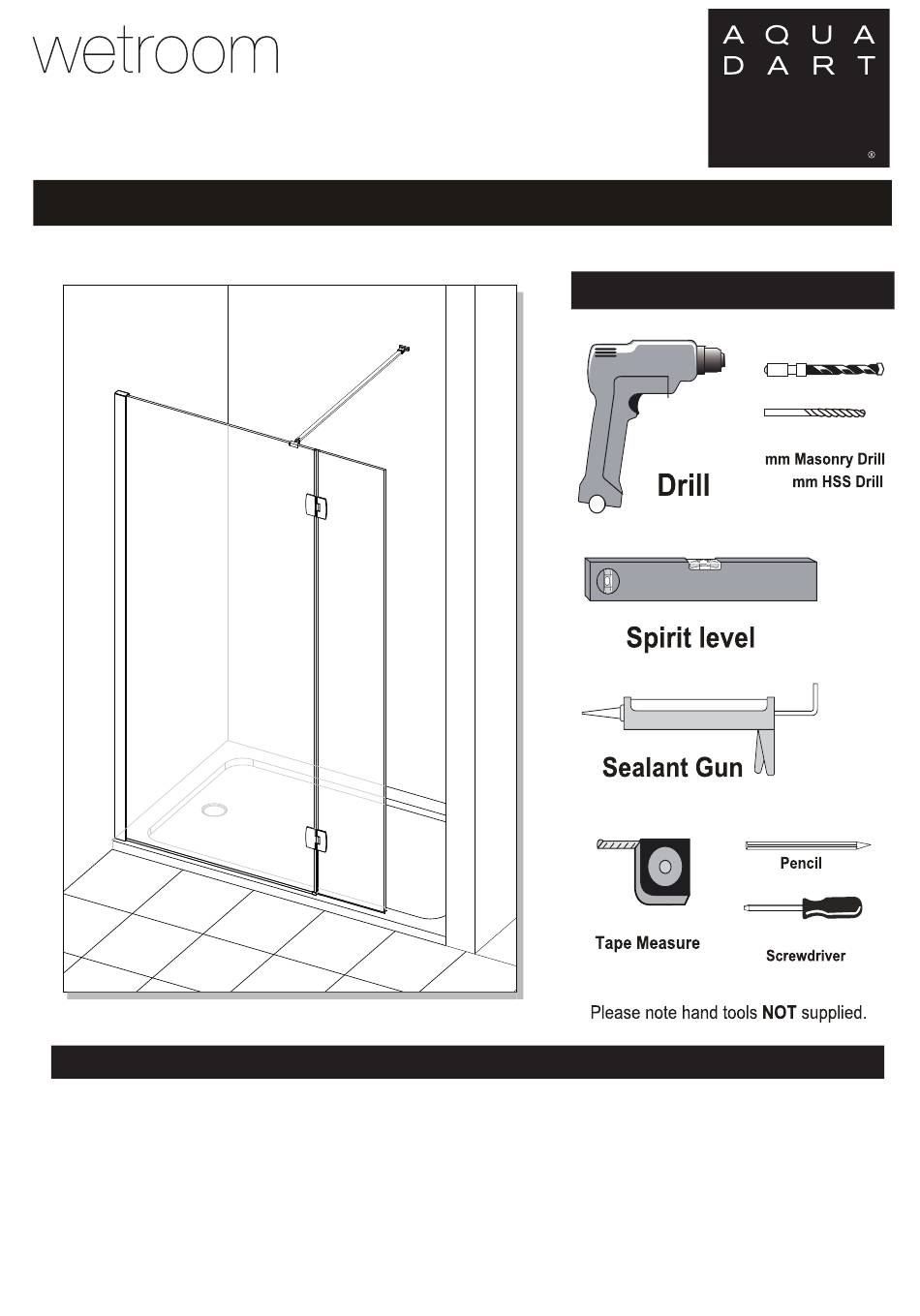

- Page 1 10MM WETROOM INST ALLA TION INSTRUCTIONS www.aquadart.co.uk Please read through the complete instruction leaflet before commencing any installation work. Tools Required 2.75 PH2 TYPE IMPORT ANT EYE-WEAR WHEN DRILLING This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation.
- Page 2 COMPONENTS AND BOX CONTENTS Optional Return Panel Box Contents Description Description Wall Bracket Screws 4x30 Pan Head Drip Strip Cover Cap (Wall Profile) Drip Strip End Cap Wall Profile Bottom seal Wall Plugs Screws 4x30 Pan Head Vertical Seal Fixed Panel Hinge Seal Moving Door...
- Page 3 (For Chromed Item Only) IMPORTANT - Missing Components Please check this product for missing components prior to installation. www.aquadart.co.uk For spare parts visit IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
- Page 4 FIX FRONT PANEL WALL PROFILE Step 1. Place the wall profile onto the edge of the tray,roughly 10mm from the front of the shower tray edge. Ensure the wall profile is level to the wall. If the panel is fitted without a tray, please ignore the Diagram A.
- Page 5 FIX BOTTOM DRIP STRIP 0~10MM Step 5. Push the glass panel onto the wall profile from the side with the hinge hole if you don't fit a return panel ensure the hinge holes have been covered by the wall profile fully(Diagram F). Step 6.
- Page 6 FIX FRONT PANEL GLASS INSIDE Step 9. After the glass panel is in its final position press the seal into the wall profile securing from bottom to top Diagram J Step 10. Measure the support bar tube length then cut it to the required size (Diagram K). Step 11.
- Page 7 FIX FRONT PANEL SUPPORT BAR Step 17. Fit the end cap onto the bottom drip strip (Diagram S). Fit the top cap onto the wall profile (Diagram T) T-piece connector for end panel support bar...
- Page 8 SEALING SILICONE Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. 24 HOURS AFTER Sealing Outside Seal from the top of the wall profile to the bottom between the...
- Page 9 FIX THE OPTIONAL RETURN PANEL Step 1. Cut the hard plastic of the seal in 13mm as per diagram A then press the seal onto the front panel,ensuring the soft flipper touches the tray / floor. Note:The easiest way to cut this seal is with a sharp blade, deeply score this and snap or a good pair of tin snips. Step 2.
- Page 10 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
