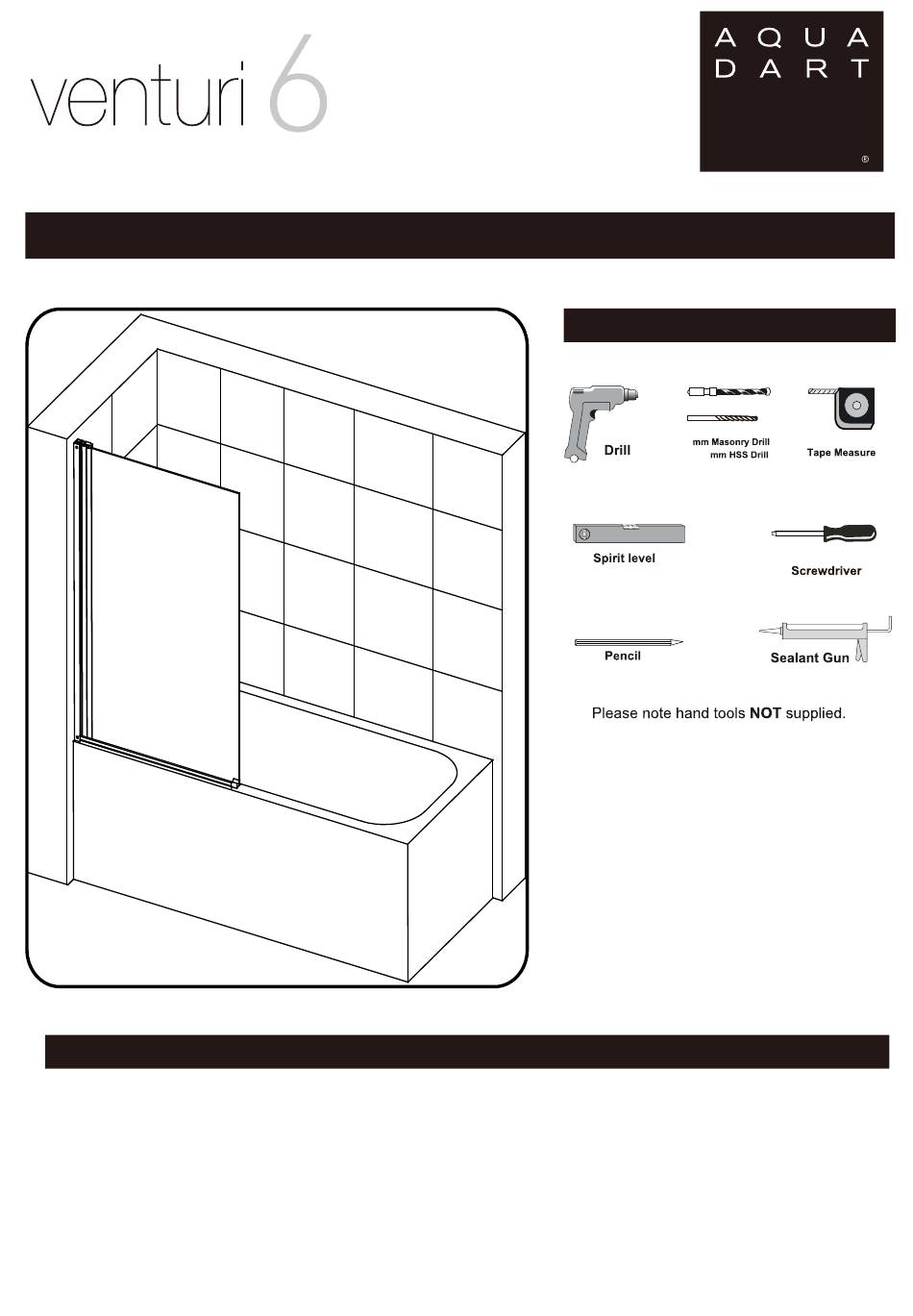

AQ9359S-Swiftseal Single Bath Screen
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
www.aquadart.co.uk
www
www.aprilproducts.co.uk
www.aprilproducts.co.uk

Tools Required

6
2.75
PH2 TYPE

IMPORTANT

This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
USE SAFETY EYE-WEAR WHEN DRILLING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the venturi 6 AQ9359S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aquadart venturi 6 AQ9359S

  • Page 1 AQ9359S-Swiftseal Single Bath Screen INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS www.aquadart.co.uk www.aprilproducts.co.uk www.aprilproducts.co.uk Tools Required 2.75 PH2 TYPE IMPORTANT This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future injury.
  • Page 2 COMPONENTS AND BOX CONTENTS Box Contents Descrip on Descrip on Wall Profile Arm Rail Wall Plug Glass Bolt Fixing Screw M6x12 Fixing Screw ST 4x30 Cover Cap(For Rail Holder) Cover Cap Rail Holder Fixing Fixing Screw ST 4x10 Washers Cover Cup Bo om Rail Holder 2(L/R) Washer A...
  • Page 3 Ф6 drill bit Step 1: Position the wall profile (No 1 ) onto the bath , approximately 12-15mm from the outside bath edge , ensuring that the side with the pre-drilled holes are facing outwards from the bath ( Diagram A). Step 2: Level the profile with a spirit level, then mark the position using a pencil through the 3 pre-drilled screw holes in the wall profile,drill the marked points using a 6mm masonry drill bit.
  • Page 4 Step 4 : Inset the bubble seal(No.10) onto the arm rail profile(No.11). (Diagram D) CORRECT Step 5 : Drop a little bit of silicone sealant into the arm rail profile ( No.11) then press the handed end cap (No.18) into the arm rail profile(No.11) (Diagram E) Step 6 : Fit the washers(No.8,No.9 ) onto the arm rail profile(No.11) (Diagram F).
  • Page 5 Step 12: Press the bottom seal onto the bath screen as shown(M). Silicone the outside of the wall post as shown(M). Step 13: Silicone the inside of the wall post as shown(N). Step 1 T o open the bath screen please follow the steps as below: Press the bottom rail profile with a soft downwards motion to release it from the rail holder.(Diafram O)...
  • Page 6 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
