Aquadart venturi 6 AQ9357LS Installation Instructions

Swiftseal semi-frameless 4 fold bath screen

Advertisement

AQ9357LS
AQ9357RS
Swiftseal Semi-Frameless 4 Fold Bath Screen
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
IMPORTANT
USE SAFETY EYE-WEAR WHEN DRILLING
www.aquadart.co.uk
www
www.aprilproducts.co.uk
www.aprilproducts.co.uk
Tools Required
6
2.75
Drill bit
PH2 TYPE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the venturi 6 AQ9357LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aquadart venturi 6 AQ9357LS

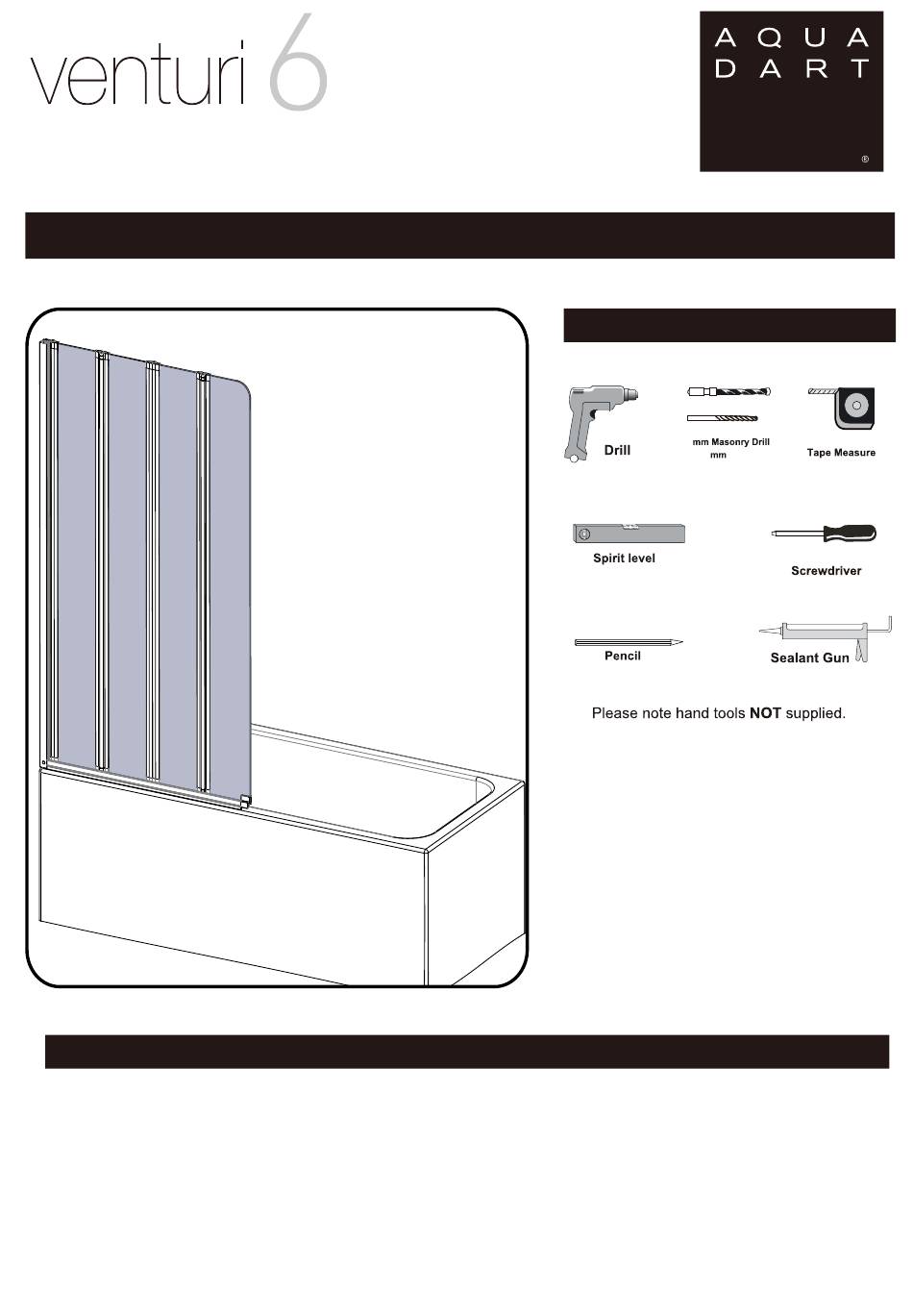

  • Page 1 AQ9357LS AQ9357RS Swiftseal Semi-Frameless 4 Fold Bath Screen INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS www.aquadart.co.uk www.aprilproducts.co.uk www.aprilproducts.co.uk Tools Required 2.75 Drill bit PH2 TYPE IMPORTANT This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation.
  • Page 2 COMPONENTS AND BOX CONTENTS Box Contents Description Description Wall Profile Arm Rail Wall Plug Bath Screen Assembly Bolt Fixing Screw M6x12 Fixing Screw ST 4x30 Cover Cap(For Rail Holder) Cover Cap Rail Holder Fixing Fixing Screw ST 4x10 Washers Cover Cup Bottom Rail Holder Washer A End Cap...
  • Page 3 Ф6 drill bit Ф3 drill bit : Position the wall profile (No 1 ) onto the bath , approximately 12-15mm from the outside bath edge (Diagram A). Step 1 : Level the profile with a spirit level, then mark the position using a pencil through the 3 pre-drilled screw holes in the Step 2 wall profile,drill the marked points using a 6mm masonry drill bit.
  • Page 4 24 HRS DO NOT USE THE Seal Inside ENCLOSURE FOR 24 HOURS AFTER SEALING Applying Silicone Sealant Sealing Inside Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. IMPORTANT: Do not apply sealant on inside of the bath.
  • Page 5 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
