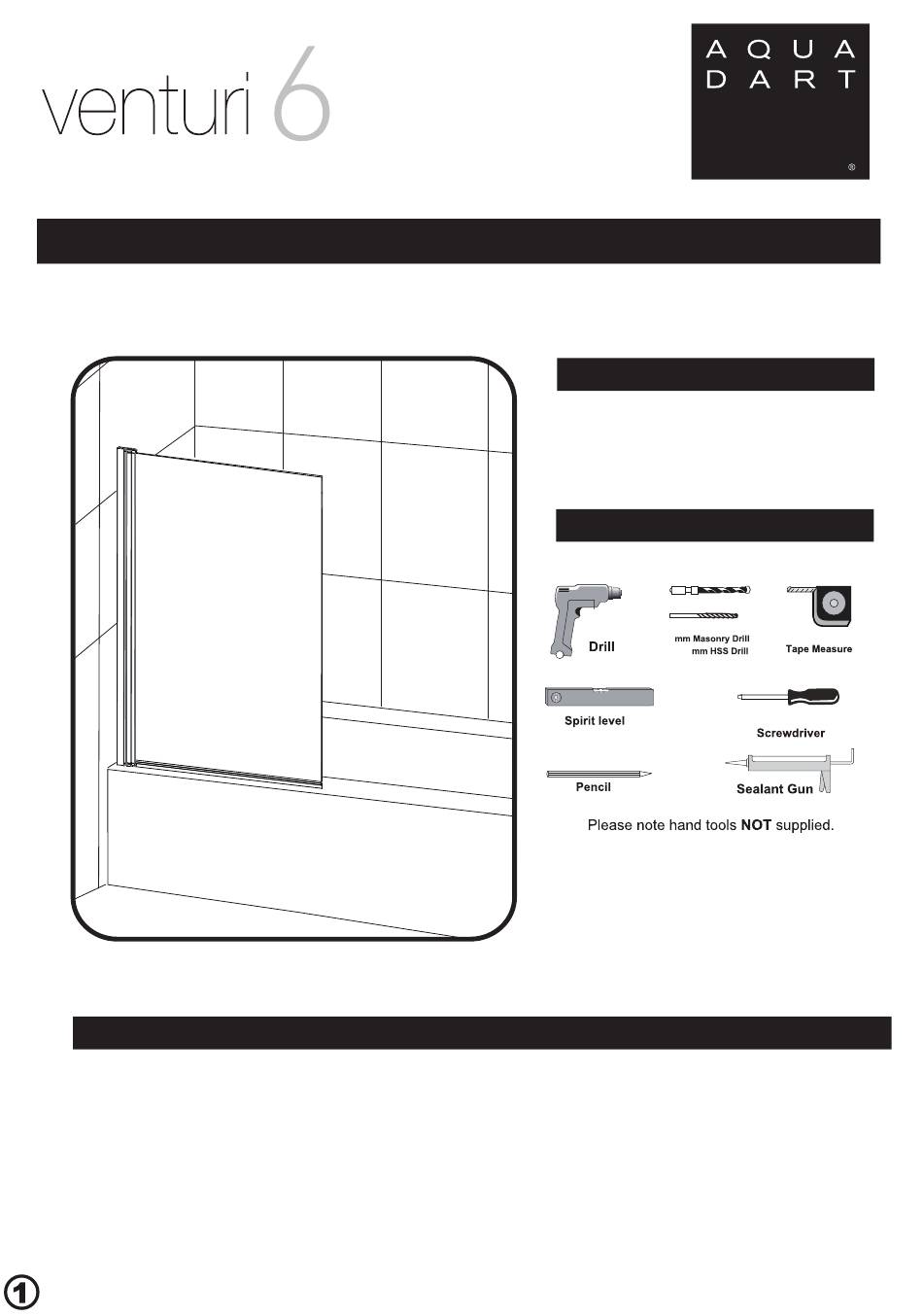

Single Square Bath Screen

INSTALLATION INSTRUCTIONS

Item Number:AQ9349BLK

This product should be installed by a suitably qualified and proficient person. The fitting instructions should be

followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future

injury.

These instructions and list of parts assume that installation is done against solid/tiled walls.

Please check this product for damage prior to starting the installation. No claims can be made after the product has

been fitted.

PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on

perfectly plumb walls and trays.

USE SAFETY EYE-WEAR WHEN DRILLING

www.aquadart.co.uk

www.aprilproducts.co.uk

Lifetime Product Guarantee

To activate your Product Guarantee please

visit www.aquadart.co.uk and complete

the online form.

Tools Required

2.75

PH2 TYPE

Table of Contents

Do you have a question about the venturi 6 AQ9349BLK and is the answer not in the manual?

Page 1 Item Number:AQ9349BLK Lifetime Product Guarantee To activate your Product Guarantee please visit www.aquadart.co.uk and complete the online form. Tools Required 2.75 PH2 TYPE IMPORTANT This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation.
Page 2 COMPONENTS AND BOX CONTENTS Box Contents Description Description Wall profile Screw ST 4x30 Upright profile Screw ST3.5 x 10 Frame profile Screw cap Brush strip Screw cup Pivot Hinge Hinge washer Screws ST 4x30 Moving panel Bottom Seal Wall plug...
Page 3 Ф 6 drill bit Ф2.75 drill bit Step 1: Position the wall profile (1) onto the bath , approximately 12-15mm from the outside bath edge to ensure that the screen runs along the inside edge of the bath rim. (A). Step 2: Level the profile with a spirit level , then mark the position using a pencil.
Page 4 Silicone the outside of the vertical wall post and also the outside of the bottom of the wall post as diagram shown below. Bottom seal NOTE : To ensure a watertight seal drop the silicone at the end of the bottom seal (9) (diagram h),also ensure the bottom seal is fully inserted into the base of the hinge as per the above diagram.
