Aquadart Rolla 8 Installation Instructions Manual

Sliding wetroom, enclosure & door
Hide thumbs Also See for Rolla 8:
Table of Contents

Advertisement

Quick Links

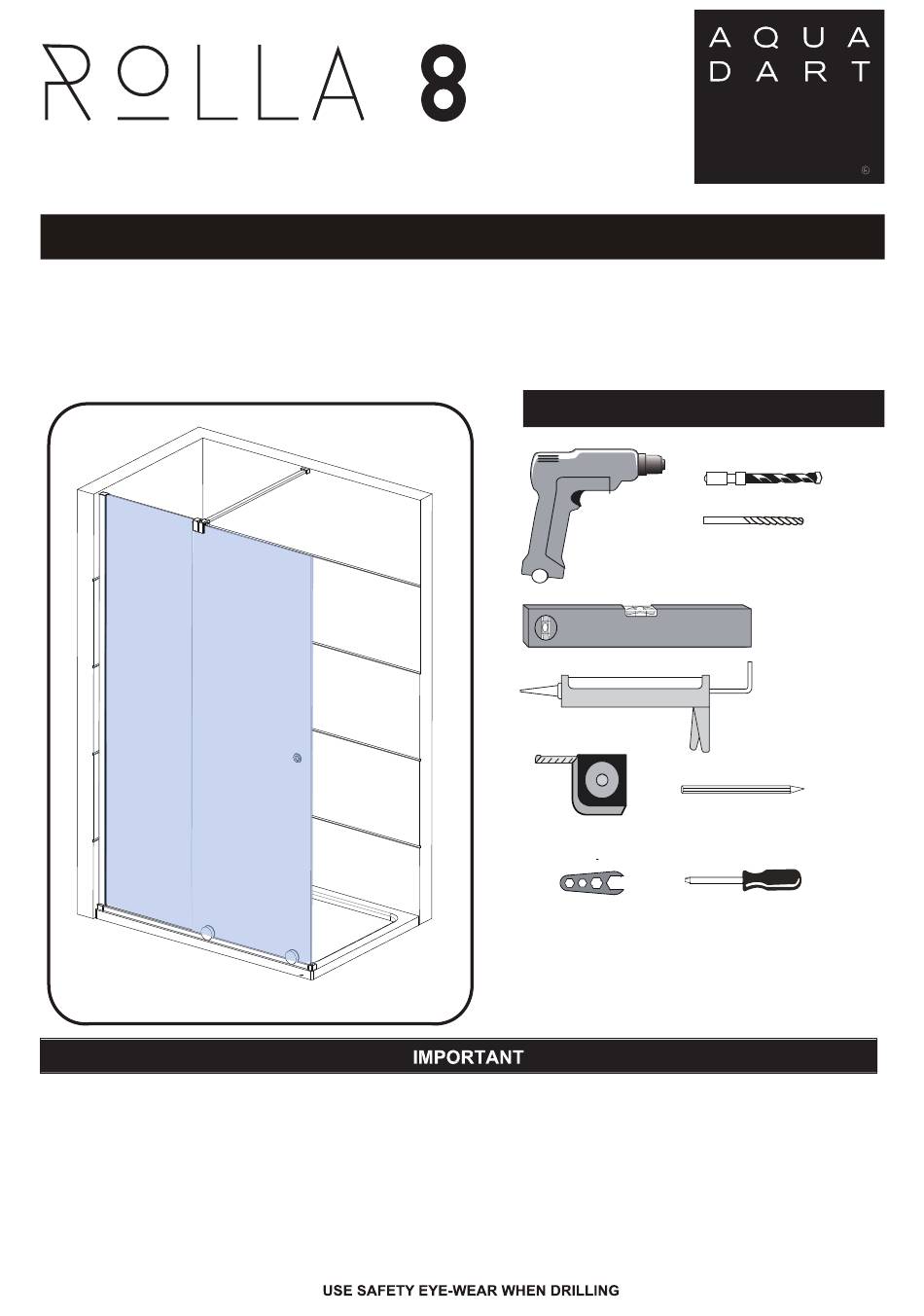

SLIDING WETROOM, ENCLOSURE & DOOR
INSTALLATION INSTRUCTIONS
Note: This instruction shows the installation process for all of our Rolla 8 configurations, please check below
which pages are relevant to your configuration before commencing work:
Sliding Wetroom refer to pages 1-8 • Sliding Door Recess refer to pages 9-15 and page 25
Sliding Door Enclosure refer to pages 16-24 and page 26 • Aftercare refer to page 27
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.

Tools Required

Drill
Tape Measure
PH2 TYPE
Hex Wrench
Screwdriver
Please note hand tools NOT supplied
www.aquadart.co.uk
6mm Masonry Drill
2.75mm HSS Drill
Spirit Level
Sealant Gun
Pencil
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rolla 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquadart Rolla 8

Summary of Contents for Aquadart Rolla 8

  • Page 1 INSTALLATION INSTRUCTIONS www.aquadart.co.uk Note: This instruction shows the installation process for all of our Rolla 8 configurations, please check below which pages are relevant to your configuration before commencing work: Sliding Wetroom refer to pages 1-8 • Sliding Door Recess refer to pages 9-15 and page 25 Sliding Door Enclosure refer to pages 16-24 and page 26 •...
  • Page 2 SLIDING WETROOM INSTRUCTION COMPONENTS AND BOX CONTENTS 31 30 29 28 Box Contents Description Description Wall Profile Top Cap Bottom Rail End Fixing Screw Cap Wall Profile Roller Set Fixed Panel Handle Door Panel Support Arm Wall Fixing Closing Bubble Seal ST Screw 4x30 Fixed Panel Fixing Seal Allen Grub Screw M5x6...
  • Page 3 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit www.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
  • Page 4 Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left hand opening 10mm Step 1.1 Fit the Bottom Rail End Cap L/R (Part 10) on the wall profile (Part 2) from the bottom. Place the Wall Profile onto the tray, roughly 10mm away from the front edge of the end cap.
  • Page 5 Outside Fixed Panel/Face Inside 0-20mm adjustment Step 2.1 Carefully lift the fixed panel (Part 3) and insert into the wall Profile groove,it allows 0-20mm for the adjustment. Once the fixed panel is in required adjustment, place the bottom strip(Part 11) onto the tray and mark a line onto the profile.
  • Page 6 IMPORTANT Step 3.1 Insert the bottom rail (Part 12) into the end cap (Part 10) （Diagram 3.1）. Step 3.2 Ensure the bottom rail is level and straight then secure it onto the tray using the bottom rail end fixing(Part 16) and screw ST4x40(part 17).Then insert the black soft head into the hole on the bottom rail end fixing(Diagram 3.2) Step 3.3 Assemble the bottom rollers onto the door panel.Ensure the gasket has been used on both faces of the glass.
  • Page 7 Door panel Step 3.6 Ensure the glass clamp is in about 10mm away from the fixed panel edge(Diagram 3.6) then attach it onto the fixed panel using M10 x6 grub screw(Part 27) Step 3.7 Fit the support arm wall fixing onto the support arm bar and place it onto the wall in required position.Measure the dimension from the glass clamp to the wall fixing to get dimension Y.Cut the support arm to the required length X according to the formula X=(L-Y)+25mm(L is the original length of the support arm bar,1057mm) Step 3.8 Fit the support arm wall fixing onto the support arm bar before inserting the support arm bar onto the glass clamp,...
  • Page 8 Step 3.15-Cut the seal Step 3.15 We do not recommend fitting the vertical seal (Part 7 ) onto the fixed panel as the overlap between the fixed panel and door panel will be sufficient to avoid any leaks.If you do decide to fit vertical seal please ensure you cut it as detailed in diagram 3.15.
  • Page 9 SLIDING DOOR INSTRUCTION COMPONENTS AND BOX CONTENTS 26 25 24 23 Box Contents Description Description Support Arm Wall Fixing Wall Profile Top Cap ST Screw 4x30 Fixed Panel Wall Profile Allen Grub Screw M5x6 Fixed Panel Wall Plug Door Panel Glass Clamp Closing Seal Grub Screw M5x6...
  • Page 10 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit www.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
  • Page 11 Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left hand opening.IMPORTANT:if you are fitting the optional closing seal please refer to the steps on page 25. 10mm Step 1.1 Fit the Bottom Rail End Cap L/R (Part 10) on the fixed panel wall profile (Part 2) and closing wall profile(Part 29) from the bottom.
  • Page 12 Outside Inside 0-20mm adjustment Step 2.1 Insert the bottom rail into the end cap L(Part 10) fitted on the fixed panel wall profile (Diagram 2.1) Step 2.2 Press the bottom strip end cap R(part 10) onto the closing profile (part 29),then sit the closing wall profile onto the bottom rail against the holes drilled on the wall.Secure the closing wall profile onto the wall using ST 4x30 screws x4(Part 9).
  • Page 13 Step 3.1 Assemble the bottom rollers onto the door panel.Ensure the gasket has been used on both faces of the glass. Step 3.2 Carefully lift the door panel and assemble onto the bottom rail, fit the glass clamp((part 20) to hold the fixed panel and door panel in place.
  • Page 14 3.10 3.11 Step 3.4 Ensure the glass clamp is in about 10mm away from the fixed panel edge(Diagram 3.4) then attach it onto the fixed panel using M10 x6 grub screw(Part 24) Step 3.5 Fit the support arm wall fixing onto the support arm bar and place it onto the wall in required position.Measure the dimension from the glass clamp to the wall fixing to get dimension Y.Cut the support arm to the required length X according to the formula X=(L-Y)+25mm(L is the original length of the support arm bar,1057mm) Step 3.6 Fit the support arm wall fixing onto the support arm bar before inserting the support arm bar onto the glass clamp,...
  • Page 15 Step 3.13-Cut the seal Step 3.13 We do not recommend fitting the vertical seal (Part 7 ) onto the fixed panel as the overlap between the fixed panel and door panel will be sufficient to avoid any leaks.If you do decide to fit vertical seal please ensure you cut it as detailed in diagram 3.15.
  • Page 16 SLIDING ENCLOSURE INSTRUCTION COMPONENTS AND BOX CONTENTS 25 24 23 22 Box Contents Description Description Grub Screw M10 x 6 Wall Profile Top Cap Glass Clamp Screw Cap Wall Profile Soft Head Fixed Panel Grub Screw M10 x6 Door Panel Closing Seal Stopper Screw Cover Fixed Panel Fixing Seal...
  • Page 17 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit www.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
  • Page 18 Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left hand opening.IMPORTANT:if you are fitting your Sliding Enclosure with our optional corner post please refer to the steps on page 26. 10mm Step 1.1 Fit the Bottom Rail End Cap L/R (Part 10) on the wall profile (Part 2) from the bottom.
  • Page 19 Outside Fixed Panel/Face Inside 0-20mm adjustment Step 2.1 Carefully lift the fixed panel (Part 3) and insert into the wall Profile groove,it allows 0-20mm for the adjustment. Once the fixed panel is in required adjustment, place the bottom strip(Part 11) onto the tray and mark a line onto the profile.
  • Page 20 Step 3.1 Place the side panel Wall Profile (part 33) onto the tray,roughly 10mm away from the front edge of the end cap. Level the wall profile using a spirit level then mark the profile through the pre-drill holes on the wall profile (Diagram 3.1) Step 3.2 Remove the wall profile and drill the marked points using a 6mm masonry drill bit, once this is done insert the wall...
  • Page 21 Step 5.1 Assemble the bottom rollers onto the door panel,ensure the gasket has been used on both faces of the glass.(Diagram 5.1) Step 5.2 Carefully lift the door panel and assemble onto the bottom rail, fit the glass clamp(part 18) to hold the fixed panel and door panel in place.
  • Page 22 T-piece connector for side panel support bar Step 6.1 Ensure the glass clamp is in about 10mm away from the fixed panel edge(Diagram 6.1) then attach it onto the fixed panel using M10 x6 grub screw(Part 20) Step 6.2 Fit the support arm wall fixing onto the support arm bar and place it onto the wall in required position.Measure the dimension from the glass clamp to the wall fixing to get dimension Y.Cut the support arm to the required length X according to the formula X=(L-Y)+25mm(L is the original length of the support arm bar,1057mm) Step 6.3 Fit the support arm wall fixing onto the support arm bar before inserting the support arm bar onto the glass clamp,...
  • Page 23 Step 8.1 Fit a soft head (part 22) onto the roller stopper (part 25),then slide the door panel to ensure it touches the side panel glass,fit the roller stopper onto the door panel,ensure the soft head on the roller stopper touches the glass clamp then secure the roller stopper onto the door panel using M10x6 grub screw(Diagram 8.1) Step 8.2 Press the closing seal (Part 5) into the wall profile channel,then fit the wall profile top caps(part 1) onto the wall profiles(Diagram 8.2)
  • Page 24 Applying Silicone Sealant 24 HRS Sealing Inside Seal from the top of the wall profile to the bottom on the INSIDE DO NOT USE THE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. Sealing Outside 24 HOURS AFTER Seal from the top of the wall profile to the bottom between the...
  • Page 25 CLOSING SEAL INSTRUCTION Note: Use the closing seal when the door is closed against a window,the product can be constructed either way up, for left or right hand opening.This instruction is showing a Left hand opening. Follow the step 3.13 on page 15 to fit the closing seal as shown on the diagram abvoe. Use the closing seal to replace the part 29 when the door closing against the window.
  • Page 26 OPTIONAL CORNER POST INSTRUCTION Note: the product can be constructed either way up, for left or right hand opening.This instruction is showing a Left hand opening. Follow the steps from 4.1 on page 20 to fit the optional corner post as the instructions below,ignore the parts 35,36 and 37 when the door is fitted with a corner post.
  • Page 27 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
