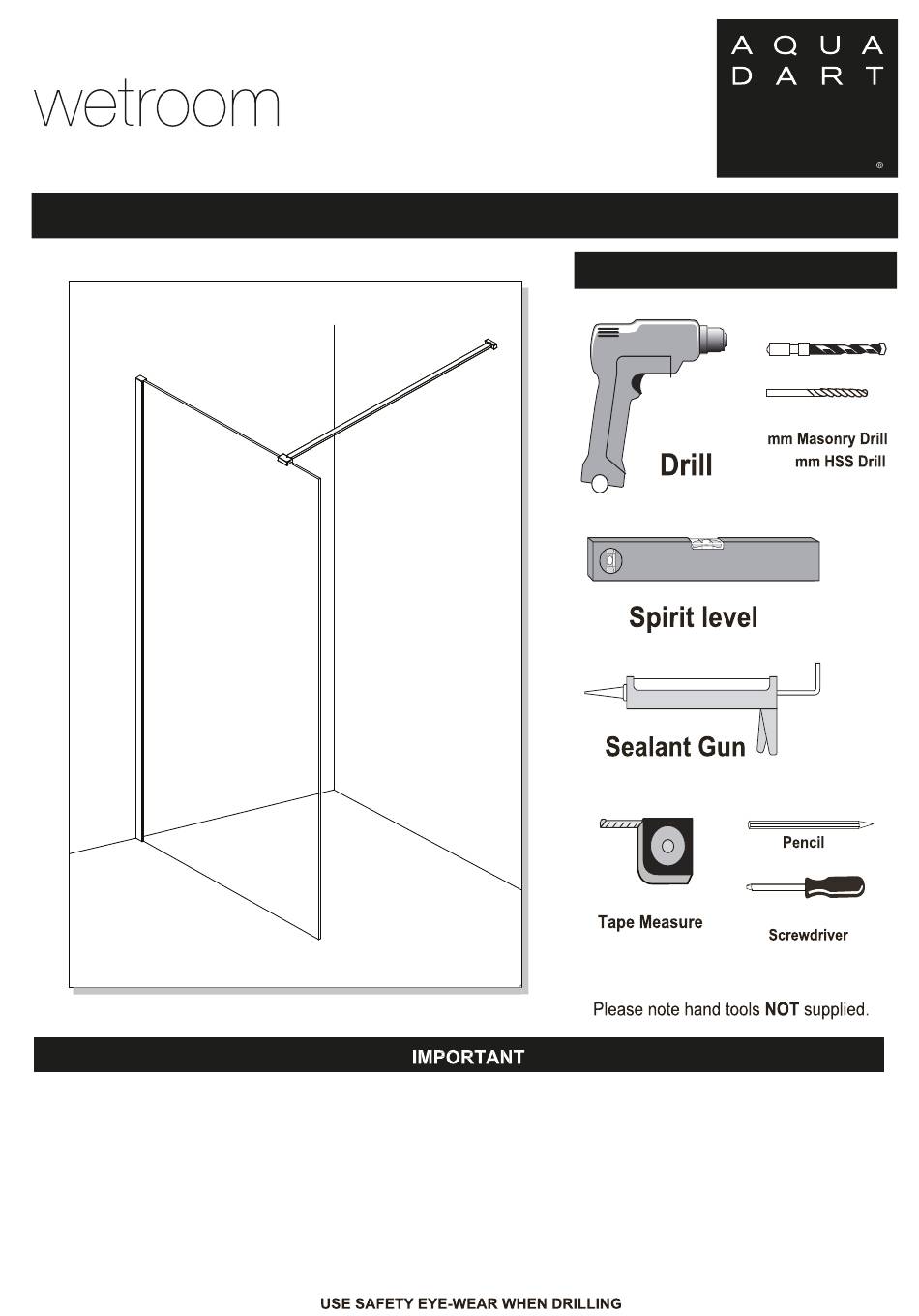

INSTALLATION INSTRUCTIONS
www.aquadart.co.uk
Tools Required
6
2.75
PH2 TYPE
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aquadart wetroom 8
Summary of Contents for Aquadart wetroom 8
- Page 1 INSTALLATION INSTRUCTIONS www.aquadart.co.uk Tools Required 2.75 PH2 TYPE This product should be installed by a suitably qualified and proficient person. The fitting instructions should be followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future injury.
-
Page 2: Table Of Contents
COMPONENTS AND BOX CONTENTS Optional Floor Channel Box Contents Description Description Support Arm Vertical Seal Glass Panel Wall Profile Top Cap Screw ST4×30 Wall Profile Floor Channel Wall Plugs Floor Channel End Cap Screw ST4×30... -
Page 3: Support Arm
Wall Bracket IMPORTANT - Missing Components Please check this product for missing components prior to installation. www.aquadart.co.uk For spare parts visit IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction. - Page 4 FIX FRONT PANEL WALL PROFILE Step 1 Place the wall profile onto the edge of the tray roughly 10mm from the front of the shower tray edge Ensure the wall profile is level to the wall If the panel is fitted without a tray, please ignore Diagram A. Step 2 Mark the position for fixing the wall profile to the wall through the 4 pre drilled holes in the wall profile Diagram B Step 3...
-
Page 5: Glass Panel
FIX FRONT GLASS PANEL 0~10MM Step 5. Push the glass panel onto the wall profile . INSIDE Step 6. After the glass panel is in its final position press the seal into the wall profile securing from bottom to top DiagramG... - Page 6 FIX WALL BRACKET Step 7. Measure the support bar tube length then cut it to the required size (Diagram H). Step 8. Fit the support bar onto the glass panel, ensure the support bar is level then mark the wall fixing hole onto the wall (Diagram I). Step 9.
- Page 7 FIX FRONT PANEL SUPPORT BAR Step 12. Fit the top cap onto the wall profile (Diagram P) T-piece connector for end panel support bar...
-
Page 8: Floor Channel
FIX OPTIONAL FLOOR CHANNEL 0~10MM Step 1. Push the glass panel onto the wall profile (Diagram A). Step 2. Put the floor channel onto the tray then mark a line onto the profile cut the profile through marked line to get required length Diagram B Step 3. - Page 9 APPLYING SILICONE SEALANT Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. 24 HOURS AFTER Sealing Outside Seal from the top of the wall profile to the bottom between the...
- Page 10 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
