Removal of Outer Panels

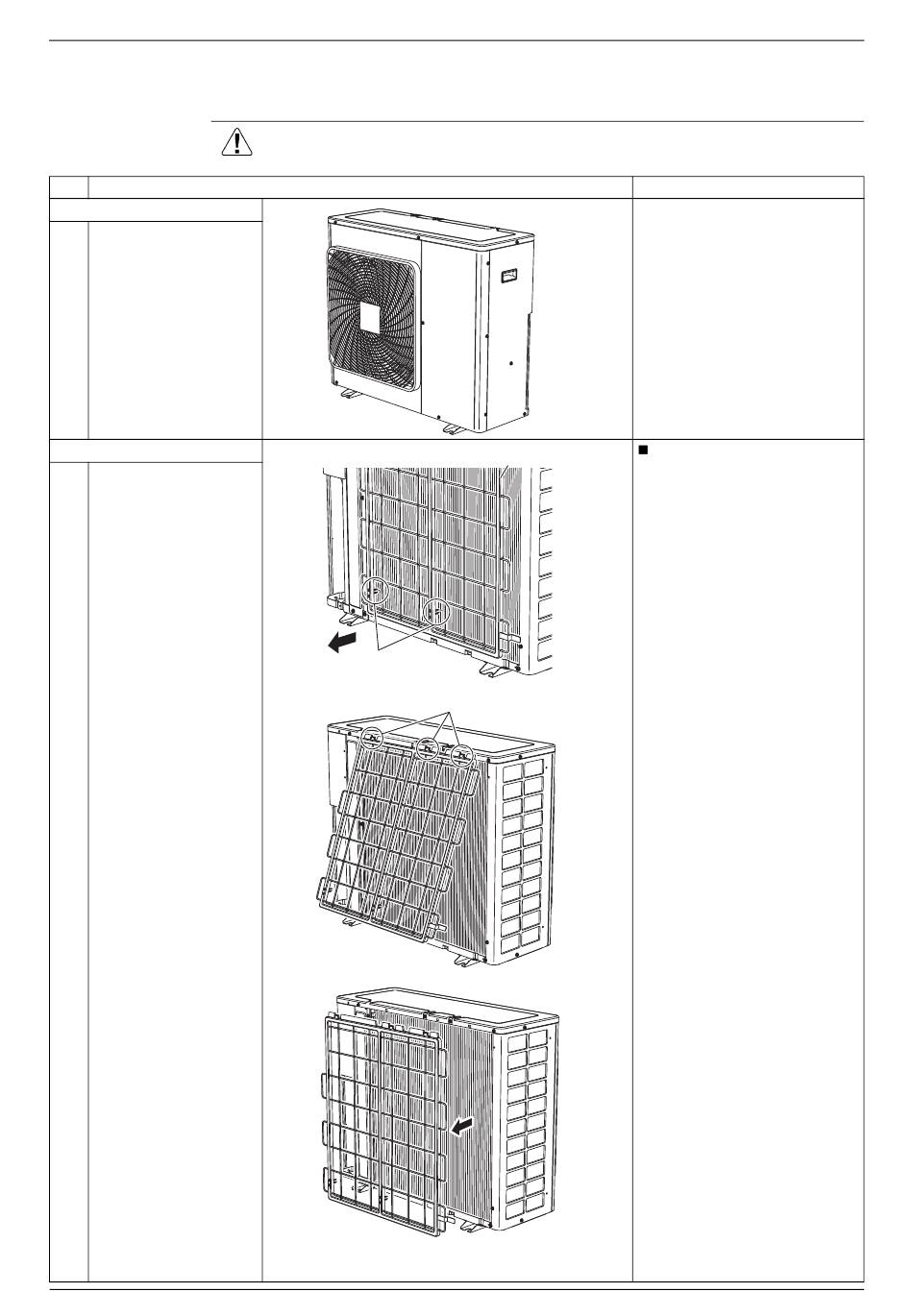

1. Removal of Outer Panels
Procedure
Step
1. Appearance features
2. Remove the suction grille.
Unfasten the 2 hooks at
1
the bottom.
2 Slide the suction grille
downward to unfasten
the 3 top hooks.
Remove the suction
3
grille.
2
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Rear side
Hook
(R6182)
Suction grille
(R16916)
Hook
(R16917)
(R6372)
Si00-776
Points
The hooks are secured in
the clearances of the
outdoor heat exchanger fins.
Removal Procedure
