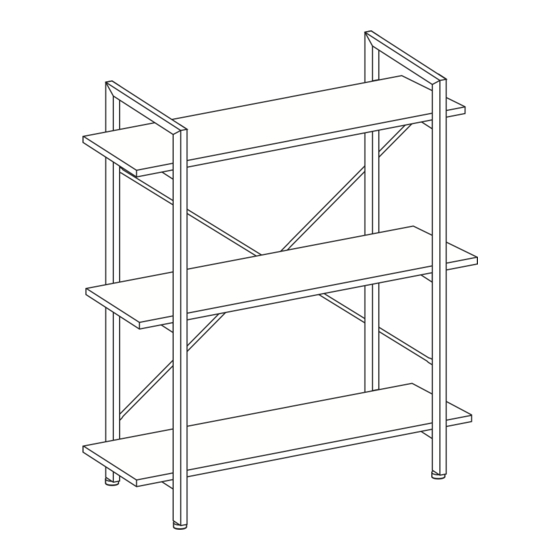

Porto Small Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A1
A2
25mm
40mm
30mm
screw x12
screw x6
screw x4
C
D
40mm
nut
screw x6
x4

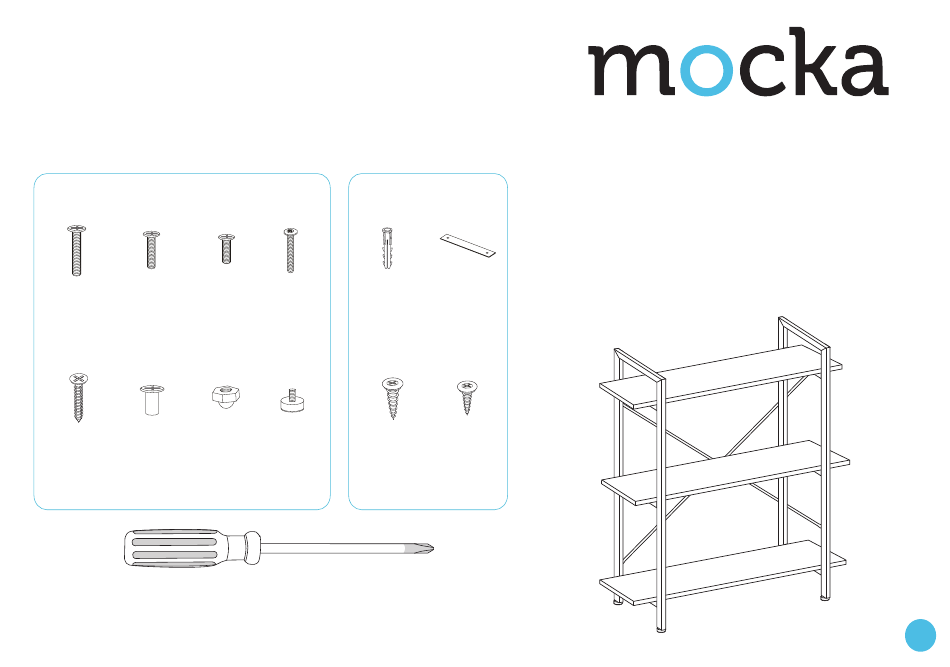

Hardware Supplied
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
G
A3
B
wall
22mm
anchor x2
screw x1
E
F1
I
nut
25mm
feet
x1
x4
screw x2
Phillips screwdriver required
H
WARNING:
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
strap x2
F2
14mm
screw x2
Wall Strap
Any furniture that is not anchored to a wall has the potential to tip
1
