Mocka Portia Console Table Assembly Instructions

Portia Console Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

adjuster

allen key

bolt

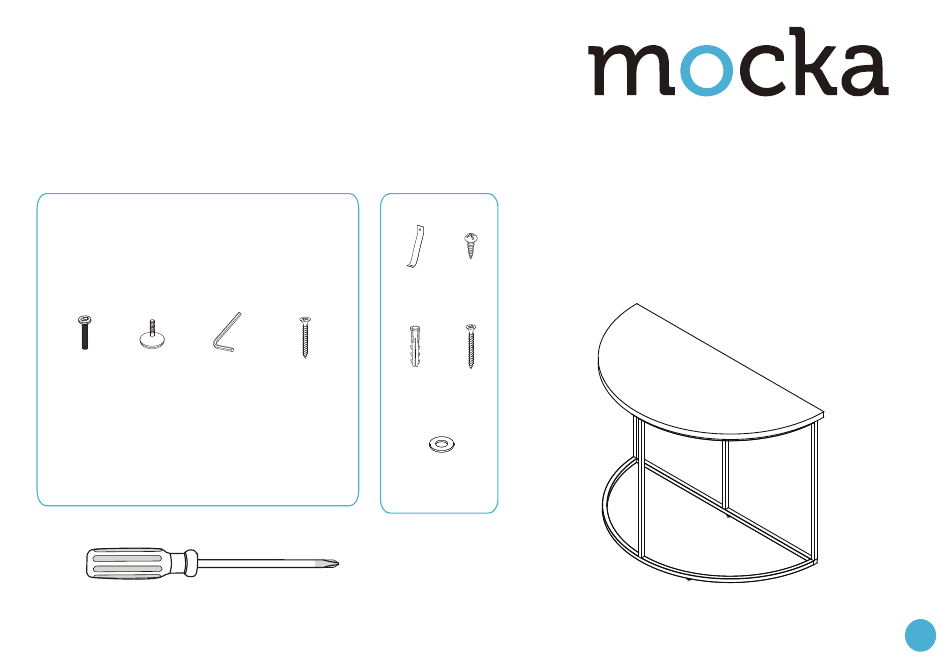

Hardware Supplied

Phillips screwdriver required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz | mocka.com.au

| PO BOX 6171, Maroochydore, QLD, 4558

safety

strap x1

screw

anchor

WARNING:

over in certain circumstances, i.e. if a child attempts to climb up on the furniture

or in the event of an earthquake. Accordingly, we recommend that all furniture

is anchored to a wall. We supply a free safety wall anchor with all furniture sold

and we recommend these are used to prevent your product tipping. The fixing

device provided should fit most wall types, but please note that different wall

materials may require different fixing devices from those supplied.

screw

wall

screw

washer

Wall Strap

Any furniture that is not anchored to a wall has the potential to tip

Table of Contents

Do you have a question about the Portia Console Table and is the answer not in the manual?

Page 1 Portia Console Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Page 2 Portia Console Table Assembly Instructions Attach panel [2] to 3x panels [3] with 4x bolts (A). Attach panel [4] to 3x panels [3] and with 4x bolts (A). Tighten with an Allen key (C). Tighten with an Allen key (C).
Page 3 Portia Console Table Assembly Instructions Attach panels [2] to panel [1] with 4x screws (D). Tighten with a Attach 1x safety strap (V) to panel [1] as shown using 1x screwdriver. Insert the 5x adjusters (B) into panel [4] as shown.
Page 4 Portia Console Table Assembly Instructions Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y).
