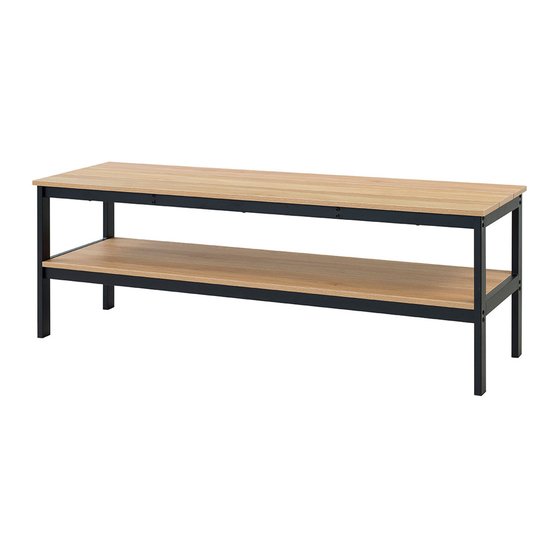

Porto Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
50mm
screw x22
B
30mm
screw x24

Hardware Supplied

Phillips screwdriver required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
