Porto Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A1
A2
40mm
30mm
screw x16
screw x8
F1
E
nut
25mm
14mm
x1
screw x2
screw x2
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
A3
B
C
25mm
40mm
22mm
screw x4
screw x8
screw x1
F2
G
H
wall
safety
anchor x2
strap x2

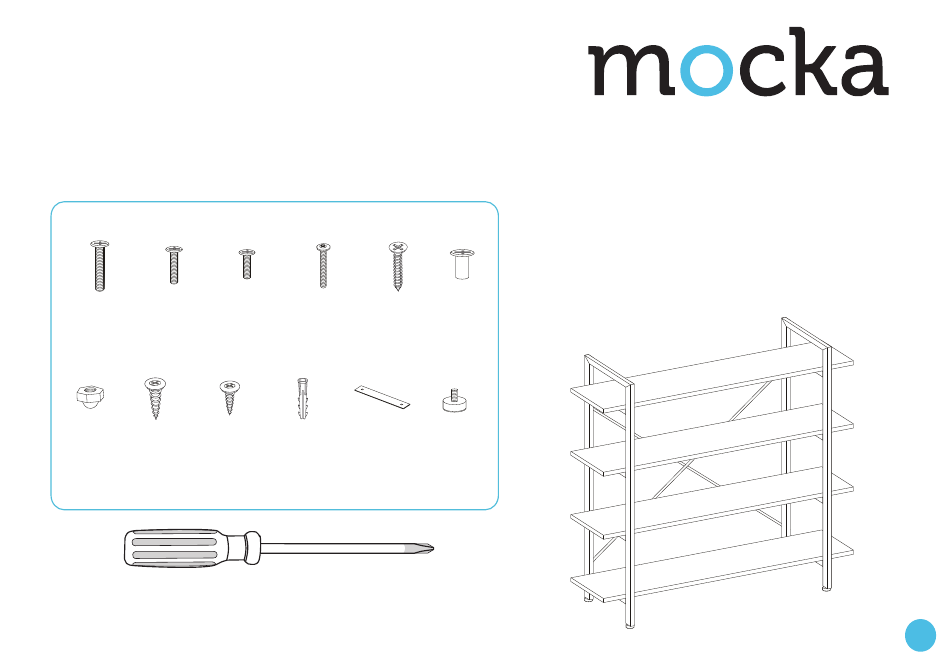

Hardware Supplied
Phillips screwdriver required
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
D
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
nut
x4
I
feet
x4
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Porto Bookcase
Summary of Contents for Mocka Porto Bookcase
- Page 1 Porto Bookcase Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Porto Bookcase Assembly Instructions Attach 4x feet (I) to the bottoms of the side panels. Connect the cross bars using 1x 22mm screw (B) and 1x nut (E). Attach the cross bars to the side panels as shown using 4x 25mm screws (A3) and 4x nuts (D).
- Page 3 Porto Bookcase Assembly Instructions Attach the centre panels to the side panels using 8x 30mm screws Please Note: Lay down unit for easy assembly. (A2). Tighten with a screwdriver. Attach the shelves [1] to the centre panels and secure from underneath with 16x 40mm screws (A1).
- Page 4 Porto Bookcase Assembly Instructions Secure the shelves with 8x 40mm screws (C) from underneath. Tighten Lift the completed unit into place, do not drag. Attach 2x safety straps (H) with a screwdriver. to the back of the top shelf as shown, and secure with 2x 14mm screws (F2).
