Porto Corner Shelves
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
50mm
25mm
screw x20
screw x2

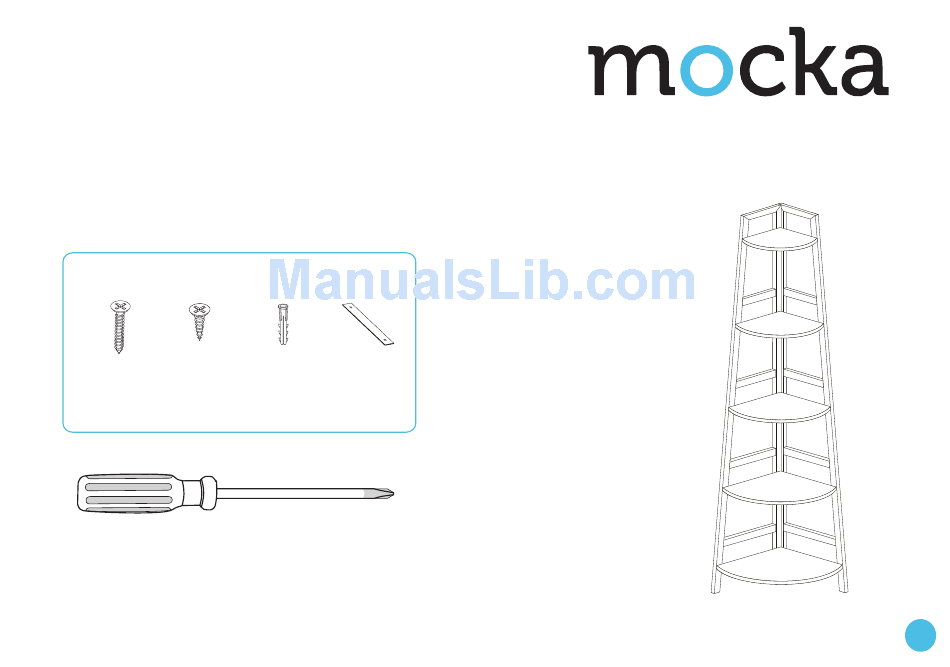

Hardware Supplied

mocka.co.nz | mocka.com.au
C
D
wall plug
safety
x2
strap x2
Phillips screwdriver required
WARNING:
Any furniture that is not anchored
to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb
up on the furniture or in the event of an
earthquake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a
free safety wall anchor with all furniture sold
and we recommend these are used to prevent
your product tipping. The fixing device
provided should fit most wall types, but please
note that different wall materials may require
different fixing devices from those supplied.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Porto and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Porto

  • Page 1 Porto Corner Shelves Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
  • Page 2 Porto Corner Shelves Assembly Instructions Attach shelf panels [2], [3] and [4] to the main unit as shown and secure Attach shelf panel [1] into the unit and secure with 4x 50mm screws (A). with 12x 50mm screws (A). Tighten with a screwdriver.
  • Page 3 Porto Corner Shelves Assembly Instructions Attach the other end of the safety straps (D) to the wall using 2x wall plugs (C) and 2x 25mm scews (B). Tighten with a screwdriver. You’re done, enjoy! mocka.co.nz | mocka.com.au...
