Porto Desk
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt & nut
35mm
30mm
set x20
bolt x2
bolt x3
F
G
dowel
25mm
x16
screw x2

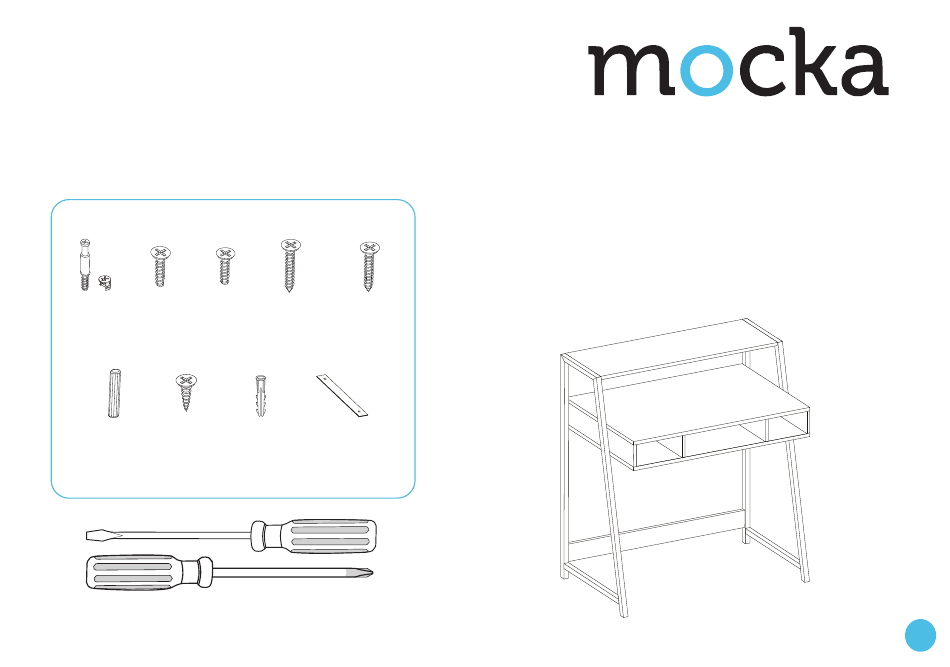

Hardware Supplied

Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
E
70mm
60mm
screw x4
screw x14
H
I
wall plug
safety
x2
strap x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a
free safety wall anchor with all furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those supplied.
