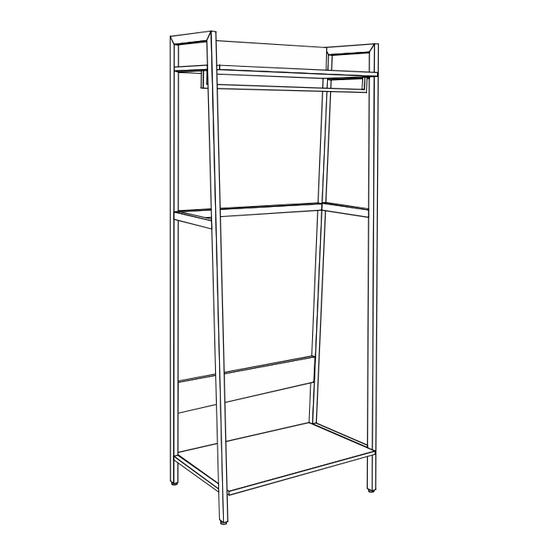

Porto
Full Length Hanger
Thank you for purchasing a Mocka
Porto Full Length Hanger
manufacturer's assembly instructions in detail to ensure the safety
s
features of the
Hanger i
not compromised.
A
B
screw 25mm
screw 30mm
x 2
x2
Hardware Supplied
D
E
wall strap
screw 25mm
x2
x2
Wall Strap
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au
. Please follow the
C
H
screw 50mm
feet
x 16
x4
F
wall plug
x2
WARNING:
Any furniture that is not anchored to a wall has the  potential to tip
over in certain circumstances,  i.e.  if  a  child attempts to climb up on the
furniture  or  in  the  event  of  an earthquake.  Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with all
furniture  sold  and  we  recommend  these  are  used  to  prevent  your  product
tipping. The fixing device provided should fit most wall types, but please note
that  different  wall  materials  may  require  different  fixing  devices  from  those
supplied.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Porto and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Porto

  • Page 1 Porto Full Length Hanger Thank you for purchasing a Mocka Porto Full Length Hanger . Please follow the WARNING:  Any furniture that is not anchored to a wall has the  potential to tip manufacturer’s assembly instructions in detail to ensure the safety over in certain circumstances,  i.e.  if  a  child attempts to climb up on the...
  • Page 2 Porto Full Length Hanger Insert 4 x feet (H) into steel frame [5] as shown. Attach panels [4] and [2] together and secure with 2 x screws (C).Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
  • Page 3 Attach steel frame [5] to panels [4], [2], [3] and [1] and secure with Attach rail to assembled frame as shown and secure with 2 x screws (A). 14xscrews (C) and 2 x screws (B). Attach wall strap (E) to steel Tighten with a screwdriver. frame [5].Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
  • Page 4 2 x safety strap (E).Fasten to the wall using 2 x wall anchors (F) and 2 x screws (D). En sure unit is balanced and steady before use. mocka.co.nz I mocka.com.au...
