D
Placing
In order to place the Charge Point in its final location, please follow the next steps:
1 — R E M O V I N G T H E C H A R G E P O I N T F R O M PA L L E T
The Charge Point is mounted on a pallet so as to do a safe transport. It has to be
removed before to installation.

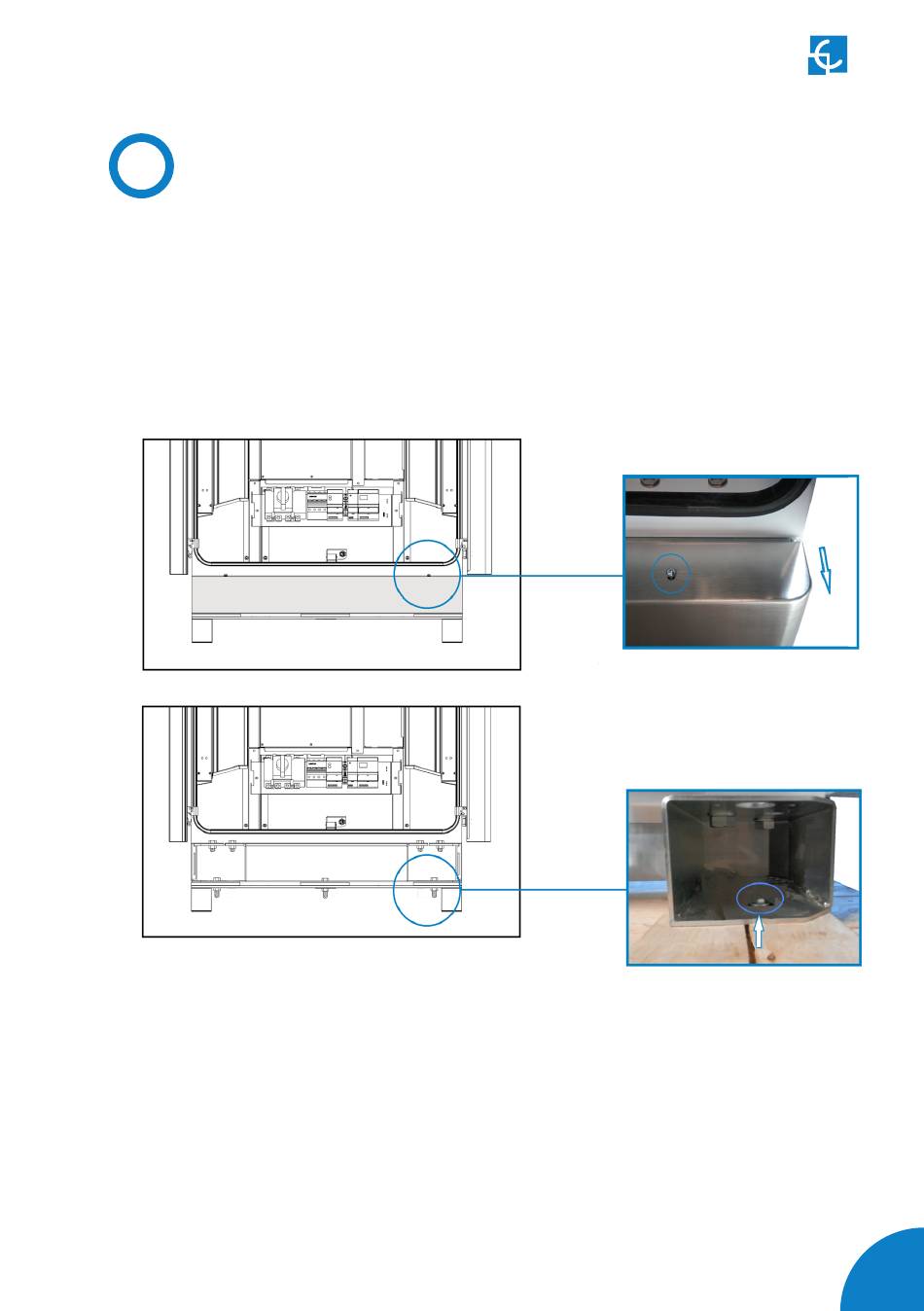

Steps:
1- Remove the screws from the Decorative front panel (on both sides) and pull it
outwards.
2- Once the Decorative front panel is removed, locate the screws that are fixing the
pallet. Remove the screws with a 19 mm spanner tool.
Step 1
Step 2
20
