Raption 150 Compact Installation Manual
FOUNDATION MEASUREMENTS
TYPE OF TERRAIN
SOFT
COMPACT
VERY COMPACT
VERY COMPACT AND CONCRETE
SLAB
Note: In the event of any doubt about the terrain regarding the installation of the
Charge Point, due to the weight and dimensions, it will be necessary to define a final
solution to install the unit. It must be confirmed by a specific technical project made for
an architectural firm prior to its installation.
17

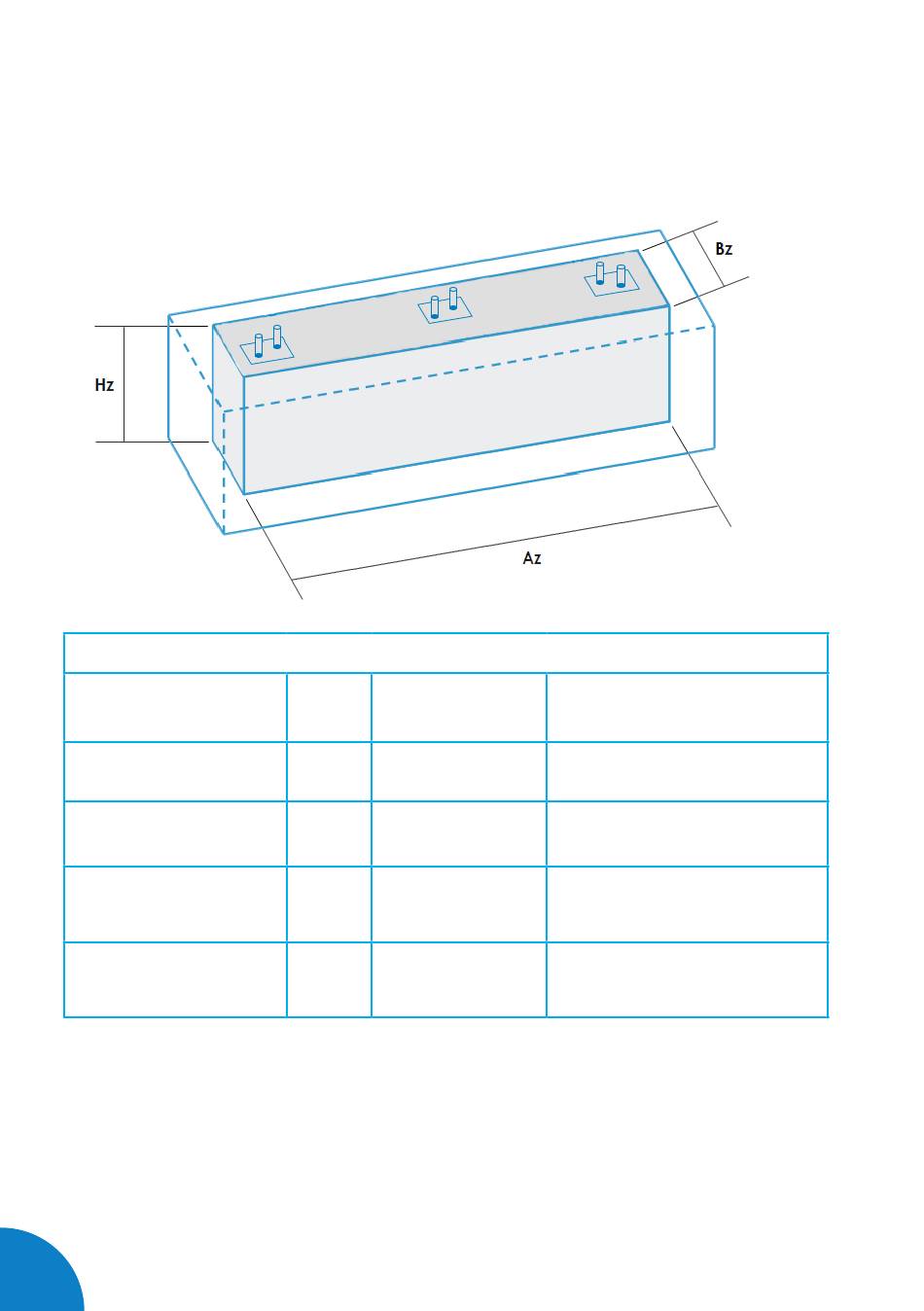

ORIENTATIONAL FOUNDATIONS FOR RAPTION
Ck
FOUNDATION SIZE
(kg/cm
)
(Az x Bz x Hz) cm
2
5
130 x 65 x 65
12
130 x 60 x 55
20
130 x 60 x 45
20
130 x 60 x 40
COMMENTS
For example vegetal not compact terrain
For example mix vegetable land with
engraved compactors
For example mix sand ground with very
compacted and paved gravel asphalt
Minimum slab edge 10cm of concrete
HM - 100
