Awntech RF22 Owner's Manual & Installation Instructions

OWNER'S MANUAL & INSTALLATION INSTRUCTIONS
WARNING: Adult Assembly Required
WARNING: Assembly Kit Contains Parts with Sharp Points, Sharp Edges, and Small Parts That Can Present
Choking Hazards to Children.
WARNING: Components Are Packed in Plastic Bags that are a Suffocation Hazard.
NOTE: Please inspect the parts for damage during shipping and/or for any missing items. If you suspect that there
may be damage or a shortage, contact us and we will send replacement parts if needed. At this time, visualize how
the components fit together and make sure that you have identified the various parts.
Models with Valance:
RF22, EF1030, EF1836, EF23, EF2442, EF24, CF32, CF33, CF34, CF43, CF44
Awning size
3
4
5
6
7
8
9
10
11
OUR AWNINGS ARE DESIGNED 4.5" WIDER THAN STANDARD WINDOW/DOOR OPENINGS SO THEY ANCHOR TO THE
STUDS AROUND THE WINDOW OR DOOR. EXAMPLE: RR22-5 IS FOR 5'-0" WIDE WINDOW. IT MEASURES 64.5"
WIDE, 31" TALL, (24" PLUS 7" VALANCE AND 24" DEEP (PROJECTION)
There is a variety of building wall surfaces; Awntech does not supply the hardware to install your awning. You will
need to purchase installation hardware at your local hardware store. We have advised you on different surface
applications below:
CONCRETE BLOCK WALLS: 3/8" x 3" Masonry anchor bolts or Tapcon Screws plus Washers (1 per bracket)
WOOD OR SIDING: 3/8" x 3" Lag Screws plus Washers (1 per bracket)
OTHER STRUCTURES: CONSULT A PROFESSIONAL
1

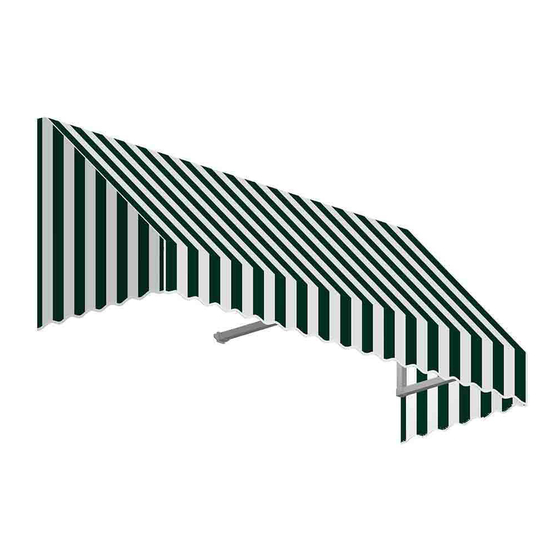

San Francisco Style Awning
Width in inches
40.5
52.5
64.5
76.5
88.5
100.5
112.5
124.5
136.5
Awning Size Width to Inches
12 148.5
13 160.5
14 172.5
15 184.5
16 196.5
17 208.5
18 220.5
19 232.5
20 244.5
