OWNER'S MANUAL & INSTALLATION INSTRUCTIONS
WARNING: Adult Assembly Required
WARNING: Assembly Kit Contains Parts with Sharp Points, Sharp Edges, and Small Parts That Can Present Choking
Hazards to Children.
WARNING: Components Are Packed in Plastic Bags that are a Suffocation Hazard.
NOTE: Please inspect the parts for damage during shipping and/or for any missing items. If you suspect that there
may be damage or a shortage, contact us and we will send replacement parts if needed. At this time, visualize how
the components fit together and make sure that you have identified the various parts.
Important Installation Information :
New Orleans frame must be installed on the wall as there is no connecting part
between Spear Arm (SA)and Top Bar (TB).
Please read instructions fully before installing.
WARNING: CHOAKING HAZARD – Contains small part, and Sharp metal. CAUTION: When you are opening the box
keep children away. Be extremely cautious around children.
Models with Valance: NO21, NO32, NO43
Awning size
3
4
5
6
7
8
9
10
11
OUR AWNINGS ARE DESIGNED 4.5" WIDER THAN STANDARD WINDOW/DOOR OPENINGS SO THEY ANCHOR TO THE
STUDS AROUND THE WINDOW OR DOOR. EXAMPLE: NO21-5 IS FOR 5'-0" WIDE WINDOW. IT MEASURES 64.5"
WIDE
1

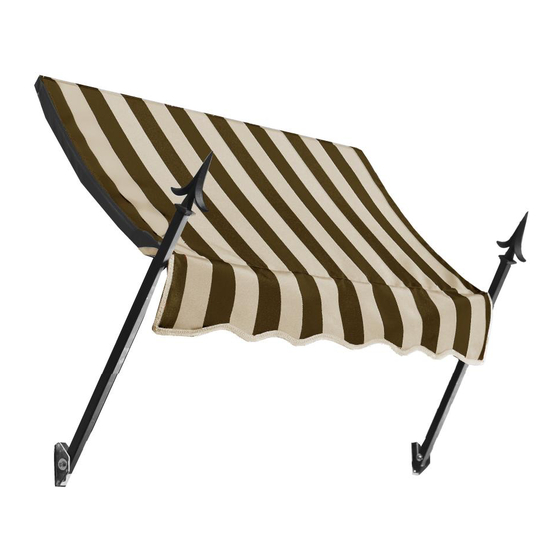

New Orleans Style Awning
Width in inches
40.5
52.5
64.5
76.5
88.5
100.5
112.5
124.5
136.5
Awning Size
Width to Inches
12
148.5
13
160.5
14
172.5
15
184.5
16
196.5
17
208.5
18
220.5
19
232.5
20
244.5
Advertisement
Related Manuals for Awntech NO21
Summary of Contents for Awntech NO21
- Page 1 100.5 208.5 112.5 220.5 124.5 232.5 136.5 244.5 OUR AWNINGS ARE DESIGNED 4.5” WIDER THAN STANDARD WINDOW/DOOR OPENINGS SO THEY ANCHOR TO THE STUDS AROUND THE WINDOW OR DOOR. EXAMPLE: NO21-5 IS FOR 5’-0” WIDE WINDOW. IT MEASURES 64.5” WIDE...
- Page 2 There is a variety of building wall surfaces; Awntech® does not supply the hardware to install your awning. You will need to purchase installation hardware at your local hardware store. We have advised you on different surface applications below: CONCRETE BLOCK WALLS: 3/8” x 3” Masonry anchor bolts or Tapcon Screws plus Washers (1 per bracket) WOOD OR SIDING: 3/8”...
- Page 3 STEP 2: The Top Bar (TB) must be installed first. Mount Provided Z-Brackets to surface, and insert TB into brackets. The C-Channel must be close to the wall. Before installing the TB you must make sure that there is enough space below to install BP.
- Page 4 Height Height Height Height Valance Valance Valance Valance NO21 NO21 NO21 NO21 24 24 24 24 19 19 19 19 16 16 16 16 NO32 NO32 NO32 NO32 36 36 36 36 25 25 25 25...
- Page 5 STEP 4: Install the NC (left and right) with arrow facing upwards. Secure them with self-tapping screws, the holes on the (FB) and (TB) are pre-drilled. Make sure that the Velcro on NCs is facing inwards. Note: If the awning is larger than 4’ (52.5”) wide then you must install additional (NCs) and (WSs) to complete the frame assembly and installation.
-
Page 6: Installing The Cover
INSTALLING THE COVER STEP 5: Slide the tubing at the top of the fabric cover into the C-Channel on the top of (TB). STEP 6: Pull the remainder of fabric over the fame with the valance hanging down below the (NC) and (FB) bars. - Page 7 STEP 7: Once you are satisfied with the position of the cover, Pull the tabs snugly and attach them to the pre- installed Velcro tape on the bars. NORMAL WEAR & TEAR: The weather in certain regions of the country contributes to wear and tear of the awnings. If you live in these areas (High maintenance areas: FL, TX, NM, AZ, NV or high-altitude areas) weather conditions (including sun) can take a toll.
