H-3478

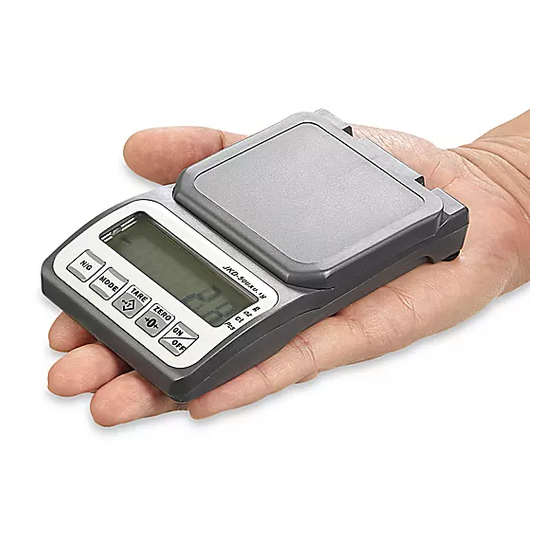

DIGITAL POCKET SCALE
CONTROL PANEL
CONTROL FUNCTIONS
BUTTON
FUNCTION
Displays net and
gross weight.
WARNING! Place the scale on a flat and stable
surface. Do not operate the scale in hostile
environments. Avoid sudden temperature
changes. Do not immerse the scale in water or
other liquids.
NOTE: Operating temperatures should be
between 32°F and 140°F (0°-40°C).
REMOVING THE SHIPPING SCREW
1.
Remove the battery cover (A) on the bottom of the
scale. (See Figure 1)
2. Unscrew the shipping screw (B).
INSTALLING THE BATTERIES
Insert three AAA batteries into the battery chamber (C)
on the bottom of the scale.
NOTE: Ensure the negative battery terminals
face the spring contacts.
PAGE 1 OF 9
1-800-295-5510
uline.com
OVERVIEW OF CONTROLS
N/G
MODE
N/G
MODE
N/G
MODE
Changes weigh
units. Release on
desired unit.
JKD-500X0.1g
g
oz
ct
Pcs
TARE
ZERO
ON
0
OFF
T
TARE
T
TARE
Tares the weight of
the container.
SETUP
Figure 1
B
A
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
ZERO
0
ZERO
ON/OFF
Sets display to zero.
Turns the scale
on/off.
Remove the screw before using
!
ON
OFF
C
0421 IH-3478

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-3478 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line H-3478

Summary of Contents for U-Line H-3478

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-3478 1-800-295-5510 uline.com DIGITAL POCKET SCALE OVERVIEW OF CONTROLS CONTROL PANEL JKD-500X0.1g TARE ZERO MODE CONTROL FUNCTIONS TARE ZERO BUTTON MODE MODE TARE ZERO ON/OFF FUNCTION Displays net and...

  • Page 2: Operation

    OPERATION TURNING THE SCALE ON/OFF COUNTING Press MODE to select "PCS." • To turn the scale on, press the ON/OFF button. 2. Press N/G to choose the sampling amount: • To turn the scale off, press the ON/OFF button. 5=10 10 pieces CHANGING UNIT OF MEASURE 5=20...

  • Page 3: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE RECOMMENDATION Confirm nothing is on the weighing platform and reboot the scale. Load cell failure. Confirm the shipping screw has been removed from the scale. (See Figure 1[B] ) HHHHH LLLLL Defective load cell. Defective mainboard. ErrE Reboot the scale.
  • Page 4 H-3478 800-295-5510 uline.mx BÁSCULA DIGITAL DE BOLSILLO RESUMEN DE LOS CONTROLES PANEL DE CONTROL JKD-500X0.1g TARE ZERO MODE FUNCIONES DE CONTROL TARE ZERO BOTÓN MODE MODE TARE ZERO ON/OFF FUNCIÓN Muestra el peso Cambia las unidades Pone la pantalla en...
  • Page 5 FUNCIONAMIENTO ENCENDER/APAGAR LA BÁSCULA PESAJE 1. Coloque el artículo que desea pesar en la • Para encender la báscula, presione el botón plataforma de la báscula. ON/OFF. 2. El peso se mostrará en la pantalla. • Para apagar la báscula, presione el botón ON/OFF. CONTEO CAMBIAR LA UNIDAD DE MEDIDA Presione MODE para seleccionar "PCS".

  • Page 6: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE RECOMENDACIÓN FUNCIONAMIENTO Verifique no hay nada sobre la bandeja de pesaje y reinicie la báscula. Fallo de la celda de carga. Verifique que se ha quitado el tornillo de envío de la báscula. (Vea Diagrama 1[B] ) HHHHH LLLLL Celda de carga defectuosa.
  • Page 7 H-3478 1-800-295-5510 uline.ca BALANCE NUMÉRIQUE DE POCHE APERÇU DES COMMANDES PANNEAU DE COMMANDE JKD-500X0.1g TARE ZERO MODE FONCTIONS DES COMMANDES TARE ZERO TOUCHE MODE MODE TARE ZERO ON/OFF FONCTION Affiche le poids net Modifie les unités de Tare le poids du Réinitialise...
  • Page 8 FONCTIONNEMENT ALLUMER ET ÉTEINDRE LA BALANCE 2. Le poids s'affichera à l’écran. • Pour allumer la balance, appuyez sur la touche COMPTAGE ON/OFF. 1. Appuyez sur MODE pour sélectionner « PCS ». • Pour éteindre la balance, appuyez sur la touche ON/OFF. 2.

  • Page 9: Dépannage

    DÉPANNAGE PROBLÈME RECOMMANDATION Assurez-vous que rien ne se trouve sur la plateforme de pesage et redémarrez la balance. Échec de la cellule de charge. Vérifiez que la vis d’'expédition a bien été retirée de la balance. (Voir Figure 1[B] ) HHHHH LLLLL Cellule de charge défectueuse.
