Summary of Contents for Gentec SMARTEC STS1000

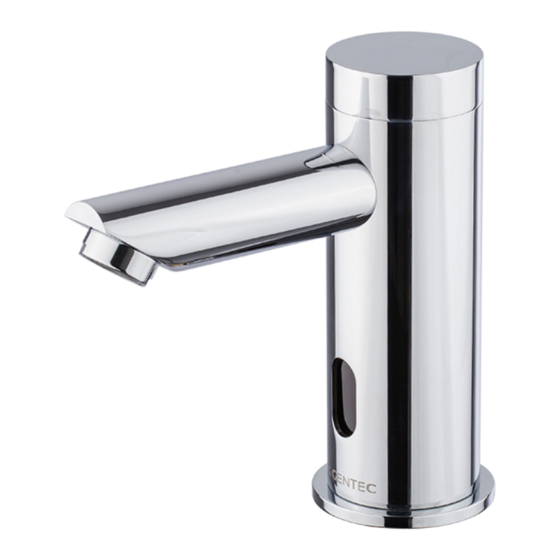

- Page 1 INSTALLATION MANUAL SMARTEC Electronic 90˚ Basin Tap STS1000 (M/B/BM) Electronic 45˚Basin Tap STS1500 (M/B/BM) Electronic Wall Mounted Tap STS2500 (M/B/BM) Electronic Sensor Plate STS3500, STS4500 (M/B/BM) Electronic Sensor Plate Kit STS3000, STS4000 (M/B/BM)
-
Page 2: Table Of Contents
Contents Product Features Product Range Technical Drawings Installation Requirements Unit Components Remote Functions and Operations General Connections Taps Mounting Instructions Soap Dispenser Instructions Sensor Plate Installation FAQs Product Warranty... -
Page 3: Product Features
Adjustable sensitivity between 0-200mm (Remote controls sold separately) Commercial applications, Healthcare SAI Global hereby grants: Gentec Australia Pty Ltd accessible areas, child care facilities, Application ABN 58 155 250 285 Sports facilities, hotels and food Suite 106, 64-76 Kippax Street, Surry Hills, NSW 2010, Australia... -
Page 4: Product Range
Product Range STS1000 M / B / BM STS1500 M / B / BM ELECTRONIC SINGLE TEMPERATURE BASIN ELECTRONIC SINGLE TEMPERATURE 45˚ BASIN TAP STS3000 M / B / BM STS4000 M / B / BM ELECTRONIC SINGLE TEMPERATURE SENSOR ELECTRONIC SINGLE TEMPERATURE SENSOR KIT WITH SPOUT KIT WITH SPOUT... - Page 5 STS2500 STS1020/ STS2520 ELECTRONIC SINGLE TEMPERATURE WALL ELECTRONIC SOAP DISPENSERS - MAINS MOUNTED TAP POWERED ONLY STS3500 M / B / BM STS4500 M / B / BM ELECTRONIC SINGLE TEMPERATURE ELECTRONIC SINGLE TEMPERATURE SENSOR SENSOR *Regular service must be carried out on the product to avoid product failure. www.gentecaustralia.com.au...
-
Page 6: Technical Drawings
Technical Drawings STS1000 M / B/ BM STS1500M M/ B/ BM 15.5 ELECTRONIC SINGLE TEMPERATURE BASIN ELECTRONIC SINGLE TEMPERATURE 45˚ BASIN TAP 116.8 Ø60 G1/2 STS2500 M / B/ BM STS2520 ELECTRONIC SINGLE TEMPERATURE WALL ELECTRONIC WALL MOUNTED SOAP MOUNTED TAP DISPENSER... - Page 7 STS1020 STS4500 M / B/ BM ELECTRONIC SOAP DISPENSER ELECTRONIC SINGLE TEMPERATURE SENSOR Ø31.7 Ø31.7 Ø44.3 Ø44.3 Ø43 Ø43 STS3500 M / B/ BM S3000 ELECTRONIC SINGLE TEMPERATURE SPOUT SENSOR www.gentecaustralia.com.au...
-
Page 8: Installation Requirements
Installation Requirements BEFORE THE SET UP, MAKE SURE: Avoid use on shiny / reflective Reflective surfaces could cause nuisance surfaces such as aluminium, glass triggering and activate the sensor when or similar. installed out of the suggested minimum clearance. See images bellow Reflection could cause malfunction of the sensor Installation MUST be by a certified... -
Page 9: Unit Components
Unit components UNIT COMPONENTS Description Tap Body Sensor Foam Washer Metal Washer Back Nut Flexible Hose Solenoid Box OPERATION REQUIREMENTS Configuration - Battery Power Option - Mains - Mains and Battery Finish Chrome - Minimum 150kpa Water Pressure - Optimum 350kpa - Maximum 500kpa - Minimum 10˚C Temperature... -
Page 10: Remote Functions And Operations
Remote Functions Before set up make sure: suit your desired need. • To use good quality AAA batteries. • Every time you press a button on the Fit the batteries into the remote and Remote controller, the indicator LED light secure cover on the remote in place. - Page 11 Remote Operation Automatic ON/OFF When hands are in the sensor’s range, program Figure 1 turns ON. Removing hands from the sensor’s range will switch the sensor OFF. See Figure 1 Default is for Sensor to switch OFF after 2 seconds RUN; however this is adjustable with the Grey remote controller 1.
-
Page 12: General Connections
General Connections FOR UNITS STS1000MB, STS1500MB, STS2500MB Screw the solenoid box to the wall MB: Mains and Battery Operated by using the screws provided. B: Battery Operated Ensure to have enough space M: Mains Operated between the wall and the fixing point. - Page 13 • Please refer fo the diagram on page 12 When using the unit for Connect the tap flexible hose to the first time solenoid box outlet. Make sure the Make sure to turn on the power • connections are firm and in the right place. first and then the water.
-
Page 14: Taps Mounting Instructions
Mounting Instructions SINGLE TEMPERATURE ELECTRONIC BASIN TAPS STS1000MB STS1500MB Flush the new pipe prior to installation Screw in the flexible hose. Place the Flange, and the tap unit in the pre-punched hole (30mm to 35mm) in the counter top. From underneath the sink or basin, fix rubber seal, fixing plate and fixing nut with a spanner. Make sure the screws are well tightened to the counter top. - Page 15 WALL MOUNTED ELECTRONIC BASIN TAPS STS2500MB Mark the centre line for the main hole, Replace G1/2 Nut to flexi hose from the centre line go up 19mm and drill Attach flexi hose to water main / stop a 5mm hole. Then, drill a 28 - 30mm hole cock from the centre.
-
Page 16: Soap Dispenser Instructions
Mounting Instructions ELECTRONIC SOAP DISPENSERS STS2520, STS1020 FOR THE WALL MOUNTED UNIT FOR THE BENCH MOUNTED UNIT Drill a hole (24 to 25mm) at the desired Drill a hole (32mm) in the counter top. location for the soap dispenser spout Remove the locknut and Insert the installation. -
Page 17: Sensor Plate Installation
WALL MOUNTED ELECTRONIC SENSOR PLATE STS3500 Important information Plug in the power adaptor first test electronics before turning on the water supply. Install the sensor plate by tightening the screws provided (3) equally. The screws have up to 10mm adjustment. Wall bracket installation All fixtures must be installed using slim compression fittings. - Page 18 WALL MOUNTED ELECTRONIC SENSOR PLATE STS4500 Before Installation Description Before connecting water to the valve, ensure to Solenoid Box flush the line and remove all debris. Backing Plate All fixtures must be installed using slim compression fittings. Sensor Plate Working pressure must be between 150 and Cover Plate 450kPa.
- Page 19 Connect all plumbing before mounting the solenoid box to the wall using the Important information screws provided. Plug in the power adaptor first test electronics before turning on the water supply. Use the screws provided to mount the backing plate (2) onto the solenoid box (1) Front of wall installation Install the sensor plate by tightening the screws provided equally.
-
Page 20: Faqs
FAQs Can I change the sensitivity of the My tap is turning on every 12 hours by sensor and/or the run time by myself? it self Yes, a set of 2 remotes can be purchased that The hygiene flush may be set up to turn on for will allow you to adjust the sensitivity ( See a predetermined time over a set period, e.g. -
Page 21: Product Warranty
Warranty GENTEC PRODUCT QUALITY WARRANTY You have purchased a quality product from GENTEC 2.2.7 include pictures of the alleged defect; and Australia Pty Ltd ABN 581 552 50285 ). This product a reasonable time. is covered by a 24 month warranty over spare 2.2.8 completed credit card authorisation in the... - Page 22 4.3.1 an act, default, omission or representation other reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired made by some other person, excluding Gentec or its manufacturer (for example, damage or replaced if the Goods fail to be of acceptable...
- Page 23 4.5 However, nothing in this clause will prevent You from exercising any rights which You may 5.3 The address for any notice to be have under the Competition and Consumer Act delivered to the Principal is as follows: 2010 or any other law which cannot by law be excluded or modified by agreement.
- Page 24 www.gentecaustralia.com.au info@gentecaustralia.com.au Unit 6 20-28 Ricketty St, Mascot, Sydney, NSW 2020 P: +612 9319 4422 F: +612 8088 7635 MAR-IM-SMR03-MB-181119...
