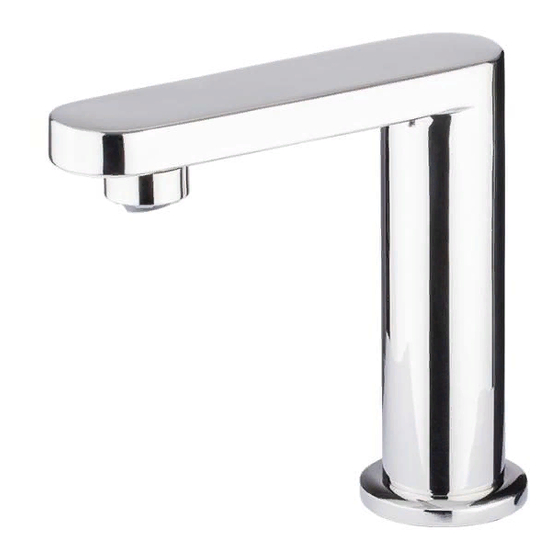

- Page 1 INSTALLATION MANUAL SMARTEC PLUS Electronic 90˚ Basin Tap PLUS1000 (M/B/BM) - Polished PLUS1000S (M/B/BM) - Satin Electronic Wall Mounted Tap PLUS2500 (M/B/BM) - Polished PLUS2500S (M/B/BM) - Satin...
-
Page 2: Table Of Contents
Contents Product Features Product Range Technical Drawings Unit components General Connections Sensitivity Adjustment Electronic Basin Tap Installation Electronic Wall Mounted Tap Installation Product Warranty... -
Page 3: Product Features
Smartec Plus by Gentec The stainless steel Smartec Plus range of electronic sensor operated touch free tapware incorporates advanced laser technology for precise sensor actuation. This technology provides accurate object recognition within the sensor range and is unaffected by surrounding reflective surfaces. Mains and battery power options increases the installation flexibility whilst being highly energy efficient. -
Page 4: Product Range
Product Range PLUS1000 M / B / BM ELECTRONIC 90˚ BASIN TAP PLUS2500 M / B / BM ELECTRONIC WALL MOUNTED TAP For optimum operational life, the installation of a PRV set to 350kPa is recommended... -
Page 5: Technical Drawings
Mascot, NSW 2020 info@gentecaustralia.com.au This drawing is property of PRODUCT RANGE LAST UPDATE APPROVED BY All dimensions are in mm Smartec Plus Gentec Australia Pty Ltd unless specified. Steven 02/03/20 Penson 1 : 2 MAR-LD-PLUS01-MB-020320 SCALE ELECTRONIC WALL MOUNTED TAP... -
Page 6: Unit Components
Spare Parts Breakdown DIAGRAM 1: PLUS1000BM DIAGRAM 2: PLUS2500BM For optimum operational life, the installation of a PRV set to 350kPa is recommended... - Page 7 Finish Polished / Satin - Maximum 50˚C * * Gentec recommends a maximum water supply pressure of 450kPa for the Smartec Plus range Service inspections at regular intervals especially in high usage areas will assist in optimising the operational life of the product.
-
Page 8: General Connections
General Connections FOR ALL UNITS PLUS1000BM, PLUS2500BM Screw the solenoid box to the wall using BM: Battery and Mains Operated the screws provided. B: Battery Operated Ensure to have enough space between M: Mains Operated the wall and the fixing point. When using the unit for the first time Make sure to turn the power... - Page 9 Connect the flexible hose from the tap • 2m extension cables are available if required. The extension can be use to the control box outlet. Ensure the either for the sensor or for the power. connection is free of any water leak. Not for extending both.
-
Page 10: Sensitivity Adjustment
Sensitivity Adjustment FOR ALL UNITS PLUS1000BM, PLUS2500BM The sensor’s maximum range is 160mm +/- 10% Place your hand desired position to adjust sensitivity and hold it in position until the light turns off. To reprogram sensitivity disconnect the sensor power cable from the solenoid box and leave it for at least 20 seconds. -
Page 11: Electronic Basin Tap Installation
Mounting Instructions ELECTRONIC BASIN TAPS PLUS1000BM Flush the new pipe prior to installation Drill a 35mm hole on the counter top Washer Mounting Place the Flange, and insert the sensor cable followed by the flexi hose through the tap hole in the counter top. Important Information Switch power... -
Page 12: Electronic Wall Mounted Tap Installation
Mounting Instructions HOB FIT OUT - ELECTRONIC WALL MOUNTED TAP PLUS2500BM PRIOR TO INSTALLATION should finish 5mm behind To ensure a flush fit to the wall / hob, the fitting the finish wall (or perfectly flush). Any protrusion may affect installation. Drill 45mm hole in the hob Fasten the tap to the hob using the 4 fixing screws. - Page 13 See Figure 1 below 2m extension cables are available if *Contact Gentec for installation advise. required. The extension can be used for Thread the threaded piece into the the sensor or for the power wire. Not for female plumbing fitting in the wall.
-
Page 14: Product Warranty
Warranty GENTEC PRODUCT QUALITY WARRANTY You have purchased a quality product from GENTEC 2.2.7 include pictures of the alleged defect; and Australia Pty Ltd ABN 581 552 50285 ). This product a reasonable time. is covered by a 24 month warranty over spare parts and labour. - Page 15 4.3.1 an act, default, omission or representation other reasonably foreseeable loss or damage. made by some other person, excluding Gentec You are also entitled to have the Goods repaired or its manufacturer (for example, damage...
- Page 16 4.5 However, nothing in this clause will prevent 5.3 The address for any notice to be You from exercising any rights which You may delivered to the Principal is as follows: have under the Competition and Consumer Act 2010 or any other law which cannot by law be excluded or modified by agreement.
