- Page 1 INSTALLATION MANUAL STAINLESS STEEL PRE-RINSE UNITS Hob Mounted Unit GPJ1200 Compact Hob Mounted Unit GPJ1200C...
-
Page 2: Table Of Contents
Contents Product Features Product Range Technical Drawings Unit Components Hob Mounted Units Installation Wall Bracket Installation Spring and Trigger Spray Installation Maintenance and Best Practices FAQs Product Warranty... -
Page 3: Product Features
GPure Pre-Rinse Units by Gentec Gentec’s GPure range of lead - free Pre-Rinse solutions are a further innovative development in response to the call by groups such as enHealth (Environmental Health Standing Committee) for the further reduction of lead in plumbing products that are in contact with drinking water. -
Page 4: Product Range

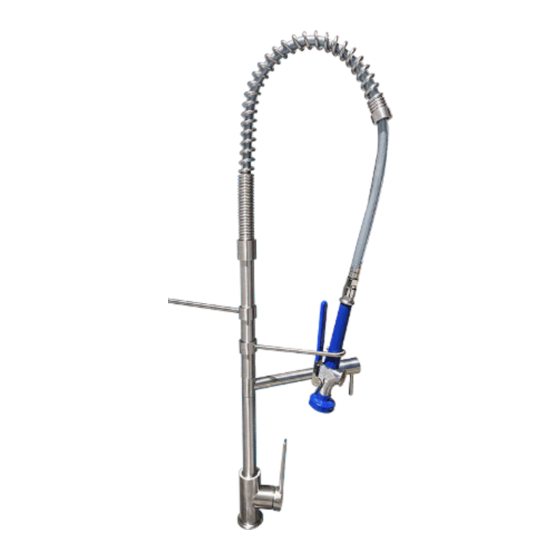

Product Range GPJ1200 STAINLESS STEEL HOB MOUNTED PRE RINSE UNIT WITH POT FILLER GPJ1200C STAINLESS STEEL COMPACT HOB MOUNTED PRE RINSE UNIT WITH POT FILLER... -
Page 5: Technical Drawings
GPJ1200 270.5 190.79 Ø23.5 Ø28 Ø8.4 Ø38 Ø55 GPJ1200C 270.5 190.70 Ø23.5 Ø20 Ø8.4 Ø38 Ø55 www.gentecaustralia.com.au... - Page 6 Technical information GPJ0050 TRIGGER SPRAY Note: For optimum operational life, water supply pressure should not exceed 450kPa.
- Page 7 HOB MOUNTED COMPACT HOB MOUNTED Model PRE-RINSE UNIT PRE-RINSE UNIT GPJ1200 GPJ1200C Product Code Product Type Pre Rinse unit Pre Rinse unit Colour Finish Brushed Brushed Material Stainless Steel 304 Stainless Steel 304 Inlet 15mm Flexible Connections 15mm Flexible Connections Blade Spray (Aerator Spray Blade Spray (Aerator Spray Outlet...
-
Page 8: Unit Components
Unit components... - Page 9 No. Code Description Code Description "O" Ring Service Kit Spring GPJ0060 GPJ0052 for Trigger Spray Gun Hose GPJ0070 Fixing Screw and Cap GPJ0074 suit Mixer GPJ0061 Bracket for spray gun Allen key GPJ0062 Bracket to Wall Grub Screw Support Bracket Hot/Cold and Warm "O"...
-
Page 10: Hob Mounted Units Installation
Installation Instructions MIXER BODY INSTALLATION FOR ALL UNITS Important Note The mixer must be installed in accordance with the must be thoroughly flushed before connecting the requirements of the NCC Vol3 and AS/NZS3500 by assembly. Isolating stop cocks should be installed at a suitably qualified licensed plumber. -
Page 11: Wall Bracket Installation
WALL BRACKET INSTALLATION The Wall Bracket Installation is an essential Important Information part for the correct operation and use of the Stainless Steel Pre Rinse Unit. Measure and cut the wall support bar (6) • The wall support bar (6) can to a length with a 2 to 5mm gap from slide up or down to the desired the wall. -
Page 12: Spring And Trigger Spray Installation
Installation Instructions TRIGGER SPRAY INSTALLATION FOR ALL UNITS Apply Teflon tape or loxeal to the male thread of the trigger spray. Screw the Trigger Spray Unit (18) to the Hose, tighten firmly using a spanner on the flat section of the Nut. Trigger Spray Fixing Methods Using Teflon Tape Tighten using flats on trigger spray and... -
Page 13: Maintenance And Best Practices
Maintenance For optimum performance and durability Service inspections regular intervals especially high usage areas will assist optimising operational life of the product. Ensure the Blade Spray nozzle outlet is inspected and cleaned at regular intervals to maintain the units water spray efficiency and effectiveness. - Page 14 Notes...
-
Page 15: Faqs
I get a new one under warranty? and causes unnecessary strain to the Installation and reparation must be carried hose. out by certified plumbers. The unit must be intact for inspection by a Gentec Australia approved plumber during service call 6. - Page 16 (GPJ0052) can be purchased trigger spray service kit (GPJ0052) can be from Gentec Australia. purchased from Gentec Australia. Install an isolation valve or pressure limiting valve to prolong the product's service life. 11. Water is leaking from mixer cartridge To work correctly, the cartridge in the mixer body should be flushed clean...
-
Page 17: Product Warranty
Warranty GENTEC PRODUCT QUALITY WARRANTY You have purchased a quality product from GENTEC to be turned off; Australia Pty Ltd ABN 581 552 50285 ). This product 2.2.7 include pictures of the alleged defect; in a is covered by a 24 month warranty on spare parts reasonable time. - Page 18 4.3.1 an act, default, omission or representation other reasonably foreseeable loss or damage. made by some other person, excluding Gentec You are also entitled to have the Goods repaired or its manufacturer (for example, damage...
- Page 19 the Principal in relation to specific Goods. 5.3 The address for any notice to be delivered to the Principal is as follows: 4.5 However, nothing in this clause will prevent You from exercising any rights which You may have under the Competition and Consumer Act 2010 or any other law which cannot by law be excluded or modified by agreement.
- Page 20 www.gentecaustralia.com.au info@gentecaustralia.com.au Unit 6 20-28 Ricketty St, Mascot, Sydney, NSW 2020 P: +612 9319 4422 F: +612 8088 7635 MAR-IM-GPJF03-MB-010321...
