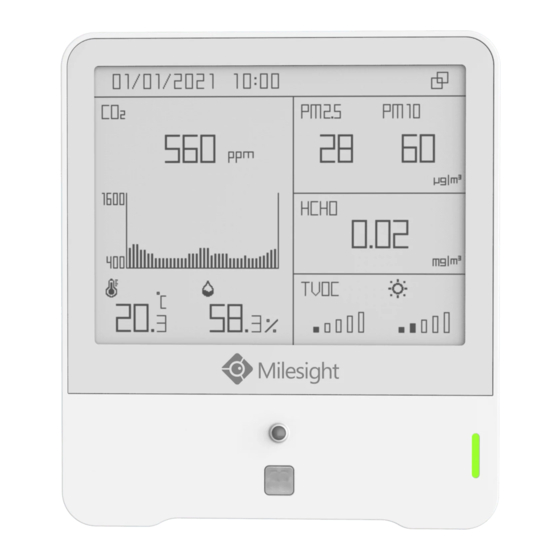

Milesight AM300 Series User Manual

Indoor ambiance monitoring sensor
Hide thumbs Also See for AM300 Series:
Table of Contents

Advertisement

Quick Links

Indoor Ambiance
Monitoring Sensor
AM300 Series
User Guide
Milesight IoT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milesight AM300 Series

Summary of Contents for Milesight AM300 Series

  • Page 1 Indoor Ambiance Monitoring Sensor AM300 Series User Guide Milesight IoT...
  • Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes. The device is not intended to be used as a reference sensor, and Milesight will not should ...
  • Page 3 For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Address: 4/F, No.63-2 Wanghai Road, Software Park, Xiamen, China Revision History Date Doc Version Description Oct.9, 2021 V 1.0 Initial version...

  • Page 4: Table Of Contents

    Contents 1. Product Introduction..........................5 1.1 Overview............................5 1.2 Features............................5 2. Hardware Introduction..........................5 2.1 Packing List............................5 2.2 Hardware Overview.........................6 2.3 E-ink Screen............................. 6 2.3.1 Screen Description......................6 2.3.2 Screen Mode Switch......................8 2.4 Button and Traffic Light......................... 8 2.5 Dimensions............................8 3.

  • Page 5: Product Introduction

    LoRaWAN ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Robust LoRa connectivity for indoor or HVAC environments ...

  • Page 6: Hardware Overview

    4 × 1 × 1 × 1 × Type-C Cable (1.2 m) Quick Guide Warranty Card ER14505 Li-SOCl & Power Adapter Batteries (AM319 Only) (AM307 Only) If any of the above items is missing or damaged, please contact your sales Representative. 2.2 Hardware Overview 2.3 E-ink Screen 2.3.1 Screen Description...
  • Page 7 PM2.5, PM10, HCHO/O exceeds the Bad threshold Note: AM300 series will update screen data every 1 minute and do a full-screen refresh every 30  minutes(AM319) or 60 minutes (AM307) in order to remove ghosting. When AM300 series detects the temperature beyond the range from 0°C to 40°C, the screen ...

  • Page 8: Screen Mode Switch

    Here are 3 methods to switch between the three modes: Power button: Quick press the power button to switch the mode.  Mobile App: Go to Milesight ToolBox App menu “Device > Setting > General Settings” to  select screen display mode.

  • Page 9: Power Supply

     4. Operation Guide 4.1 Log in the ToolBox AM300 series can be monitored and configured via ToolBox App or ToolBox software. Please select one of them to complete configuration. 4.1.1 NFC Configuration 1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store.

  • Page 10: Usb Configuration

    2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) AM300 series can also be configured by dedicated NFC reader, which can be purchased from Milesight IoT. 4.1.2 USB Configuration 1.

  • Page 11: Lorawan Settings

    4. After logging in the ToolBox, you can click “Power On” or “Power Off” to turn on/off device and change other settings. 4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ® network. Step 1: Go to “LoRaWAN Settings -> Basic” of ToolBox software or “Device -> Settings -> LoRaWAN Settings”...
  • Page 12 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
  • Page 13 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 14: Time Synchronization

    Note: For -868M model, the default frequency is EU868; For -915M model, the default frequency is AU915. 4.3 Time Synchronization Mobile App Configuration: Go to “Device -> Status” to click “Sync” to sync the time on the screen. Software Configuration: Go to “Status”...

  • Page 15: Basic Settings

    4.4 Basic Settings Go to “Device Settings -> Basic” of ToolBox software or “Device -> Settings -> General Settings” of ToolBox App to change the reporting interval, screen mode, etc. Parameters Description Reporting interval of transmitting current sensor values to network Reporting Interval server.

  • Page 16: Advanced Settings

    Data Storage Disable or enable data stroage locally. (see section 4.5.4 to export data ) Screen Display Disable or enable screen display. When PIR value is 0 (Vacant) and last for 20 mins, the screen will stop Screen Smart Mode updating to save power.

  • Page 17: Calibration Settings

    4.5.2 Calibration Settings ToolBox supports numerical calibration for all items. Go to “Device Settings -> Basic” of ToolBox software or “Device -> Settings -> Calibration Settings” of ToolBox App to type the calibration value and save, the device will add the calibration value to raw value.

  • Page 18: Threshold Settings

    , TVOC, PM2.5, PM10 and HCHO/O , it supports defining Excellent, Polluted and Bad threshold for traffic light, buzzer and screen alarms. Besides, when one of concentrations of air pollutants exceeds the Bad threshold, AM300 series will upload the current data once instantly.

  • Page 19: Data Storage

    4.5.4 Data Storage AM300 series supports storing more than 18000 data records locally and exports data via ToolBox App or ToolBox software. The device will record the data according to reporting interval. 1. Go to “Device Settings -> Basic” of ToolBox software or “Device -> Settings -> General Settings”...

  • Page 20: Maintenance

    4.6.1 Upgrade ToolBox Software: 1. Download firmware from www.milesight-iot.com to your PC. 2. Go to Maintenance -> Upgrade of ToolBox software, click Browse to import firmware and upgrade the device. You can also click Up to Date to search for the latest firmware of the device and upgrade.

  • Page 21: Backup

    4.6.2 Backup AM300 series supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ® ToolBox Software: 1. Go to Maintenance -> Backup and Reset of ToolBox software, click Export to backup the device configuration.

  • Page 22: Reset To Factory Default

    Note: Slide the template item to the left to edit or delete it. Click the template to edit the configurations. 4.6.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on reset button more than 10s. Via ToolBox Software: Go to “Maintenance ->...

  • Page 23: Installation

    5. Installation Fixed by 3M Tape: 1. Paste 3M tape to the back of the mounting bracket, then tear the other side and place it on a flat surface. 2. Put the device on the mounting bracket, then fix the bottom of the device to the bracket with the theft-deterring screw.
  • Page 24 In order to ensure the best detection and LoRaWAN ® communication effect, it is recommended to install AM300 series as follows: There should not be any isolates or barriers in PIR and light detection range.  Do not mount the device where the temperature is below/above operating range and ...

  • Page 25: Device Payload

    Value 0101 (Software (V1.1) (Device Type) (Class C) version) 6.2 Sensor Data AM300 series sensors report sensor data according to reporting interval (10mins by default). Item Channel Type Description Battery Level UINT8, Unit: %, AM307 Only Temperature INT16, Unit: °C, Resolution: 0.1 °C Humidity UINT8, Unit: %, Resolution: 0.5 %...
  • Page 26 01: PIR is triggered PIR Status 00: PIR is not triggered 00：0-5 lux 01：6-50 lux 02：51-100 lux Light Level 03：101-500 lux 04：501-2000 lux 05：> 2000 lux UINT16, Unit: ppm UINT16 TVOC Barometric UINT16, Unit: hPa, Resolution: 0.1 hPa Pressure UINT16, Unit: mg/m , Resolution: 0.01 mg/m HCHO UINT16, Unit: μg/m...

  • Page 27: Downlink Commands

    Value 00=>Buzzer is not 0a 06 => 06 0a =1546 ppm beeping 6.3 Downlink Commands AM300 series sensors support downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03(Set Reporting Interval) 2 Bytes, unit: s...

  • Page 28: Appendix

    Channel Type Value 2c (Enquire LED and Buzzer mode) 00(Reversed) Reply: ff2e02 ff3e00 Channel Type Value Channel Type Value 2e(LED Mode) 02=Blink 3e (Buzzer Mode) 00=Off Appendix Carbon Dioxide Levels and Guidelines Level Description 400ppm Normal outdoor air level. 400-1000ppm Typical level indoors with good ventilation.
  • Page 29 neurotoxic effects. Need to maximize ventilation and avoid attendance. -END-...

This manual is also suitable for:

Am307Am319Am307-868mAm319-868m-o3Am319-470m
