Summary of Contents for Milesight AM308

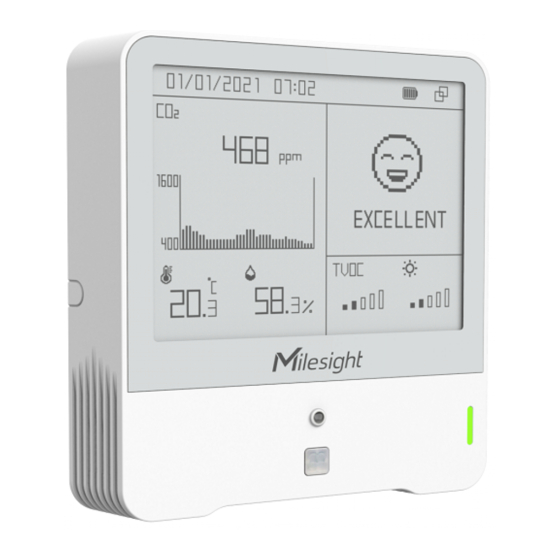

- Page 1 Indoor Ambiance Monitoring Sensor Featuring LoRaWAN ® AM300 Series User Guide...
- Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes. The device is not intended to be used as a reference sensor, and Milesight will not should ...
- Page 3 Copyright © 2011-2022 Milesight. All rights reserved. All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd.
-
Page 4: Table Of Contents
Contents 1. Product Introduction ......................... 5 1.1 Overview ...........................5 1.2 Features ........................... 5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 E-ink Screen ..........................6 2.3.1 Screen Description ......................6 2.3.2 Screen Mode Switch .....................8 2.4 Button and Traffic Light ...................... -
Page 5: Product Introduction
LoRaWAN ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Robust LoRaWAN ®... -
Page 6: Hardware Overview
4 × 1 × 1 × 1 × Type-C Cable (1.2 m) Quick Guide Warranty Card ER14505 Li-SOCl & Power Adapter Batteries (AM319 Only) (AM30x Only) If any of the above items is missing or damaged, please contact your sales Representative. 2.2 Hardware Overview 2.3 E-ink Screen 2.3.1 Screen Description... - Page 7 AM300 series will update screen data every 1 minute and do a full-screen refresh every 30 minutes (AM319) or 60 minutes (AM307 and AM308) in order to remove ghosting. When AM300 series detects the temperature beyond the range from 0°C to 40°C, the screen ...
-
Page 8: Screen Mode Switch
Power button: When button lock is disabled, quick press the power button to switch the mode. Mobile App: Go to Milesight ToolBox App menu “Device > Setting > General Settings” to select screen display mode. Software: Go to Toolbox menu “Device Settings > Basic > Basic Settings” to select screen ... -
Page 9: Power Supply
3. Fix the rear cover back to device with the fixing screw. Note: AM307 and AM308 can be powered via USB type-C port or by ER14505 Li-SOCl batteries. ... -
Page 10: Usb Configuration
3) AM300 series can also be configured by dedicated NFC reader, which can be purchased from Milesight IoT. 4.1.2 USB Configuration 1. Download ToolBox software from www.milesight-iot.com. 2. Connect the device to a computer via Type-C port. 3. Open the ToolBox and select type as “General”, then click password to log in ToolBox. -
Page 11: Lorawan Settings
4. After logging in the ToolBox, you can click “Power On” or “Power Off” to turn on/off device and change other settings. 4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ® network. Basic LoRaWAN Settings: Go to “LoRaWAN Settings ->... - Page 12 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
- Page 13 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
-
Page 14: Time Synchronization
Note: For -868M model, the default frequency is EU868; For -915M model, the default frequency is AU915. 4.3 Time Synchronization ToolBox Sync: Go to “Device -> Status” of ToolBox App to click “Sync” to sync the time, or go to “Status” page of ToolBox software to sync the time. -
Page 15: Basic Settings
2) Please modify the threshold settings if the unit is changed. Enable or disable the traffic light indicator to indicate air quality level. LED Indicator AM307 & AM308: Blink AM319: Always On, Blink Enable or disable the buzzer. If enabled, the buzzer will response when Buzzer one of concentrations of air pollutants exceeds the Bad threshold. - Page 16 , Temperature, Humidity Mode 2: CO , Temperature, Humidity, TVOC, light Mode 3: Time&Date, CO , Temperature, Humidity, TVOC, light AM308 Mode 1: Time&Date, CO , PM2.5&PM10, Temperature, Humidity Screen Display Mode 2: CO , PM2.5&PM10, Temperature, Humidity, TVOC, light Mode Mode 3: Time&Date, CO...
-
Page 17: Advanced Settings
4.5 Advanced Settings 4.5.1 Data Collection Settings Go to “Device Settings->Basic” of ToolBox software or “Device -> Settings -> Data Collection Settings” of ToolBox App to select the data you need to monitor. Among them, temperature, humidity and CO are not allowed to disable. If any item is disabled, it will disappear from the screen. -
Page 18: Threshold Settings
Besides numerical calibration, ToolBox provides more calibration methods for CO Manual Calibration: Put the device in an open outdoor environment for more than 10 minutes and click this button to calibrate the CO value. Restore Factory Calibration: Clean the manual calibration and turn back to factory calibration. Auto Background Calibration: When enabled, keep the device work in a well-ventilated environment for 180 hours (around 7 days), then disable the calibration. -
Page 19: Data Storage
For CO , TVOC, PM2.5, PM10 and HCHO/O , it supports defining Excellent, Polluted and Bad threshold for traffic light, buzzer and screen alarms. Besides, when one of concentrations of air pollutants exceeds the Bad threshold, AM300 series will upload the current data once instantly. 4.5.4 Data Storage AM300 series supports storing more than 18000 data records locally and exports data via ToolBox App or ToolBox software. -
Page 20: Data Retransmission
4.5.5 Data Retransmission AM300 series sensor supports data retransmission to ensure network server can get all data even if network is down for some times. There are two ways to get the lost data: Network server sends downlink commands to enquire the historical data for specifying time ... -
Page 21: Maintenance
4.6.1 Upgrade ToolBox Software: 1. Download firmware from www.milesight-iot.com to your PC. 2. Go to “Maintenance -> Upgrade” of ToolBox software, click “Browse” to import firmware and upgrade the device. You can also click “Up to Date” to search for the latest firmware of the... -
Page 22: Backup
ToolBox App: 1. Download firmware from www.milesight-iot.com to your smartphone. 2. Open ToolBox App and click “Browse” to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. - Page 23 ToolBox App: 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file. 2. Select one template file that saved in the smartphone and click “Write”, then attach it to another device to write configuration.
-
Page 24: Reset To Factory Default
4.6.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on reset button more than 10s. Via ToolBox Software: Go to “Maintenance -> Backup and Reset” to click “Reset”. Via ToolBox App: Go to “Device -> Reset” to click “Reset”, then attach smart phone with NFC area to device to complete reset. - Page 25 Wall Mounting: 1. Fix the wall plugs into the wall, then fix the mounting bracket to the wall plugs with screws. 2. Put the device on the mounting bracket, then fix the bottom of the device to the bracket with a fixing screw.
-
Page 26: Device Payload
1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 6.1 Basic Information AM300 series sensors report basic information of sensor whenever joining the network. Channel Type Description 01(Protocol Version) 01=>V1... -
Page 27: Sensor Data
2e (LED Mode) 00: Off, 01: Always On, 02: Blink 3e (Buzzer) 00: Off, 01: On Example: ff166710b32620711912 ff090200 ff0a0101 ff0f02 Channel Type Value Channel Type Value 16 (Device 6710b32620711 0200 (Hardware version) (V2.0) Channel Type Value Channel Type Value 0101 (Software (V1.1) - Page 28 Note: this only upload when one of the concentrations of air pollutants of CO , TVOC, PM2.5, PM10, HCHO/O exceeds the Bad threshold Example: 1. Periodic Package 0367ea00 04688a 050001 06cb01 077dcd04 087d5e01 09735127 0a7d0700 0b7d3b00 0c7d4300 Channel Type Value Channel Type Value...
-
Page 29: Downlink Commands
6.3 Downlink Commands AM300 series sensors support downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03(Set Reporting Interval) 2 Bytes, unit: s 10 (Reboot Device) ff (Reserved) 17 (Set Time Zone) 2 Bytes, desired UTC time zone * 10 00 (Restore Factory Calibration) 1a (Set CO Calibration) -
Page 30: Historical Data Enquiry
2. Enquire traffic light and buzzer mode. ff2c00 Channel Type Value 2c (Enquire LED and Buzzer mode) 00(Reserved) Reply: ff2e02 ff3e00 Channel Type Value Channel Type Value 2e(LED Mode) 02=Blink 3e (Buzzer Mode) 00=Off 3. Reboot the device. ff10ff Channel Type Value 10 (Reboot) - Page 31 2 Bytes, unit: s, 6a (Report Interval) range: 30~1200s (60s by default) Reply format: Channel Type Description 00: data enquiry success 6b/6c 01: time point or time range invalid 02: no data in this time or time range ce (Historical Data) Data time stamp (4 Bytes) + Data Contents (Mutable) Note: 1.
-
Page 32: Appendix
Light: 00=>Level 0 : f802=>02f8=760 ppm TVOC: 6400=>0064=1.00 Pressure: 9127=>2791=1012.9 hPa PM2.5: 2200=>0022=34 μg/m PM10: 2600=>0026=38 μg/m Appendix Carbon Dioxide Levels and Guidelines Level Description 400ppm Normal outdoor air level. 400-1000ppm Typical level indoors with good ventilation. 1000-2000ppm Poor air quality - requires ventilation. Headaches, sleepiness and stagnant, stale, stuffy air. - Page 33 Supermarkets, drawing work, detailed mechanical Level 4 501-2000 workshops, operation theater. Level 5 >2000 Performance of very prolonged and exacting visual tasks. -END-...
