Milesight AM300 Series User Manual

Indoor ambiance monitoring sensor featuring lorawan
Hide thumbs Also See for AM300 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Indoor Ambiance
Monitoring Sensor
Featuring LoRaWAN
®
AM300(L) Series
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milesight AM300 Series

Summary of Contents for Milesight AM300 Series

  • Page 1 Indoor Ambiance Monitoring Sensor Featuring LoRaWAN ® AM300(L) Series User Guide...
  • Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes. The device is not intended to be used as a reference sensor, and Milesight will not should ...
  • Page 3 All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com...

  • Page 4: Table Of Contents

    1.2 Features ........................... 5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 E-ink Screen (AM300 Series Only) ..................7 2.3.1 Screen Description ......................7 2.3.2 Screen Mode Switch .....................8 2.4 Button and Traffic Light ......................8 2.5 Dimensions ..........................

  • Page 5: Product Introduction

    LoRaWAN ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Robust LoRaWAN ®...

  • Page 6: Hardware Overview

    1 × Type-C Cable (1.2 m) Quick Guide Warranty Card ER14505 Li-SOCl & Power Adapter Batteries (AM319(L) Only) (AM30x(L) Only) If any of the above items is missing or damaged, please contact your sales Representative. 2.2 Hardware Overview AM300 Series...

  • Page 7: E-Ink Screen (Am300 Series Only)

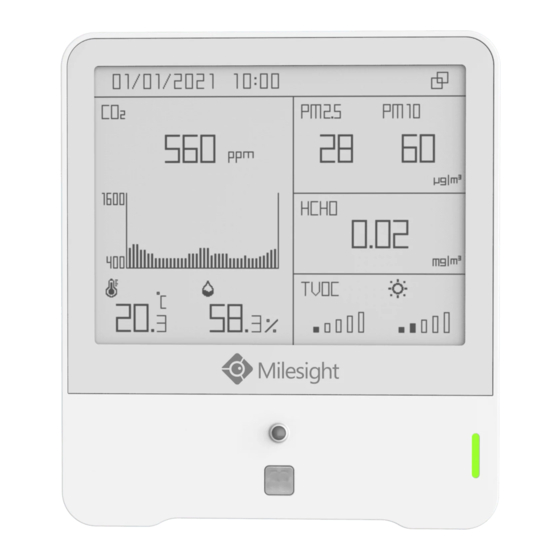

    2.3 E-ink Screen (AM300 Series Only) 2.3.1 Screen Description Icon Description Battery level (AM30x Only) Battery is exhausted (AM30x Only). Sync time with software or mobile App. The device joins the network. The device fails to join the network. Temperature Humidity Level 0：0-5 lux...

  • Page 8: Screen Mode Switch

    Note: AM300 series will update screen data every 1 minute and do a full-screen refresh every 30  minutes (AM319) or 60 minutes (AM307 and AM308) in order to remove ghosting. When AM300 series detects the temperature beyond the range from 0°C to 40°C, the screen ...

  • Page 9: Dimensions

    2.5 Dimensions(mm) 3. Power Supply 1. Release the screw at the back of device and remove the rear cover. 2. Install the batteries or type-C cable to the device. If the device is powered via type-C port, then left or right side should make an opening to pass through the type-C cable. 3.

  • Page 10: Operation Guide

    4.1.1 NFC Configuration 1. Download and install Milesight ToolBox App from Google Play or Apple App Store. 2. Enable NFC on the smartphone and launch Milesight ToolBox. 3. Attach the smartphone with NFC area to the device, click NFC Read to read device information.

  • Page 11: Lorawan Settings

    3. Open the ToolBox and select type as General, then click password to log in ToolBox. (Default password: 123456) 4. After logging in the ToolBox, users can turn on/off device and change other settings. 4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ®...
  • Page 12 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
  • Page 13 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 14: Time Synchronization

    1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled 4.3 Time Synchronization ToolBox Sync: Go to Device > Status of ToolBox App to click Sync to sync the time, or go to Status page of ToolBox software to sync the time.

  • Page 15: Basic Settings

    commands to enquire the time from network server every time it joins the network. This should ensure the network server supports this feature. 4.4 Basic Settings Go to Device Settings > Basic of ToolBox software or Device > Settings > General Settings of ToolBox App to change the reporting interval, screen mode, etc.
  • Page 16 Retransmission Change the password for ToolBox App or software to read/write this Change Password device. AM300 Series Only Screen Display Disable or enable screen display. When PIR value is 0 (Vacant) and last for 20 mins, the screen will stop Smart Screen Mode updating to save power.

  • Page 17: Advanced Settings

    4.5 Advanced Settings 4.5.1 Data Collection Settings Go to Device Settings > Basic of ToolBox software or Device > Settings > Data Collection Settings of ToolBox App to select the data you need to monitor. Among them, temperature, humidity and CO are not allowed to disable.

  • Page 18: Threshold Settings

    Besides numerical calibration, ToolBox provides more calibration methods for CO Manual Calibration: Put the device in an open outdoor environment for more than 10 minutes and click this button to calibrate the CO value. Restore Factory Calibration: Clean the manual calibration and turn back to factory calibration. Auto Background Calibration: When enabled, keep the device work in a well-ventilated environment for 180 hours (around 7 days), then disable the calibration.

  • Page 19: Data Storage

    , it supports defining Excellent, Polluted and Bad threshold for traffic light, buzzer and screen alarms. Besides, when one of concentrations of air pollutants exceeds the Bad threshold, AM300 series will upload the current data once instantly. 4.5.4 Data Storage AM300(L) series supports storing more than 18000 data records locally and exports data via ToolBox App or ToolBox software.

  • Page 20: Data Retransmission

    4.5.5 Data Retransmission AM300(L) series sensor supports data retransmission to ensure network server can get all data even if network is down for some times. There are two ways to get the lost data: Network server sends downlink commands to enquire the historical data for specifying time ...

  • Page 21: Maintenance

    4) Data retransmission will increase the uplinks and shorten the battery life. 4.6 Maintenance 4.6.1 Upgrade ToolBox Software: 1. Download firmware from Milesight official website to your PC. 2. Go to Maintenance > Upgrade of ToolBox software, click Browse to import firmware and upgrade the device. ToolBox App:...

  • Page 22: Backup

    2. Open ToolBox App and click Browse to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. 4.6.2 Backup AM300(L) series supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band.

  • Page 23: Reset To Factory Default

    the template file. 2. Select one template file that saved in the smartphone and click Write, then attach it to another device to write configuration. Note: Slide the template item to the left to edit or delete it. Click the template to edit the configurations.

  • Page 24: Installation

    5. Installation Fixed by 3M Tape: 1. Paste 3M tape to the back of the mounting bracket, then tear the other side and place it on a flat surface. 2. Put the device on the mounting bracket, then fix the bottom of the device to the bracket with the theft-deterring screw.

  • Page 25: Device Payload

    1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 6.1 Basic Information AM300(L) series sensors report basic information of sensor whenever joining the network. Channel Type Description 01(Protocol Version) 01=>V1...

  • Page 26: Sensor Data

    Example: ff166710b32620711912 ff090200 ff0a0101 ff0f02 Channel Type Value Channel Type Value 16 (Device 6710b32620711 0200 (Hardware version) (V2.0) Channel Type Value Channel Type Value 0101 (Software (V1.1) (Device Type) (Class C) version) 6.2 Sensor Data AM300(L) series sensors report sensor data according to reporting interval (10mins by default). Item Channel Type...
  • Page 27 Example: 1. AM307 Periodic Package 0367ea00 04688a 050001 06cb01 077dcd04 087d5e01 09735127 Channel Type Value Channel Type Value ea 00 => 00 ea = 8a=>138 Hum=138*0. (Temperature) (Humidity) Temp=234*0.1= 5=69% 23.4°C Channel Type Value Channel Type Value cb (Light 01= level 1 01: Occupied Level) (6-50 lux)
  • Page 28 51 27=>27 3b 00=>00 73（Barometric 51=10044 3b=59 μg/m Pressure=10065* Pressure） (PM 2.5) 0.1=1006.5 hPa Channel Type Value 43 00=>00 43=67 μg/m (PM 10) 3. AM319-HCHO Periodic Package 0367ea00 04688a 050001 06cb01 077dcd04 087d5e01 09735127 0a7d0700 0b7d3b00 0c7d4300 Channel Type Value Channel Type Value...

  • Page 29: Downlink Commands

    6.3 Downlink Commands AM300(L) series sensors support downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03(Reporting Interval) 2 Bytes, unit: s 10 (Reboot Device) ff (Reserved) 17 (Time Zone) 2 Bytes, desired UTC time zone * 10 00 (Restore Factory Calibration) 1a (CO Calibration)

  • Page 30: Historical Data Enquiry

    ff03b004 Channel Type Value 03 (Set Reporting Interval) b0 04=>04 b0=1200s =20 minutes 2. Enquire traffic light and buzzer mode. ff2c00 Channel Type Value 2c (Enquire LED and Buzzer mode) 00(Reserved) Reply: ff2e02 ff3e00 Channel Type Value Channel Type Value 2e(LED Mode) 02=Blink 3e (Buzzer Mode)
  • Page 31 unix timestamp 6d (Stop query data report) 3 Bytes, Byte 1: 01 6a (Report Interval) Byte 2: interval time, unit: s, range: 30~1200s (60s by default) Reply format: Channel Type Description 00: data enquiry success 6b/6c 01: time point or time range invalid 02: no data in this time or time range ce (Historical Data) Data time stamp (4 Bytes) + Data Contents (Mutable)

  • Page 32: Appendix

    Data) 2022/9/9 Humidity: 7300=>0073=57.5% 01:39:34 PIR: 00=> Vacant Light: 00=>Level 0 : f802=>02f8=760 ppm TVOC: 6400=>0064=1.00 Pressure: 9127=>2791=1012.9 hPa PM2.5: 2200=>0022=34 μg/m PM10: 2600=>0026=38 μg/m Appendix Carbon Dioxide Levels and Guidelines Level Description 400ppm Normal outdoor air level. 400-1000ppm Typical level indoors with good ventilation. 1000-2000ppm Poor air quality - requires ventilation.
  • Page 33 Level 2 51-100 Family living room, hallways. Level 3 101-500 Offices, show rooms, study library, laboratories. Supermarkets, drawing work, detailed mechanical Level 4 501-2000 workshops, operation theater. Level 5 >2000 Performance of very prolonged and exacting visual tasks. -END-...
