Summary of Contents for Milesight AM103

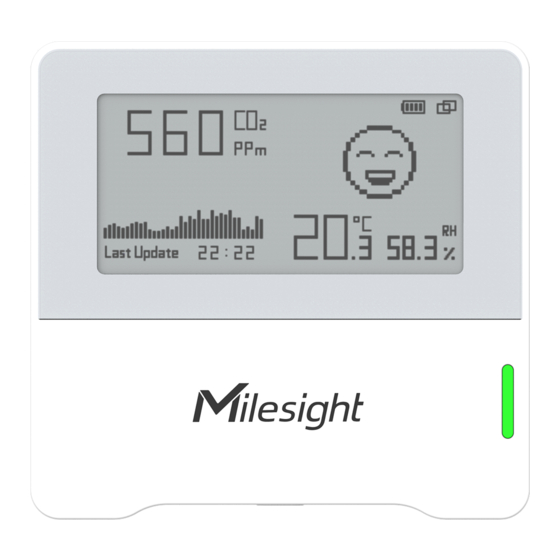

- Page 1 Indoor Ambiance Monitoring Sensor Featuring LoRaWAN ® AM103 & AM103L User Guide...
- Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes. The device is not intended to be used as a reference sensor, and Milesight will not should ...
- Page 3 Revision History Date Doc Version Description Jan. 20, 2022 V 1.0 Initial version...
-
Page 4: Table Of Contents
1.1 Overview............................5 1.2 Features............................5 2. Hardware Introduction..........................5 2.1 Packing List............................. 5 2.2 Hardware Overview........................6 2.3 E-ink Screen (AM103 Only)......................6 2.4 Button and Traffic Light.........................7 2.5 Dimensions............................7 3. Power Supply............................. 8 4. Operation Guide............................8 4.1 Log in the ToolBox..........................8 4.2 LoRaWAN Settings......................... -
Page 5: Product Introduction
The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Robust LoRa connectivity for secure long range transmission ... -
Page 6: Hardware Overview
2.2 Hardware Overview 2.3 E-ink Screen (AM103 Only) Icon Description Battery level The time of the last collected sensor data The device has joined the network The device has not joined the network Temperature Humidity Show the CO concentration and history trends... -
Page 7: Button And Traffic Light
AM103 will update data on the screen every 2 minutes if Screen Smart Mode is disabled; AM103 will do a full-screen refresh after 30 times update in order to remove ghosting. When AM103 detects the temperature beyond the range from 0°C to 40°C, the screen will ... -
Page 8: Power Supply
4.1 Log in the ToolBox The AM103/AM103L can be configured via a NFC supported mobile phone. 1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store. 2. Enable NFC on the smartphone and launch Milesight ToolBox. -
Page 9: Lorawan Settings
3) AM103/AM103L can also be configured by ToolBox software via a dedicated NFC reader provided by Milesight IoT, you can also configure it via TTL interface inside the device. 4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN network. - Page 10 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
-
Page 11: Time Synchronization
If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled... -
Page 12: Basic Settings
When the current collected value is close to the last value (tem ≤ ±0.5°C and hum ≤ ±3% and CO ≤ ±50 ppm), the screen will stop updating to save Screen Smart Mode power. (AM103 Only) Note: if the screen stop updating for 10 minutes, it will update data automatically. Screen Display Enable or disable screen display. -
Page 13: Advanced Settings
4.5 Advanced Settings 4.5.1 Calibration Settings ToolBox supports numerical calibration for all items. Go to “Device -> Settings -> Calibration Settings” of ToolBox App to type the calibration value and save, the device will add the calibration value to raw value. Besides numerical calibration, ToolBox provides more calibration methods for CO Manual Calibration: Put the device in an open outdoor environment for more than 10 minutes and click this button to calibrate the CO... -
Page 14: Maintenance
Note that when you change the temperature unit, please re-configure the threshold. For CO threshold, it supports defining Excellent, Polluted and Bad threshold for traffic light and screen alarms. Besides, when it exceeds the Bad threshold, AM103/AM103L will upload the current data once instantly. 4.6 Maintenance 4.6.1 Upgrade 1. -
Page 15: Backup
4.6.2 Backup AM103/AM103L supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ® 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file. -
Page 16: Reset To Factory Default
4.6.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button for more than 10s. Via ToolBox App: Go to “Device -> Maintenance” to click “Reset”, then attach smart phone with NFC area to device to complete reset. -
Page 17: Device Payload
1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 6.1 Basic Information AM103/AM103L report basic information of sensor whenever joining the network. Channel Type Description 01 (Protocol Version) 01 => V1 09 (Hardware Version) 01 40 =>... -
Page 18: Sensor Data
18 (Sensor (Device 13 = 0001 0011 => All (Class A) Status) Type) sensors are enabled 6.2 Sensor Data AM103/AM103L report sensor data according to reporting interval (10 mins by default). Item Channel Type Description Battery Level UINT8, Unit: % Temperature INT16, Unit: °C, Resolution: 0.1 °C... -
Page 19: Downlink Commands
Bad threshold. Channel Type Value 0a 06 => 06 0a = 1546 ppm 6.3 Downlink Commands AM103/AM103L support downlink commands to configure the device. The application port is 85 by default. Channe Type Description 03 (Set Reporting Interval) -
Page 20: Appendix
3. Disable the e-ink screen display. ff2d00 Channel Type Value 2d (Screen Display) 00: Disable the display 4. Set CO bad threshold as 1500ppm and polluted threshold as 1000 ppm. ff5401dc05e803 Channel Type Value Byte 1: 01 = enable 54 (Set CO Byte 2-3: dc 05 =>...
