Keep the manual safe for future reference. Consider the manual instructions as part of the product. The declaration of conformity can be found on our website www.2vv.cz. 2. UNPACKING 2.1 CHECK THE SUPPLIED UNIT DO NOT MISS! Check immediately on delivery, that the packaged product is not damaged.

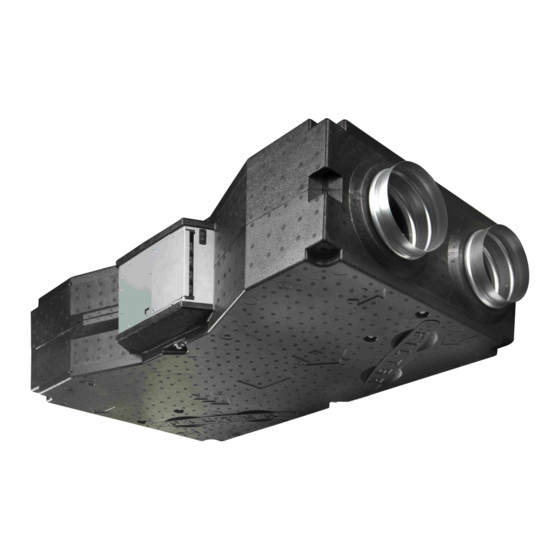

Duct connection - supply air (SUP) Duct connection - diverted air (ETA) Duct connection - exhaust air (EHA) Heat exchanger Fans Regulation unit - connecting power and accessories Condensate drain Filters 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 4
4. DIMENSIONS HRV14, HRV15 a HRV30: 1114 10 (M8) 1000 1051 HRV50 a HRV70 1505 10 (M8) 1351 1391 1441 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
+40 °C -20 °C max. 90% The filtered air should have a temperature ranging from -20°C up to +40°C and relative humidity up to 90%. +40°C +5°C 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
8xM8 - large washers (supplied in delivery) • 4xM8 - threaded rods (not supplied in delivery) • 16xM8 - Nut (not supplied in delivery) • 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 7
In case of any doubts in use of the original accessories please contact the supplier. Connect the siphon on to the neck and the drain pipe which will lead to the sewerage system. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Type HRV14EC HRV15EC HRV30EC HRV50EC HRV70EC YOU WILL NEED Side nut wrenches • 4 flexible connection sleeves • Cross head screwdriver • Sealing tape, sealant • 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 9
ČÍSLO MATERIÁLU: KRESLIL: David Špráchal DATUM: 09.08.2019 NÁZEV HRVN2-30 SCHVÁLIL: Radek Burian DATUM: 31.03.2015 ČÍSLO VERZE MĚŘÍTKO PROMÍTÁNÍ 2-311-S11116 1:10 2VV s.r.o., Fáblovka 568 CZ-533 52 PARDUBICE 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 10
= total current = frequency = power input = ventilator rpm = weight = number of phases = el. protection = air flow Ver = version Serial number 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 11
обогреватель/кулер) cooler) cooler) cooler) cooler) обогреватель/кулер) cooler) cooler) cooler) 2VV. Creating innovative solutions for you and your business since 1995. Внутренний датчик Czujnik przestrzenny Sensore ambientale Prostorové čidlo teploty Spatial sensor Внутренний датчик Czujnik przestrzenny Sensore ambientale Prostorové čidlo teploty Spatial sensor Внутренний...
Page 12
Alterations and changes to the internal connections of the unit are forbidden and may result in the loss of warranty. • We recommend the use of accessories provided by our company. Contact your supplier in case of doubts with the use of non-original • accessories. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
After checking or replacing filters, the fouled filter control must be restarted; see the chapter MENU FILTER TIMER. 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
Page 14
In case of any requests or inquiries, contact our sales or technical department. CONTACT Address 2VV, s.r.o., Fáblovka 568, 533 52 Pardubice, Czech Republic Website: http://www.2vv.cz/ 2VV. Creating innovative solutions for you and your business since 1995. ver.1 06-04-20...
