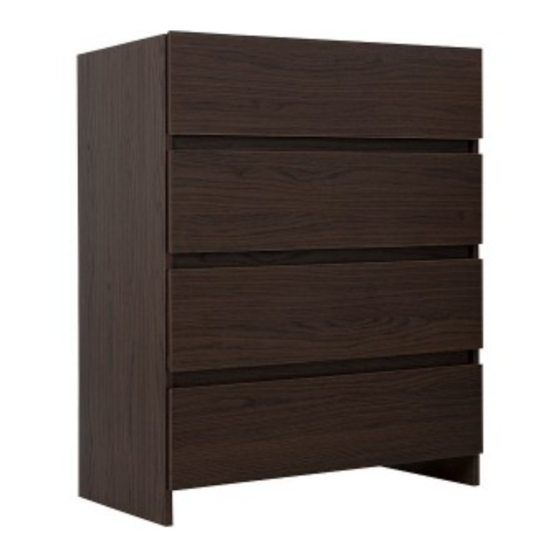

Denver - 4 Drawer Chest
Assembly Instructions -
Dimensions
Width - 75cm
Depth - 40cm
Height - 93cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
355/8463
333/7062
332/4790
MADE IN
BRITAIN
Issue 1 - 20/10/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Denver 355/8463
Summary of Contents for Argos Denver 355/8463
- Page 1 Denver - 4 Drawer Chest Assembly Instructions - 355/8463 Please keep for future reference 333/7062 332/4790 Dimensions Width - 75cm Depth - 40cm MADE IN Height - 93cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 20/10/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 29kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D1567A) (718 x 395mm) Left Side Right Side Rail (DF2098A) (DF2099A) (D1570A) (930 x 396mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 4 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Prepare the left side Place 4 runners Finished the left side front edge shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 9 Prepare the top Insert 4 large locking nuts into the top Note: The arrow on the locking nut must point Finished towards the hole in the front edge edge of the panel. Step 10 Fit the top to the right side Push the top onto...
- Page 9 Assembly Instructions Step 12 Fit 3 of the rails Push 3 rails onto the right side Use a screwdriver to tighten the 3 large locking nuts fitted to the 3 rails Step 13 Fit the last rail Push the last rail onto the right side Use a screwdriver to tighten the large locking...
- Page 10 Assembly Instructions Step 15 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 11 Assembly Instructions Step 17 Fit the drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2 screws...
- Page 12 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3094...
