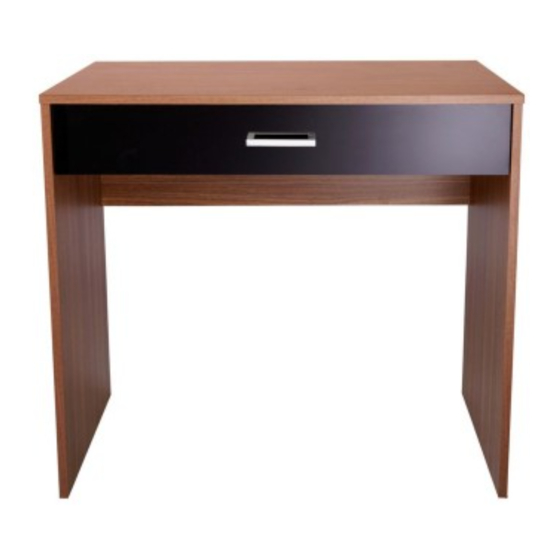

Caspian - 1 Drawer Desk
Assembly Instructions -
Dimensions
Width - 79.5cm
Depth - 44.5cm
Height - 72cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
343/8521
359/6645
MADE IN
BRITAIN
Issue 5 - 23/01/15
Advertisement
Related Manuals for Argos Caspian 343/8521
Summary of Contents for Argos Caspian 343/8521
- Page 1 Caspian - 1 Drawer Desk Assembly Instructions - 343/8521 Please keep for future reference 359/6645 Dimensions Width - 79.5cm Depth - 44.5cm MADE IN Height - 72cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 5 - 23/01/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 15kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D1914B) (D1915B) (D1916B) (795 x 444mm) (706 x 395mm) (706 x 395mm) Drawer Front...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the drawer front Note: Tighten metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place a runner the left side Slide back the top of runner and use the 1st hole from the front to fit the 1st screw Finished front edge Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place a runner the right side Slide back the top of runner and use the 1st hole from the front to fit Finished the 1st screw front edge Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 9 Assembly Instructions Step 10 Prepare the cross rail Insert 2 large locking nuts into the cross rail 10mm Tap 2 wooden dowels Finished into the cross rail front edge Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
- Page 10 Assembly Instructions Step 13 Note: The modesty must be flush with Fit the modesty the top edge of the right side. Push the modesty onto the right side Use a screwdriver to tighten the 2large locking nuts fitted to the modesty Note: Support the modesty until the left...
- Page 11 Assembly Instructions Step 15 Prepare the top Screw 4 metal dowels into the top Finished front edge Step 16 Fit the top Push the top down onto the side panels Use a screwdriver to tighten the 4 large locking nuts fitted to Finished the side panels...
- Page 12 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3098...
