Installation (Ducting System)
Observe the warning in the instruction sheet concerning the operation of the
appliance when air is discharged from the room
When the range hood and appliance supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must be not exceed
-5
4 Pa (4 × 10
Bar)
•

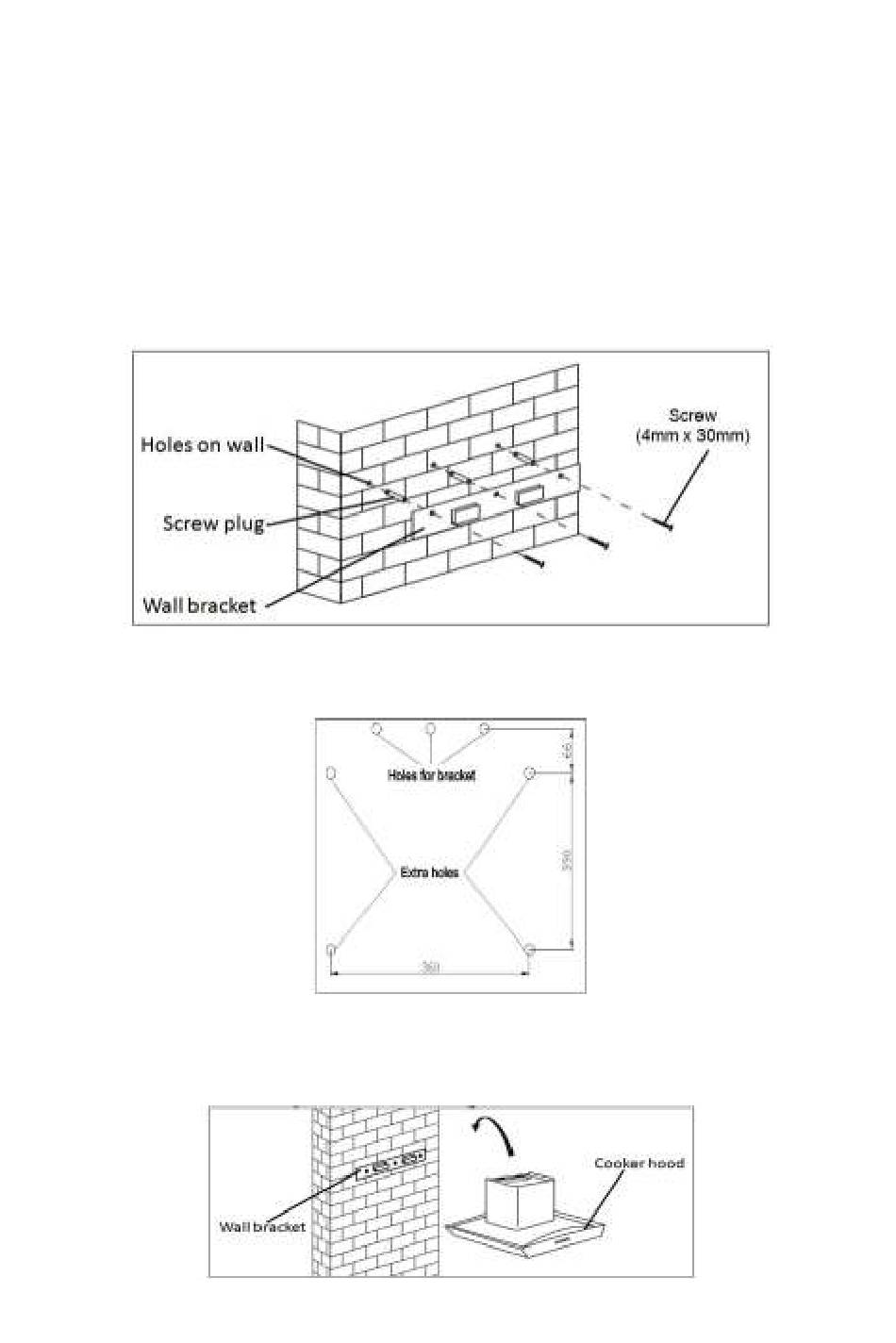

Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket
onto the wall with the screws & screw plugs provided
•
For inclined panel Model, need to drill 4 x 8mm extra holes & fixing screws &
screw plugs before installation.
• Leave up the exhaust hood and hang onto the wall bracket hook.
13
