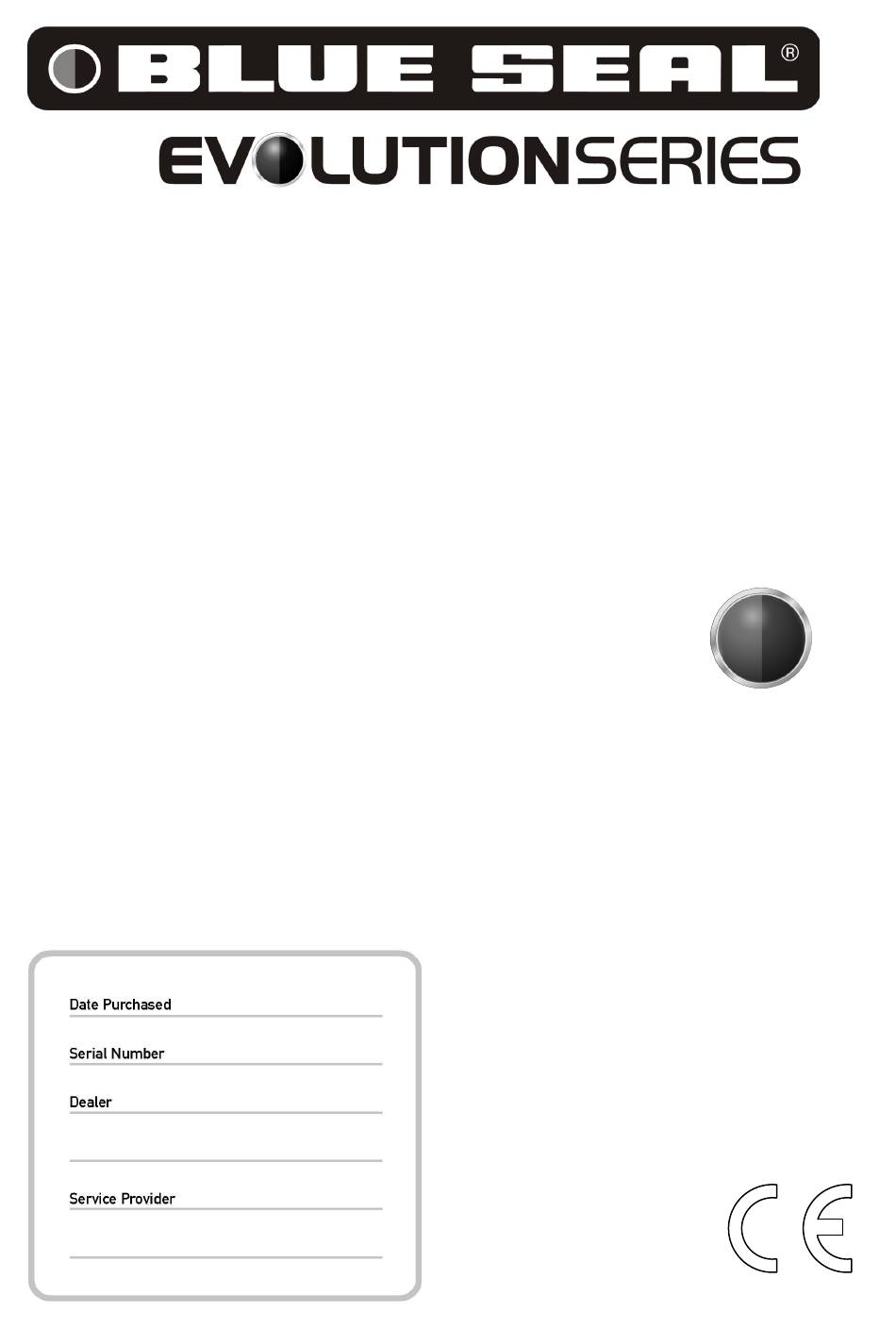

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS PASTA COOKER G4 7 230009-17...
- Page 2 (tel): 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
- Page 3 GAS PASTA COOKER - (Single Tank - 40 Ltr) Model Numbers Covered in this Specification General Optional Accessories Gas Supply Requirements Gas Connection Water Supply Requirements Installation Requirements Unpacking Location Clearances Assembly Gas Connection Water Connection Drainage Connection Commissioning Operation Guide Description of Controls Before Use Filling the Tank...
- Page 4 We are confident that you will be delighted with your BLUE SEAL Pasta Cooker and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new BLUE SEAL Appliance, there are two important things you can do.
- Page 5 PASTA COOKER (Single Tank - 40 Ltr). A commercial heavy duty, gas fired high performance Pasta Cooker designed for pasta cooking commercial high production output, using LPG (Propane) or Natural Gas. The boiling medium is contained within a heavy gauge stainless steel tank, heated by one infra red surface burner from beneath the tank.
- Page 6 - All Other Markets: Input Rating (N.H.G.C.) 46 MJ/hr 47 MJ/hr 47 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 0.92 kPa 2.6 kPa 2.6 kPa Gas Connection ¾” BSP Male NOTE: ...
-
Page 8: Combustion Air Requirements
Blue Seal pasta cookers are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. - Page 9 Plinth Kit. For installation details, refer to instructions supplied with each kit. NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. Blue Seal Pasta Cookers do not require an electrical connection, they function totally on gas supply only.
- Page 10 NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that appliance is level and at correct height. Connect gas supply to appliance. Check gas operating pressure is as shown in the ‘Specifications’...
-
Page 11: Installation
The following commissioning checks must be carried out before pasta cooker is handed over for use, to ensure the unit operates correctly and operator(s) understand correct operating procedure. Before leaving new installation; a. Check the following functions in accordance with operating instructions specified in ‘Operation’ section of this manual. - Page 12 Blue Seal 'Pasta Cookers have been designed to provide simplicity of operation and 100% safety protection. EVER OPERATE APPLIANCE WITH ONTROL ALVE BETWEEN LAME AND ILOT POSITION Improper operation is almost impossible, however bad operation practices can produce a poor quality product.
- Page 13 REAT CARE MUST BE TAKEN BY OPERATOR TO USE THE PASTA COOKER SAFELY TO GUARD AGAINST RISK OF INJURY AND FIRE DO NOT LEAVE PASTA COOKER UNATTENDED DURING OPERATION DO NOT OVER FILL WATER IN PASTA COOKER ABOVE UPPER FILL LEVEL MARK ...
- Page 14 With pasta cooker tank full of water, pilot burner can be lit. Check gas supply is turned On at mains supply. Depress and rotate gas control knob to ‘Pilot’ position and hold knob depressed. Open front access door of appliance and depress piezo igniter, located on bulkhead panel, until pilot burner ignites.
- Page 15 Clean the pasta cooker regularly. A clean pasta cooker looks better, will last longer and will perform better. A dirty pasta cooker will hinder transfer of heat from cooking surface to food. This will result in loss of cooking efficiency. DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY OF PASTA COOKER HOT.
- Page 16 Opening the Drain Valve HOT WATER WILL SCALD - DO NOT RUSH THIS JOB. a. Lift locking slide on valve handle (Fig 5) to release valve. b. While holding locking slide in withdrawn position, rotate handle anticlockwise (Fig 6) to open valve.
-
Page 17: Stainless Steel Surfaces
DO NOT ATTEMPT TO MOVE PASTA COOKER WHILST COOKER IS FULL OF WATER. BEFORE ATTEMPTING TO MOVE PASTA COOKER, ENSURE THAT ALL WATER HAS BEEN DRAINED FROM TANK. REFER TO INFORMATION ON PREVIOUS PAGE ON HOW TO DRAIN WATER FROM PASTA COOKER. NOTE: ... - Page 18 This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
- Page 19 G47 Pasta Cooker...
- Page 20 NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. Adjustment of components that have adjustments / settings sealed (e.g. paint sealed) can only be adjusted in accordance with the following instructions and shall be re-sealed before re-commissioning this appliance.
- Page 21 NOTE, Pin rotated - NAT Gas / LPG / Butane Only. for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet NOTE, Pin rotated pressure is fixed ex-factory and for LPG is NOT to be adjusted. On completion of gas conversion, replace gas type labels located at:- - Rear of unit, above gas connection.
- Page 22 - Australia Main Burner Injectors Ø 3.10mm Ø 1.90mm 0.62 0.35 Pilot Burner Injectors Low Fire Screw Ø 1.55mm Ø 1.55mm Fully Out (c.c.w.) Fully Out (c.c.w.) High Fire Screw 1.13 - 3.40 kPa 2.75 - 4.50 kPa Supply Pressure 0.92 kPa 2.6 kPa Burner Operating Pressure (*)
- Page 23 - All Other Markets: Main Burner Injectors Ø 3.10mm Ø 1.80mm Ø 1.70mm 0.62 0.35 0.35 Pilot Burner Injectors Ø 1.55mm Ø 1.55mm Ø 1.55mm Low Fire Screw 2 turns out (c.c.w.) Fully In (c.w.) Fully In (c.w.) Fully Out (c.c.w.) Fully Out (c.c.w.) Fully Out (c.c.w.) High Fire Screw...
-
Page 24: Replacement Parts List
Replacement Parts List ! IMPORTANT When ordering spare parts, please quote part number and description as listed below. If part required is not listed below, request part by description and quote model number and serial number which is shown on rating plate. Controls 018094 Thermocouple.
