- Page 1 INSTRUCTION MANUAL H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! Pl ease read t hi s m anual caref ul l y bef ore operat i ng t hi s pl ane.
-
Page 2: Safety Precautions
H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! WARNING Read this instruction manual fully so as to become completely familiar with the features of the product before operating. Failure to operate this product correctly could result in damage to the product, personal property and cause serious injury. -
Page 3: Specification

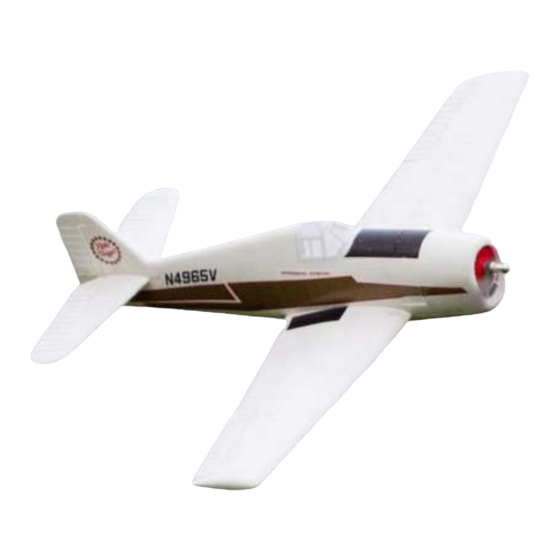

INTRODUCTION: The H-King F6F Hellcat "Little Nugget" is the second in the "Reno Aces" mini-series from H-King, they are WW2 fighters dressed to impress at the air races. The F6F Hellcat "Little Nugget" with the included stock 3108-1070KV brushless motor offers a really hot-rod performance straight out of the box, speeds approaching 100mph are possible when using the recommended 2200mAh 4S LiPo. -
Page 4: Vertical Stabilizer
H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! CONTENTS: 1. Vertical Stabilizer 2. Fuselage 3. Main wing 4. Horizontal stabilizer 5. Machine screw M3 x 40 mm 6. Nylon wing bolt 7. Hook and Loop double sided tape 8. - Page 5 Installation of the vertical and horizontal stabilizers: Before you install the horizontal stabilizer, dry fit it onto the seating at the rear of the fuselage as shown. Press the horizontal stabilizer lightly against the rear of the seating area so as to leave a mark on the foam.
- Page 6 H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! Install the vertical stabilizer onto the horizontal stabilizer. As you do this insert the hinge into the pre-cut hinge slot in the rudder as shown. Note: Take extra care here to avoid breaking the foam hinge on the rudder as you gently slide the bottom hinge into the slot.
- Page 7 Apply a drop of foam safe CA glue to the hinge on the rudder, check that the rudder moves freely with no binding as the glue dries. Connect the elevator pushrod to the control horn as shown using the supplied quick-keeper. Connect the rudder pushrod to the control horn as shown using the supplied quick-keeper.
- Page 8 H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! Wing Installation: Remove the canopy hatch by pulling the clear plastic tag at the rear. Connect the supplied Y servo lead to the set of aileron servo leads, then feed them through the access hole at the wing seating area as shown.
- Page 9 Radio installation: Use the supplied hook and loop self-adhesive tape to secure your chosen receiver to the inside of the radio compartment. We recommend that you now setup your radio and the servo throws etc. WARNING: DO NOT INSTALL THE PROPELLER ONTO YOUR PLANE UNTIL THE RADIO SETUP HAS BEEN COMPLETED.
- Page 10 H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! Propeller installation: Slide the propeller adapter onto the motor shaft, then the propeller and then screw on the spinner nut. Insert a 2mm Allen Key or 2mm Tommy Bar through the hole in the spinner nut. Hand tighten the spinner nut until the prop and the adapter are locked securely onto the motor shaft.
- Page 11 Control set-up and CG: CG 62-68mm C of G is 62-68mm from the leading edge of the wing.
-
Page 12: Pre-Flight Checks
H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! Congratulations you have now fully assembled your H-King Hellcat 'Little Nugget' and are ready for flight. However it is recommended you read and follow the advice and tips given in the following pages before you fly this model. -
Page 13: Flying Tips
Flight: In flight the Hellcat "Little Nugget" is well behaved and stable throughout the speed range. With the low rate settings as outlined in this manual the Reno Aces Hellcat "Little Nugget" is smooth to control and at full speed carves effortlessly through the air in turns and graceful maneuvers. In the high rate setting the Hellcat "Little Nugget"... -
Page 14: Problem Solving
H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! PROBLEM SOLVING: Phenomenon Typical error Problem solving 1. The battery is not full charged 1. Charge the battery Motor does not run 2. The battery of the transmitter is 2. Replace the battery in the transmitter. -
Page 15: Spare Parts
SPARE PARTS: Hatch Cover w/Canopies Cowl w/Decals Fuselage Set w/Decals SKU: 9898000031-0 SKU: 898000033-0 SKU: 9898000035-0 Vertical Stabilizer Propeller Adapter Horizontal Stabilizer SKU: 9898000032-0 SKU: 9898000047-0 (Collet Type) 4MM SKU: GON-D4T6 Wing Set w/Decals 8x6 Propeller SKU: 9898000030-0 SKU: 9898000052-0... -
Page 16: Recommended Accessories
H-Kings 990mm span Plug & Fly sports-scale F6F hot rod! RECOMMENDED ACCESSORIES: OrangeRx Tx10i Mode 2 Turnigy 9X 9Ch Transmitter OrangeRx R720X V3 7Ch w/ Module & iA8 Receiver 2.4GHz DSMX EU Version SKU: 9171001399-0 SKU: 9114000070-0 SKU: 9171001395-0 Turnigy Graphene Panther Turnigy Graphene 2200mAh 4S OrangeRx RSF08SB Futaba 2200mAh 4S 75C Battery... -
Page 17: Recommended Parts
RECOMMENDED PARTS: Turnigy Accucel-6 80W Turnigy Accucell S60 AC Foam-Cure EPP and EPO Foam 10A 1~6S Balancer/Charger Charger Glue 4 oz. SKU: 9052000155-0 SKU: 9117000006-0 SKU: 9052000138-1 HobbyKing Super Glue CA HobbyKing Super Glue CA UHU POR Glue SKU: SKU: 9934000001-0 (50g / 1.7oz) Thick (50g / 1.7oz) Medium SKU: HC-50-1100C... - Page 18 APEX CE SPECIALISTS LIMITED 89 Princess Street, Manchester, UK REP M1 4HT, UK APEX CE SPECIALISTS LIMITED Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, T23 AT2P, Ireland...
