Summary of Contents for RKI Instruments 65-2438

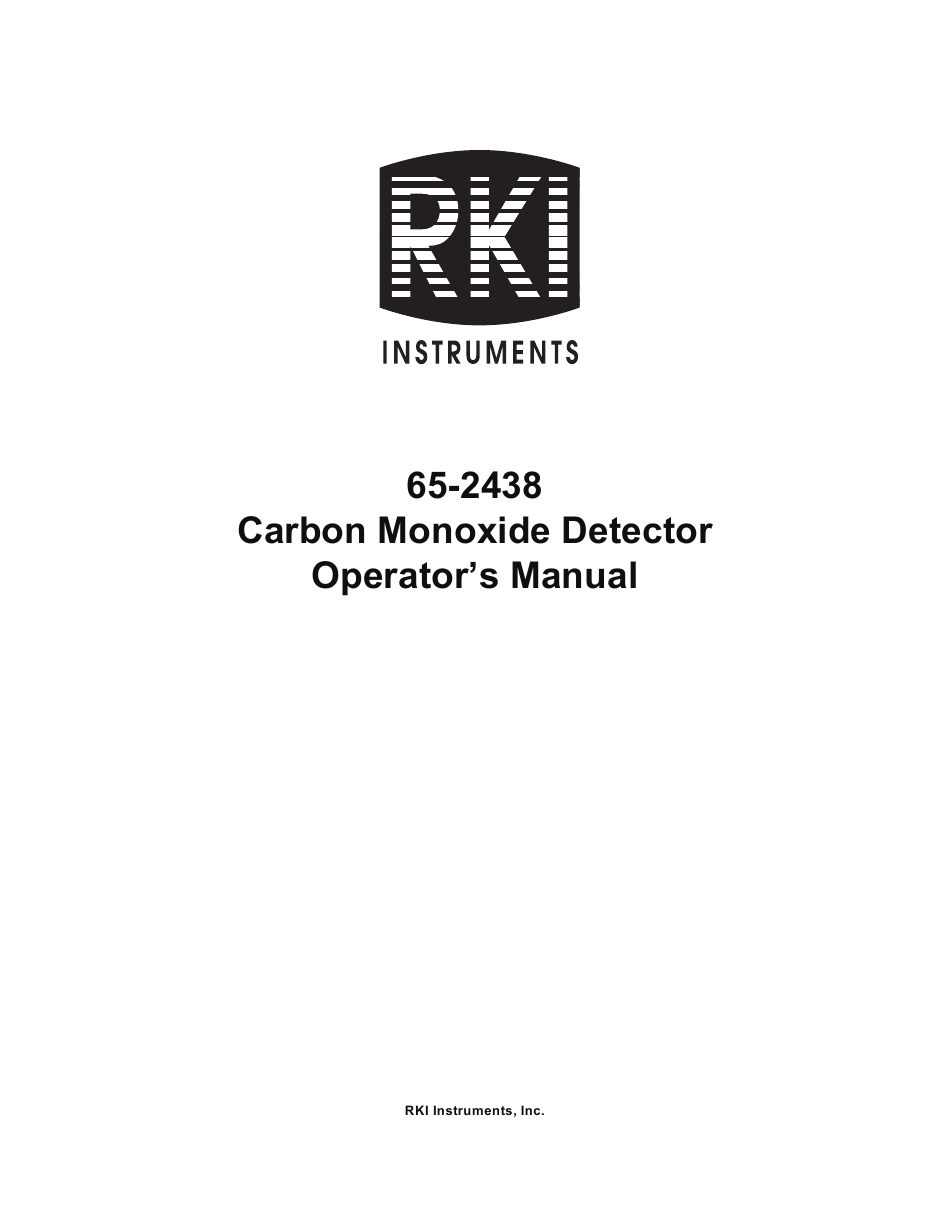

- Page 1 Part Number: 71-0343 Revision: A Released: 7/7/20 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 WARNING GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 3 INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF ITS PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR OPERATE PROPERLY.
- Page 4 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 5 WARNING: When using the 65-2438, you must follow the instructions and warnings in this manual to assure proper and safe operation of the 65-2438 and to minimize the risk of personal injury. Be sure to maintain and periodically calibrate the 65-2438 as described in this manual.
- Page 6 Detector Housing Body Cap Gasket Plug-In CO Sensor Rubber Boot With Charcoal Filter Detector Housing Cap Flame Arrestor Guard GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 7 Shrink Tubing 3/4 NPT 0.75 3.59 Ø 1.75 1-1/2 20 Thread for Calibration Cup CAUTION: Mount the CO detector with the detector facing down (see Figure 2). GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 8 WARNING: Always verify that the power source is OFF before you make wiring connections. WARNING: To maintain the explosion proof classification of the CO detector/junction box combination, a conduit seal must be used within 2 inches of the junction box conduit hub used for wiring to the controller.
- Page 9 Controller Detector Terminals Black CAUTION: Allow the detector to warm up for 5 minutes before you continue with the next section, “Setting the Zero (Fresh Air) Reading”. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 10 WARNING: If the detector installation is explosion proof, do not remove the detector housing cap or junction box cover while the circuits are energized unless the area is determined to be non-hazardous. Keep the detector housing cap and junction box cover tightly closed during operation.
- Page 11 Note: Under “normal” circumstances, the transmitter requires calibration once every 3 months. Some applications may require a more frequent calibration schedule. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 12 Replacing the Plug-In CO Sensor CAUTION: The sensor contains electrolyte which is a dilute acid. Do not disassemble the sensor when replacing it with a new one. If sensor electrolyte comes in contact with your skin, wash affected area thoroughly with soap and water. WARNING: The sensor will not operate properly if the wire jumper is not removed.
- Page 13 CAUTION: Allow the replacement sensor to warm up for 5 minutes before you continue with the next step. Replacing the Charcoal Filter Replacing the CO Detector GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 14 CAUTION: Allow the replacement detector to warm up for 5 minutes before you continue with the next step. WARNING: Do not remove the detector housing cap while the circuits are energized unless the area is determined to be non-hazardous. Keep the detector housing cap tightly closed during operation.
- Page 15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 16 65-2438 CO Detector Operator’s Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
