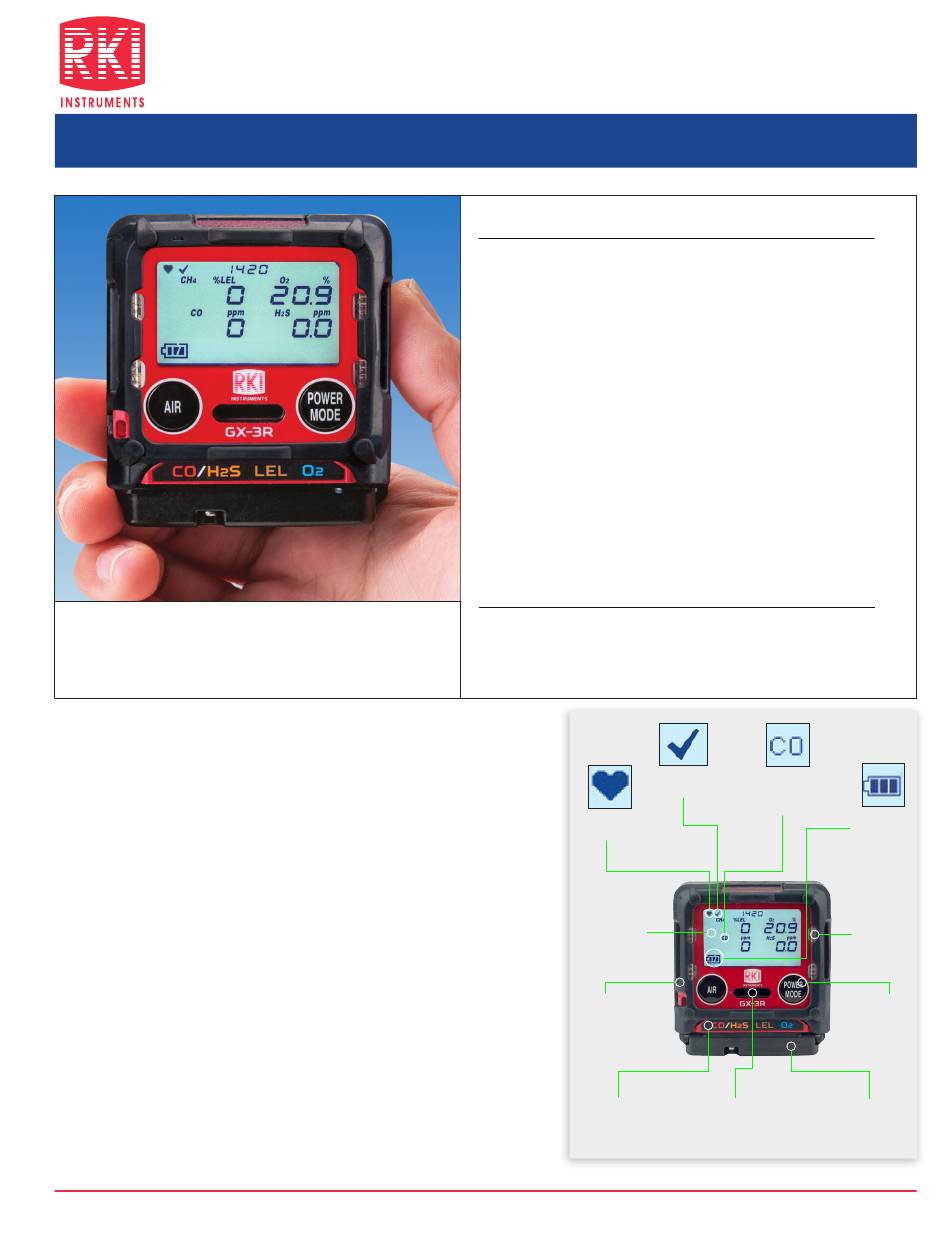

Gas Detection For Life
4
World's Smallest and Lightest
Gas Monitor
OSHA defines the breathing zone as a ten inch radius around the
worker's nose and mouth, and requires that worker exposure monitoring
air samples be collected in the breathing zone. Air sampling filters
may be attached to the collar or lapel. Traditionally this means only a
single gas monitor would be small enough for a worker to practically
wear a gas monitor 'In the breathing zone'. Now there is a 4 gas
monitor smaller than many single gas monitors.
The GX-3R is the worlds smallest 4 gas monitor weighing only 3.52
ounces and can comfortably be clipped within a worker's breathing
zone (2.2" W x 2.55" H x 1.02" D). It simultaneously monitors and
displays LEL combustibles, O2, CO (Hydrogen compensated CO also
available), and H2S.
The GX-3R represents the latest evolution of gas detection technology
utilizing a new generation of micro sensors. The LEL sensor has a
unique design with two active filaments in one sensor to increase it's
resistance to silicone poisoning. If one filament gets poisoned the
second filament takes over. The new O2 sensor is electrochemical with
a 3 to 5 year life span. H2S and CO are now available in a combo
micro sensor.
Safety supervisors will appreciate the non-compliance indicator. The
instrument flashes it's 3 LED lights every 30 seconds in the following
conditions; if the instrument has not been bump tested, or if calibration
is due, or if there was a gas alarm event. The 3 LED lights will continue
to flash once every 30 seconds until the non-compliance condition has
been resolved. The 30 second interval is adjustable.
•
RKI Instruments, Inc.
33248 Central Ave. Union City, CA 94587
SMALLEST & LIGHTEST 4 GAS MONITOR
Features
• Smallest & lightest 4 gas monitor
• Simultaneous detection of 4 gases
• Simple 2-button operation
• Non-Compliance Indicator
• Alarms: audible, visual, & vibration
• 3 user adjustable alarm levels
• Impact resistant body with removable rubber boot
• Large LCD Auto-backlit display
• 25 hours of operation (Lithium-ion battery)
• Field replaceable sensors & filters
• Water and dust resistant design, IP66/68
• Stealth mode for law enforcement
• 3 Year warranty
• Personal monitoring
• Confined spaces
• Refineries/petrochemical
• Utilities
World Leader In Gas Detection & Sensor Technology
www.rkiinstruments.com
— 2.2" W x 2.55" H x 1.02" D, 3.52 ounces
— LEL, O2, H2S & CO
— H2 Compensated CO sensor available
Applications
Bump test
Health Check
Indicator
LCD
Autobacklit
display
Removable
Impact resistant
boot
Easy to replace
color-coded
sensors
•
Phone (510) 441-5656
GX-3R Model
• Oil and Gas
• Water/wastewater
• Fire services
• Construction
H2 Compensated
passed
CO Sensor
available
Battery Life:
alarm LED's
Replaceable
Audible
Sensor/Filters
Alarm port
•
•
(800) 754-5165
Fax (510) 441-5650
G3R-2207/2000
25 hours
3 visual
2-Glove
friendly
button
operation
