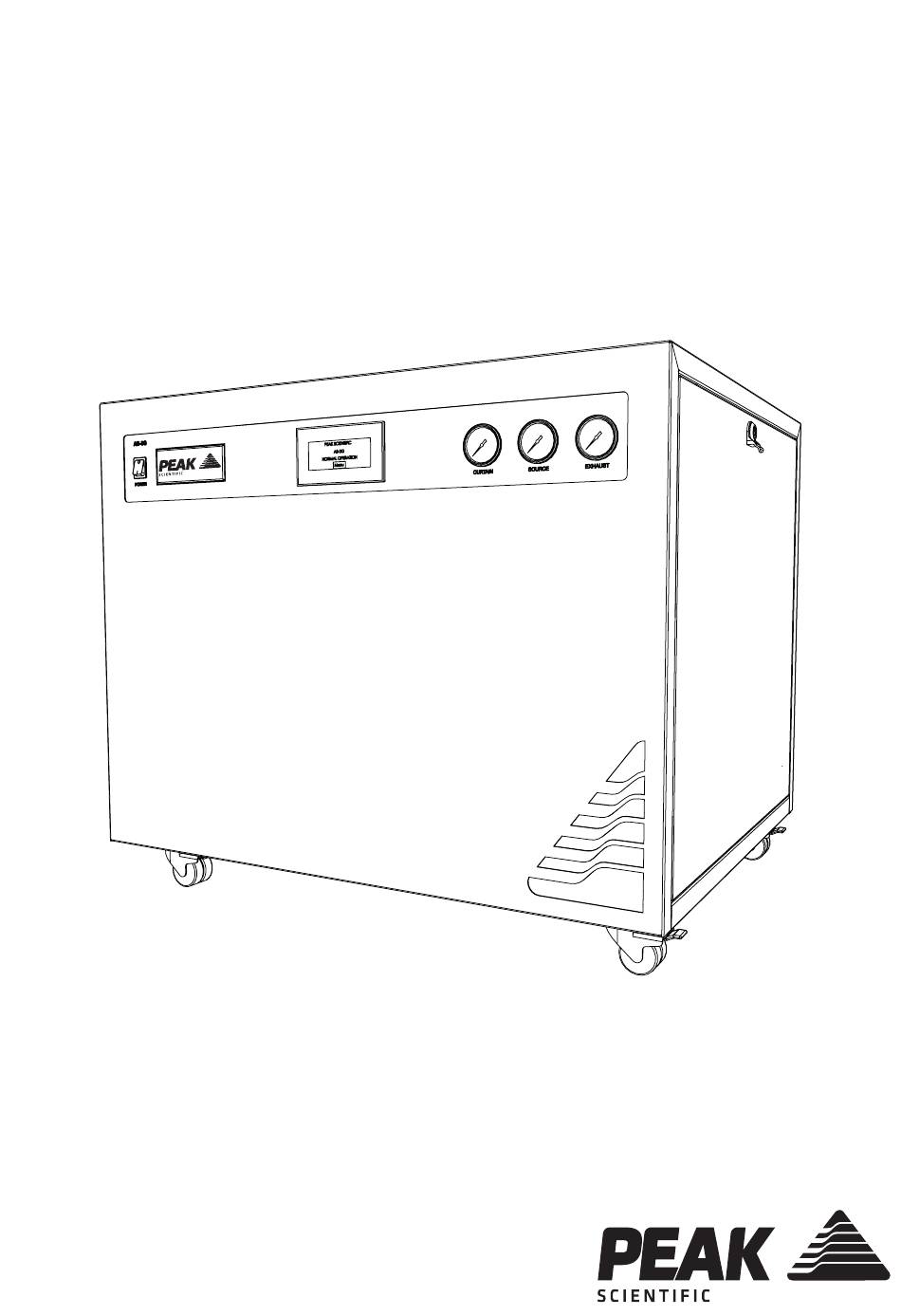

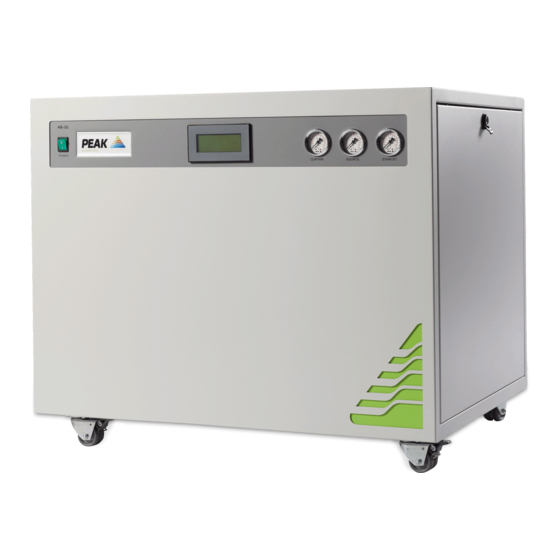

- Page 1 Genius AB-3G Installation Guide GeniusAB-3G Installation Guide Rev 1 PN 3300042 21/12/16...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit US Mains Cable C19 6-15 04-1024 8mm Hex Key 00-0007 1/4” Compression Fitting 02-4421 4x3m UK Mains Cable C19 04-1025 1/4” Teflon Tubing 00-1266 1/4” - 6mm Push Fit Fitting 02-4600 EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 Page 4... - Page 5 0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. CLOSED OPEN First remove the compressor transit brackets. These can be accessed by removing the generator top panel. Using a Pozidrive #1 screwdriver turn each screw shown 90°...
- Page 6 An earth lead is connected to the inside of the panel. This can be disconnected by pulling it off the spade connector on the panel. Remove the 8 mounting screws, circled, then lift the transit brackets out, starting with the two on the centre compressor. Do not discard the transit brackets or screws as these will be needed again if the unit is to be transported from its current location.
- Page 7 Re-attach the top panel. Ensuring the earth lead is re-connected. 02-4600 Select the ¼”- 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator. Page 7...
- Page 8 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container. The container MUST NOT have an airtight seal as water and air will be expelled periodically under pressure.
- Page 9 Once unlocked remove the right hand side panel, ensuring you disconnect the earth lead from the panel. 04-1024/04-1025/04-1026 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19 cable into the mains input at the rear of the generator. Page 9...
- Page 10 CAUTION 230V 230VAC 50/60Hz Plug the mains cable into the corresponding 230VAC 50/60Hz single phase power supply. CAUTION ensure the correct cable has been selected for your electrical supply Switch the generator ON using the switch on the front panel. Page 10...
- Page 11 Check the Generators internal voltmeter. This will measure and display the mains voltage that is being supplied to the generator. Not the displayed voltage. If the voltage is 219V or less, we would highly reccomend fitting a transformer. This can be ordered directly from Peak.
- Page 12 CAUTION Remove the mains cable completely from the power supply. Re-attach the right side panel to the generator, ensuring the earth lead is re-connected and the lock is secured. Page 12...
- Page 13 CAUTION With the side panels securely re-attached, the mains power supply can be re-connected. Switch the generator ON using the switch on the front panel. Page 13...
- Page 14 Confirm The Generator will then ask you to confirm the removal of the transit brackets. The unit will not start until the user has pressed the confirm button. Peak Scientific AB-3G DIAGNOSTICS RUNNING The unit will now begin an Installation Diagnostics Sequence. This will take approx.
- Page 15 Confirm During diagnostics the user will be asked to confirm correct drainage connection. The diagnostics will be paused until confirm has been pressed. Peak Scientific AB-3G DIAGNOSTICS COMPLETE PLEASE WAIT Once diagnostics have been completed the unit will take a couple of minutes to be ready for use.
-
Page 16: Normal Operation
Acknowledge Once pressure is within the normal operating limits the buzzer will sound two shorts beeps to signify the unit is ready for use, and a reminder to register the unit will be displayed. Peak Scientific AB-3G NORMAL OPERATION Menu When an option has been selected, the unit will display ‘NORMAL OPERATION’. - Page 17 minutes Leave the generator switched on for a period of 30 minutes to purge the system. After 30 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. Page 17...
- Page 18 The purge is now complete. Once the pressure gauges on the front of the generator read 0, the fittings can be connected to the generators gas outlets. 02-4421 Select the ¼” Compression Fittings 02-4421 and connect to the CURTAIN, SOURCE &...
-
Page 19: Please Wait
Switch the generator power ON using the switch on the front panel. Peak Scientific AB-3G PLEASE WAIT Menu The unit will now display ‘PLEASE WAIT’ while sufficient operating pressures are reached. This may take up to 20 minutes. Page 19... - Page 20 The pressure gauges will again gradually increase to the factory set pressures. Peak Scientific AB-3G NORMAL OPERATION Menu Once the output and tank pressures are up to operating conditions the unit will display ‘NORMAL OPERATION’. Page 20...
- Page 21 CONGRATULATIONS Your Peak Scientific gas generator is now fully installed. operational and ready to supply gas on demand to your instrument. Page 21...
-
Page 22: General Notes
General Notes Electrical requirements are 230VAC nominal +/- 10% depending on chosen model. However, running continuously at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. The Teflon tube supplied in the fittings kit is to allow the generator to be installed adjacent to the instrument it is supplying. - Page 23 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
