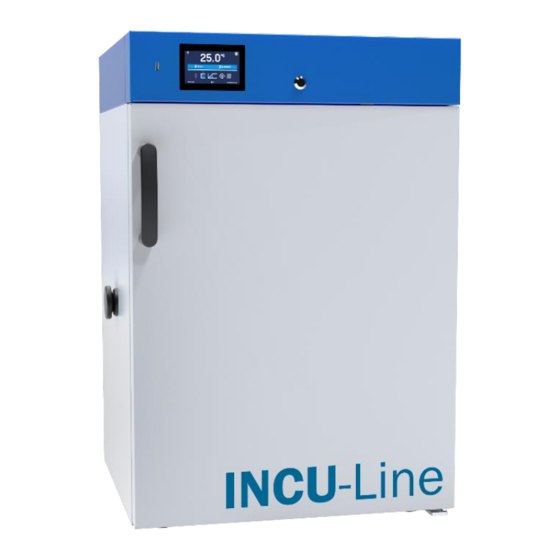

- Page 1 ® INCU-Line Cooled Incubators Instruction Manual European Catalogue Number(s): IL 68R: 390-1341 IL 150R: 390-1342 IL 250R: 390-1343 Before using the equipment, please read carefully this instruction manual! Version 2.0 Issued 1.12.2019...
- Page 2 Instruction Manual INCU-Line Cooled Legal Address of Manufacturer: Country of Origin: Poland Equipment disposal This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of with unsorted waste. Instead it's your responsibility to correctly dispose of your equipment at lifecycle -end by handling it over to an authorized facility for separate collection and recycling.
- Page 3 Instruction Manual INCU-Line Cooled Page 3 / 50...
- Page 4 Instruction Manual INCU-Line Cooled Page 4 / 50...
-
Page 5: Table Of Contents
Instruction Manual INCU-Line Cooled Contents INTENDED USE AND IMPORTANT INFORMATION FOR THE USER ......7 PACKAGE CONTENTS ....................8 BEFORE THE FIRST USE ..................... 8 3.1. Installation of shelves ....................9 3.2. Remarks on the type of samples ................10 3.3. - Page 6 Instruction Manual INCU-Line Cooled 5.12. Time ....................... 32 5.13. Alarms ......................34 5.14. Network ......................35 5.15. Defrosting ....................... 36 5.16. Corrections ..................... 36 MODBUS TCP interface ....................37 COMPONENTS OF THE DEVICE ................38 7.1. Internal socket ....................... 38 7.2.
-
Page 7: Intended Use And Important Information For The User
Instruction Manual INCU-Line Cooled 1. INTENDED USE AND IMPORTANT INFORMATION FOR THE USER To guarantee your security and the longevity of the unit, please comply with the following rules: The unit cannot be installed: • outside, • in damp places or places which can be easily flooded, •... -
Page 8: Package Contents
C. Multilingual instruction manual can be downloaded from internal memory on USB Stick INCU-Line 150R, 2 wire shelves with set of slides – 2 pcs. each, 1 bottom wire shelf with set of slides (2 pcs.), keys to the lock (2pcs.), manufacturer test certificate at 37 C. -
Page 9: Installation Of Shelves
Instruction Manual INCU-Line Cooled • The unit should be placed at least 100 mm away from the wall • The height of the room must be at least 300 mm higher than the height of the unit • The unit is not designed to be built-in •... -
Page 10: Remarks On The Type Of Samples
Instruction Manual INCU-Line Cooled To remove a shelf, perform the above steps in reverse order. To remove the shelf holder from the slots, lift it up and slide it towards the rear of the chamber. 3.2. Remarks on the type of samples Water may gather on the bottom of the chamber. -
Page 11: Closing The Chamber Door
Instruction Manual INCU-Line Cooled Front view Shelf Hmax = 2/3H Top view u+v+w > 1/3 a x+y+z > 1/3 b u v w x y z Following the above rules will provide best optimal parameters of temperature stability and uniformity. -
Page 12: Device Description
Instruction Manual INCU-Line Cooled 4. DEVICE DESCRIPTION 1) USB socket 2) Electronic controller with 4.3” touch panel 3) Door lock 4) Chamber fan 5) Temperature sensors 6) Internal glass door (only IL 150R/IL 250R) 7) Entry port (Ø 30mm) on left side... -
Page 13: Device Operation
Instruction Manual INCU-Line Cooled 5. DEVICE OPERATION This symbol means that a given field / window can be moved in the direction shown in the picture. 5.1. Internal memory During using the unit, it may be necessary to write or read the data from the external memory – a USB flashdrive. -
Page 14: Main Screen
Instruction Manual INCU-Line Cooled 5.3. Main Screen After switching on the device, the Main Screen (Figure appears. It contains the information about the device status. Figure 2 - Main Screen 5.3.1. Alarm bar The colour of the bar indicates the status of the device: –... - Page 15 Instruction Manual INCU-Line Cooled 5.3.2.1. Status Figure 3 - Status - icons Internal light is switched on Closed door, open door. The number above the icon presents open door counter, press the icon to cancel the counter. The counter is also cancelled during turning on the device Icon for the fan.
-
Page 16: Alarms Panel
Instruction Manual INCU-Line Cooled 5.3.3. Alarms panel In this place appears the list of alarms. With active alarm, the control bar is red. The alarm event is displayed in the list, with the status alarm active. When an alarm event stops, the alarm remains in the list as inactive. -
Page 17: Status Panel
Instruction Manual INCU-Line Cooled 5.3.4. Status panel The status of the device is indicated by description. Figure 7 – Status - description program name The name of program current segment Currently performing segment / total number of segments in the program »... -
Page 18: Programs
Instruction Manual INCU-Line Cooled 5.4. Programs In this panel (Figure 8) you can run the selected program, add a new one, edit the program or delete it. Menu push buttons: Run the selected program Stop the program Add a new program... -
Page 19: Segments Edition
Instruction Manual INCU-Line Cooled • Priority – the priority of time or parameters, more information » page 21 • Loop – the number of program repetitions, more information » page 21 Figure 9 - Program parameters Cancels adding or editing of the program Switching to the edition of program segments 5.4.2. - Page 20 Instruction Manual INCU-Line Cooled Figure 10 - Program segment edition The ramp parameters are set to the values recommended by the manufacturer. If it is necessary to set individual parameters, activate the edit ramp field and set your own values.
-
Page 21: Summary Of Segments
Instruction Manual INCU-Line Cooled 5.4.3. Summary of segments In the summary in the figure all segments (Figure 12) are visible along with the entered settings: • segment number, • Temperature, duration time, target time of reaching temperature of a given segment. -
Page 22: Protection Class
Instruction Manual INCU-Line Cooled The program with a ramp – first, the device counts down the time of the ramp and then proceeds to the segment countdown when the set temperature is reached. Regardless of whether the time of ramp elapsed. -
Page 23: Starting The Program
Instruction Manual INCU-Line Cooled 5.5. Starting the program You can start the program in two ways: The first way • „programs” in main menu Press the icon (Figure 14). • Then select the program you want to activate and press „Start” button (Figure 15). - Page 24 Instruction Manual INCU-Line Cooled Figure 15 - List of programs The second way • In the main panel (Figure press the icon in the upper right corner. • By pressing the icon you will go to the program selection window (Figure 17).
-
Page 25: Quick Change Of Parameters
Instruction Manual INCU-Line Cooled Figure 17 - Starting the program It’s possible to start a backdated scheduled program but only for programs with time priority and scheduled max. 7 days back. Program segments which last for a total period from the current date to the current date will be skipped. -
Page 26: Quick Change Set Time
Instruction Manual INCU-Line Cooled Figure 18 - Quick change of temperature 5.6.2. Quick change set time In order to quickly change the duration time of a running program, press the icon in main screen (Figure Select the number of days, hours and minutes by strolling the list up or down (Figure 19). -
Page 27: Statistics
Instruction Manual INCU-Line Cooled Statistics 5.7. This panel displays statistics about the currently running program or program that has ended. Statistics are calculated separately for each segment and for a current cycle. Data logging starts for calculation after 30 seconds from reaching the set temperature in the segment. The next data is registered every 1 minute. -
Page 28: Data Record
Instruction Manual INCU-Line Cooled Data record 5.8. Register window (Figure 22) contains the following information: • Time and date of sample registration [date], • Temperature value from the main sensor in the chamber [temp.]. It is possible to register 10 000 data records to use for the max period of 6 months. If all the memory cells are full, the oldest ones are overwritten. -
Page 29: Event Log
Instruction Manual INCU-Line Cooled Data recording onto the USB flash drive. .csv files are available - semicolon separated by opening eg with a spreadsheet, .plkx - opening with the Premium Control applica- tion Deleting data. Event log 5.9. The window displays information about registered events, alarms and errors. - Page 30 Instruction Manual INCU-Line Cooled Possible events: Date/time change data/time were changed DeviceOn the device is switched on (on the main switch) DeviceOff the device is switched off (on the main switch) Door closed the door is closed Door opened the door is opened...
-
Page 31: Info
Instruction Manual INCU-Line Cooled Info 5.10. The panel contains the following information: • Software versions, • name of device, • manufacturer’s address, • manufacturer’s website. Figure 24 – Info window to save the “Download” folder (with instruction manual) on the USB memory stick. -
Page 32: Time
Instruction Manual INCU-Line Cooled Figure 25 – Interface settings Confirms and saves changes Cancels the entered changes Time 5.12. In this panel you can: • change date / system time, • change time zone Date and time cannot be changed while the program is running. - Page 33 Instruction Manual INCU-Line Cooled Figure 26 – Time Figure 27 – Date settings Confirms and saves changes Cancels the entered changes The same time zones are required for correct operation of programs on the device and com- puter. Page 33 / 50...
-
Page 34: Alarms
Instruction Manual INCU-Line Cooled Alarms 5.13. You can set parameters related to alarms. • lower alarm – an alarm will be generated if the temperature drops below the value given in this field • upper alarm – an alarm will be generated if the temperature rises above the value given in this field The lower and upper alarm can only be generated after reaching the set temperature. -
Page 35: Network
Instruction Manual INCU-Line Cooled Network 5.14. In this panel (Figure 29) you can change the settings for the LAN: • IP – the device’s IP address • Mask – an Ethernet network mask to which the device is connected •... -
Page 36: Defrosting
Instruction Manual INCU-Line Cooled 5.15. Defrosting All models are equipped with a special defrosting program (Figure 30). It appears on the list of programs available in the main screen after pressing the button Defrosting consists in temporarily turning on the heaters, whose aim is to defrost the coating of ice or frost on the chamber walls during normal use. -
Page 37: Modbus Tcp Interface
Instruction Manual INCU-Line Cooled geometrical centre of the chamber. For the correct operation of the device it is not necessary to use User’s calibration. The User is performing temperature correction on his own responsibility and s/he must be aware of consequences of changing of manufacturer’s settings. If the equipment was calibrated, calibra- tion certificate loses its validity. -
Page 38: Components Of The Device
The INCU-Line Cooled incubators have been equipped with an internal socket (230V, 50Hz) for EU plugs. Please contact VWR service if the internal socket needs to be changed to a UK or CH plug version. You can use it for connecting any electrical device inside the incubator. -
Page 39: Access Port
Instruction Manual INCU-Line Cooled 7.4. Access port Ø 30 mm access port can be used to insert an external temperature sensor, which has been secured with a silicon plug. The plug should cover the access port while the unit is operating. If multiple cables have been inserted through the access port and if it is not possible to use the plug, secure the access port with adhesive tape. -
Page 40: Usb Port
Instruction Manual INCU-Line Cooled 7.7. USB port To transfer data from the unit’s memory to the USB memory stick, connect the memory stick to the USB slot on the device. Go to Main Menu → Data record, press the button Select file type *.csv, *.plkx. -
Page 41: Temperature Protection
9. REMOTE CONTROL OF THE UNIT Every INCU-Line unit can be connected to the Ethernet network and controlled remotely using the Premium Control software (option). The features of the program have been described in a separate instruction manual. -
Page 42: Operation Of The Cooling System
Instruction Manual INCU-Line Cooled 10. OPERATION OF THE COOLING SYSTEM If the unit is operating in low temperatures the evaporator may get covered with ice, this can affect the lower cooling efficiency of the device. To ensure proper operation of the device you should obey these principles: At temperatures above +8ºC the air automatically defrosts the ice cover, defrosting is self-operating. -
Page 43: Exterior Cleaning
Instruction Manual INCU-Line Cooled When cleaning stainless steel product with dedicated cleaning solution, one should pay attention to the suggestions and recommendations given in the instruction manual (or in the safety data sheet) of the cleaning solution. 11.1. Exterior cleaning The housing of the device should be cleaned at least once a week, depending on the working con- ditions. -
Page 44: Advice On How To Safely Store The Device
• Complete technical service contact information • Access to VWR’s Online Catalogue, and information about accessories and related products • Additional product information and special offers Contact us for information or technical assistance contact your local VWR representative or visit www.vwr.com Page 44 / 50... -
Page 45: Possible Defects
Instruction Manual INCU-Line Cooled 13.1. Possible defects Malfunction What to check What to do The unit is not working Check the voltage in the socket Measure the voltage in the socket; if necessary, change the fuses in the electric installation... -
Page 46: Replacement Of The Fuse
VWR International warrants that this product will be free from defects in material and workmanship for a period of two (2) years from date of delivery. If a defect is present, VWR will, at its option and cost, repair, replace, or refund the purchase price of this product to the customer, provided it is returned during the war- ranty period. -
Page 47: Product Identification Label
Instruction Manual INCU-Line Cooled 15. PRODUCT IDENTIFICATION LABEL The product identification label is located in the upper left corner. Below there is an example of product identification label: 1. Logo 2. Type of device 3. Catalogue number 4. Serial number 5. -
Page 48: Technical Details
Instruction Manual INCU-Line Cooled 16. TECHNICAL DETAILS IL 68R IL 150R IL 250R Air convection forced Chamber capacity [l] Door type external glass door double (external solid + internal glass) Temperature range [ºC] +3...+70 Temperature resolution [ºC] every 0,1 microprocessor with a 4,3” full colour touch screen... - Page 49 Instruction Manual INCU-Line Cooled INCU-Line 150R models are stackable. These models have special embossed area on the top. The INCU-Line 68R and 250R models are not stackable! Page 49 / 50...
