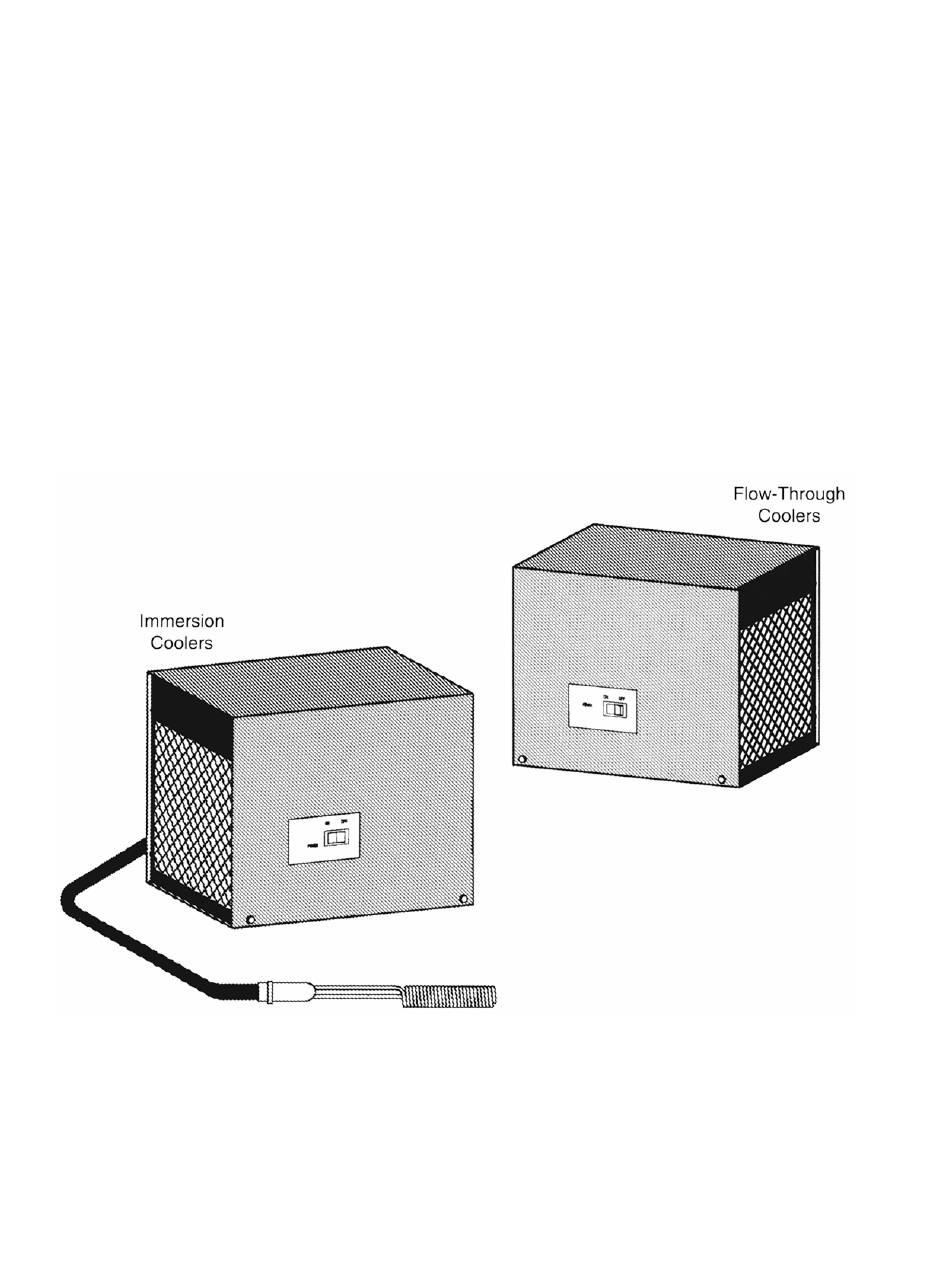

- Page 1 Operator Manual Flow-Through Coolers & Immersion Coolers 110-064 Rev. C 05/03...
-
Page 2: Table Of Contents
Table of Contents Section 1 – General Information Warranty Unpacking Package Contents Description of Models Specification Chart Section 2 – Operations Power Safety Overload Warning Choice of Fluids Operating Procedure For Immersion Coolers Operating Procedure For Flow-Through Coolers Application Notes Section 3 - Trouble Shooting Required Maintenance Problem &... -
Page 3: Section 1 - General Information
Section 1 – General Information Warranty Thank you for your purchase. We are confident it will serve you for a long time. Our warranty to you is as follows: The manufacturer agrees to correct for the original user of this product, either by repair, or at the manufacturer's election, by replacement, any defect in material or workmanship which develops within the warranty period. -
Page 4: Description Of Models
The fluid contact with the cold evaporator inner tube produces very efficient heat removal from the fluid. Specification Chart Model Flow Through Flow Through Immersion Probe Immersion Probe Immersion Probe... -
Page 5: Section 2 - Operations
Section 2 – Operations WARNING Do NOT circulate water through any Cooler unit. Do NOT use combustible or toxic fluids such as pure methanol. Do NOT use fluids corrosive to copper. Before proceeding, be sure the Power ON/OFF switch is in the OFF position. Power Plug the unit into a properly wired, grounded outlet with the same voltage and frequency indicated on the identification label on the back of the unit. -
Page 6: Operating Procedure For Immersion Coolers
Operating Procedure For Immersion Coolers Locate the Cooler unit so that the side air vents are unobstructed. Turn the Power Switch ON and immerse the probe in the fluid to be cooled. Periodically check the temperature of the fluid to determine if it is dropping at a reasonable rate. The -60°C Cooler is designed to reduce the temperature of a fluid in a dewar flask. -
Page 7: Section 3 - Troubleshooting
Section 3 - Troubleshooting Required Maintenance The refrigeration condenser fins are located just behind the front grill holes. Dust that accumulates will reduce the amount of cooling power available. The dust should be blown out with a compressed air hose. All other items are permanently lubricated and need no attention. Problem &... -
Page 8: Section 4 - Service And Technical Support
Coolers are intended to connect to other systems that pump, heat and control temperature. Coolers do not have thermostats and will only reduce temperature to as low as they can go. Refrigerant leak likely. A licensed refrigeration service person should recover refrigerant, find & repair leak, evacuate and recharge.
