Table of contents Chapter 1 Safety Information ........................... 1-1 Basic operating precautions ......................1-1 Safe usage instructions ........................1-2 Guarantee ............................1-2 Explanation of safety information and symbols................1-2 Intended use of the device......................... 1-4 Chapter 2 Delivery of the device........................2-1 Packaging ............................ - Page 4 Table of contents Chapter 9 Cleaning and disinfection ........................ 9-1 Empty the condensation tray ......................9-1 Cleaning exterior surfaces......................... 9-1 Wipe / spray disinfection........................9-1 Chapter 10 Maintenance ........................... 10-1 Inspections and checks ........................10-1 Chapter 11 Disposal ............................11-1 Overview of materials used......................
-
Page 5: Chapter 1 Safety Information
These operating instructions describe the VWR 18L personal incubator. The VWR 18L personal incubator has been manufactured to the latest state of the art and been tested thoroughly for flawless functioning prior to shipping. However, the device may present potential hazards, particularly if it is operated by inadequately trained personnel or if it is not used in accordance with the intended purpose. -
Page 6: Safe Usage Instructions
• the device is not modified, • only original spare parts and accessories that have been approved by VWR International, LLC are used. The warranty is valid from the date of delivery of the device to the operator. - Page 7 Safety Information Explanation of safety information and symbols Is used for useful hints and information regarding the application. Additional symbols for safety information Wear safety gloves! Wear safety goggles! Harmful liquids! Electrical shock! Fire hazard! Contamination hazard! Symbols on the device / Applicable standards ...
-
Page 8: Intended Use Of The Device
Intended use of the device Correct use The VWR 18L personal incubator is a laboratory device in the standard version and serves the preparation and cultivation of microbiological cultures and micro-organisms in safety levels L1 and L2. The device enables the special physiological ambient conditions which these cultures require to be simulated due to it exactly controlling the useable space temperature. -
Page 9: Delivery Of The Device
Delivery of the device Packaging The VWR 18L personal incubator are delivered in a rugged packaging box. All packaging materials can be separated and are reusable: Packaging materials Packaging carton: Recycled paper Foam elements: Styrofoam (CFC-free) Packaging film: Polyethylene Acceptance inspection After the device has been delivered, check the delivery immediately for: •... - Page 10 Delivery of the device Scope of supply 18L personal incubator...
-
Page 11: Chapter 3 Installation
Installation Environmental conditions The VWR 18L personal incubator device must only be operated in a location that meets all of the specific ambient condition requirements listed below: Location requirements • Dry place of erection within a closed space which is free from droughts. -
Page 12: Room Ventilation
Installation Room ventilation Room ventilation Heat dissipating from the device during continuous operation may cause a change in the room climate. Therefore, the device must only be installed in rooms with sufficient ventilation. Do not install the incubator in room recesses without ventilation. When several devices are to be placed in the same room, additional ventilation may have to be provided as necessary. -
Page 13: Description Of Unit

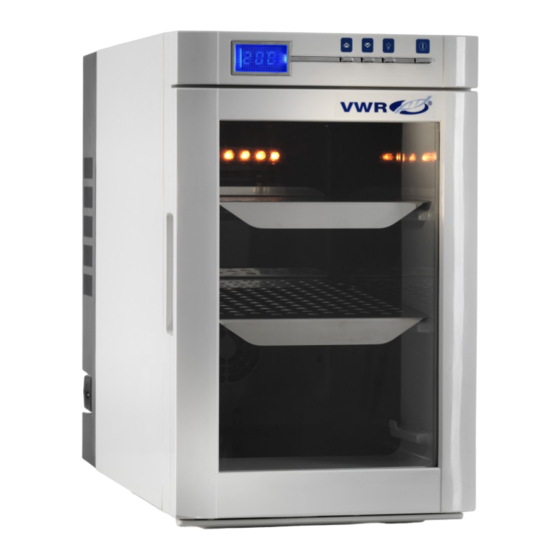

Description of unit Device overview Front view Figure 4-1: Front view VWR 18L personal incubator Temperature display Control panel Door/door handle Perforated plate 18L personal incubator... -
Page 14: Mains Connection
All of the parts of the inner container of the VWR 18L personal incubator are made of plastic (the racks are made of stainless steel) and have a smooth and easy to clean surface. -
Page 15: Condensation Tray
Description of unit Condensation tray Condensation tray A removable tray [Fig. 4-3; 2] is provided underneath the device which collects the condensation which collects whilst the useable space is in use. Figure 4-3: Cooling or heating elements and the condensation tray in the VWRs 18L personal incubator 18L personal incubator... - Page 16 Description of unit Condensation tray 18L personal incubator...
-
Page 17: Chapter 5 Installation Procedures
Insert the perforated plates in the grooved profiles on the side walls of the useable space. Preparing the useable space The VWR 18L personal incubator is not delivered in a sterile condition. The following useable space components should be checked for cleanliness and disinfected prior to use: •... - Page 18 Installation procedures Mains connection Connection to the power supply source 1. Before connecting the device to the power source, check to see if the power supply voltage corresponds with the specifications on the nameplate on the rear of the device. If the voltage (V) and current (A) ratings given are not as required, do not connect the device to the power source! 2.
-
Page 19: Chapter 6 Operation
Operation Preparing the device The device must not be released for operation before all major start-up activities have been completed (see chapter Installation procedures). Device Check Prior to starting operation, the following device components must be checked for their correct function: •... - Page 20 Operation Starting Operation 18L personal incubator...
-
Page 21: Handling And Control
Increases the desired temperature by 1 °C (33.8 °F). Decreases the desired temperature by 1 °C (33.8 °F). Switches the interior light on or off. Switches the VWR 18L personal incubator on or off. 18L personal incubator... -
Page 22: Powering Up And Down
Handling and control Powering up and down Powering up and down Switch the VWR 18L personal incubator on by pressing button (Fig. 7-1; 5). The display (Fig. 7-1; 5) is activated and shows the current useable space temperature. To switch off the VWR 18L personal incubator, press button (Fig. -
Page 23: Chapter 8 Shut-Down
Shut-down Shutting the device down Contamination hazard If the useable space surfaces are contaminated, germs may spread to the environment of the incubator. 1. Remove all items and all auxiliary agents from the useable space. 2. Turn the device off using the control panel. 3. - Page 24 Shut-down Shutting the device down 18L personal incubator...
-
Page 25: Cleaning And Disinfection
Cleaning and disinfection Empty the condensation tray Empty the condensation tray from underneath the device. To do so, pull the condensation tray completely out of the device (see Fig. 4-3), when the door is open. Electrical shock Contact with live electrical components may cause a lethal electric shock.... - Page 26 Cleaning and disinfection Wipe / spray disinfection Space is to be made available for this disinfection work which is suitable for a treatment of the removed device components with cleaning agents and disinfectants. Incompatible cleaners Some device components are made of plastics. Solvents may at- tack plastics.
- Page 27 Cleaning and disinfection Wipe / spray disinfection Health hazard The surfaces of the useable space may be contaminated. Contact with contaminated cleaning liquids may cause infections. Disin- fectants may contain harmful substances. When cleaning and disinfecting, always observe the safety in- structions and hygiene guidelines! •...
- Page 28 Cleaning and disinfection Wipe / spray disinfection Final disinfection 1. Again spray or wipe over the surface of the useable space and the removed perforated plates with a disinfectant. 2. Allow time for the disinfectant to act as specified by the manufacturer. 3.
-
Page 29: Chapter 10 Maintenance
Maintenance Inspections and checks The cooling circuit is maintenance-free and does not contain CFC. To ensure the operational performance and safety of the device, their functions and the components listed below must be checked at regular intervals. Daily check Check the water level in the condensation tray underneath the device on a daily basis. In order to empty it, pull the condensation tray completely out of the device (see Fig. - Page 30 Maintenance Inspections and checks 10-2 18L personal incubator...
-
Page 31: Chapter 11 Disposal
Disposal Contamination hazard The device may have been used for treating and processing infec- tious substances, which may have caused contamination of the device and its components. Prior to disposal, it is therefore mandatory that all incubator com- ponents be properly decontaminated! •... -
Page 32: Overview Of Materials Used
Disposal Overview of materials used Overview of materials used Component Material Thermal insulation components PU-foam Printed circuit boards Covered electrical components with diverse plastics, on epoxy resin-bonded printed circuit boards. Plastic components, general see material labeling Exterior housing Plastic Device rear panel Plastic Outer door Plastic... -
Page 33: Chapter 12 Technical Data
Technical Data Designation Value Volume 18 liter Dimensions (W x H x D) 10.24 x 16.34 x 18.50 in Interior dimensions 7.87 x 12.20 x 12.20 in Weight approx. 15.87 lb Minimal wall distance 1.97 in on the sides and back Number of stiffening plates Standard 2, maximum 3 Current consumption... - Page 34 Technical Data Designation Value Recovery times (device empty, 37 °C (98.6 °F) - 5 minutes door 30 s open, to 98 % of the working temperature) On site single fuses* - safety fuse (time-lag) T 16 A or circuit breaker B 16 - connection via a fault current circuit breaker (triggering current <...
-
Page 35: Chapter 13 Accessories
Accessories Material No. Description 10031-744 Stainless steel perforated shelf for small cooled incubator, 18L 18L personal incubator 13-1... - Page 36 Accessories 13-2 18L personal incubator...
