VR-32 Regulator and CL-2A Control
The following applies to CL-1 design regulators only:
1. Unless there is a need to replace the back panel or cabinet
due to physical damage, the upgrade to CL-2A can be
accomplished by replacing the front panel (part code
#6030) only. This is done following the instructions for CL-
2A front panel removal and replacement found on page 1-7.
Note that there are two (2) voltage end C.T. disconnect
switches on someCL-1 controls rather than one (1). All
switches must be operated as instructed to disconnect the
voltage and short the C.T. if the regulator is energized at
time of panel replacement. Note and follow the instructions
located on the decal on existing CL-1 back panels for proper
operation of the switches.
2. Perform the operational check as described on page 2-2 to
ensure correct operation.

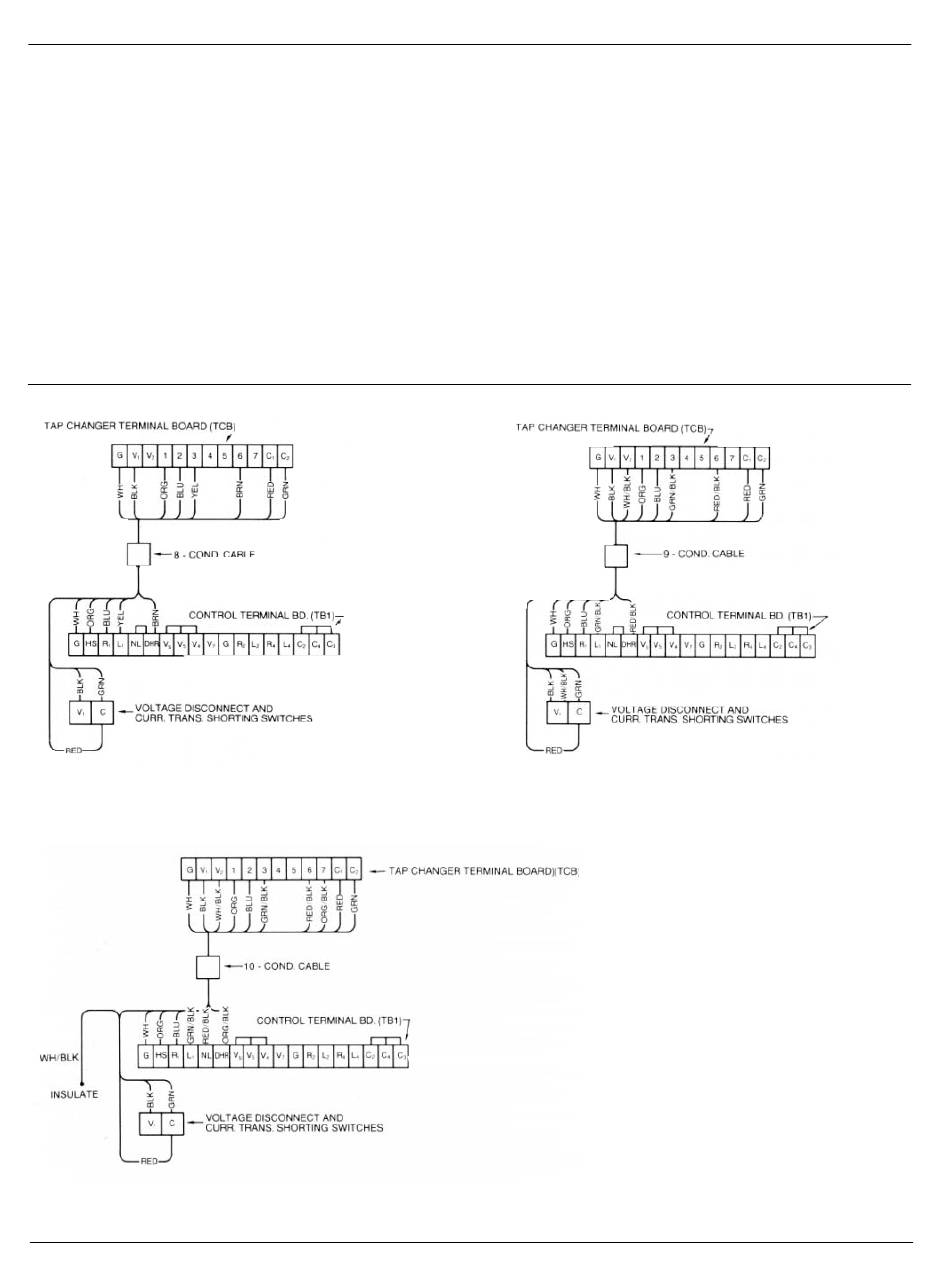

Figure 2-10.
8 - Conductor cable.
Figure 2-12.
10 - Conductor cable.
2-13
Figure 2-11.
9 - Conductor cable.
