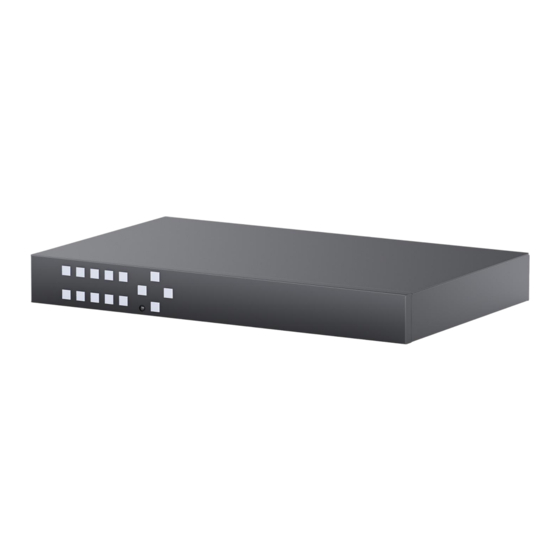

MX-5004MZ2F
4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60
4:4:4
User Manual
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ......................................................................................................................... 1
PACKAGE CONTENTS ...................................................................................................... 1
SPECIFICATIONS .............................................................................................................. 2
PANEL DESCRIPTIONS .................................................................................................... 3
CONNECTION DIAGRAM .................................................................................................. 4
HARDWARE INSTALLATION ............................................................................................. 4
OPERATION APPROACH .................................................................................................. 5
WARRANTY ..................................................................................................................... 23
rev: 201214
Made in Taiwan
Advertisement
Table of Contents
Related Manuals for GoMax Electronics MX-5004MZ2F
Summary of Contents for GoMax Electronics MX-5004MZ2F
-
Page 1: Table Of Contents
TABLE OF CONTENTS MX-5004MZ2F INTRODUCTION ........................ 1 FEATURES ......................... 1 PACKAGE CONTENTS ...................... 1 SPECIFICATIONS ......................2 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 PANEL DESCRIPTIONS ....................3 4:4:4 CONNECTION DIAGRAM ....................4 HARDWARE INSTALLATION ..................... 4 OPERATION APPROACH ....................5 WARRANTY ........................ -
Page 2: Introduction
INTRODUCTION SPECIFICATIONS The MX-5004MZ2F 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 provides the most Model Name MX-5004MZ2F Technical flexible and cost effective solution in the market to route ultra-high definition video source from any of the four UHD HDMI sources to the remote display at the same time. This solution is also well suited for... -
Page 3: Panel Descriptions
HARDWARE INSTALLATION 15. Micro USB: For F/W update MX-5004MZ2F as master The MX-5004MZ2F is able to automatically downscale on output 2 according to EDID of connected display equipment. 1. Connect all sources to HDMI Inputs on the MX-5004MZ2F. 2. Connect the display to HDMI Output on the MX-5004MZ2F. -
Page 4: Operation Approach
Method B: Software Control through Micro-USB port OPERATION APPROACH 1. System Requirement (1) OS Information: MS Win XP/7/8/10 Method A: IR Remote Control (2) Baud rates: 115200 (3) Software size: 10 MB (4) Minimum RAM requirement: 256 MB Button Function POWER Power on/off the device 2. - Page 5 Control Interface Output Settings In this section, users can set up the coordinate for inputs, the source of window A~D, output resolution, layout setting (PAP or full screen) and switch mode. (1) Source Selection For each display window, you can assign arbitrary video source here. (2) Quick Selection We provide 9 default modes, 8 custom modes and 4 switching effects (Seamless, Fade in/out, Dissolve, Wipe) for user to select.
- Page 6 (4) Save Layout Advanced Setting We provide 8 custom layout space for users to save the frequently used scenarios into the flash memory. (5) Display Panel In the left part of control interface, user can customize the display mode thru control. The different colors of frame represent the different input windows.
- Page 7 Crop Setting (3) Window Label In this function, users can determine if the window’s label/border is turned on or off. (4) Background Screen To set up the background of window. We provide 4 empty space for user to upload background pictures.
- Page 8 (2) Corp Area & Crop Area Control EDID (Extended display identification data) User can customize the range to crop video source and display it on window A-D. Define the area range by entering parameters or adjusting the frame in the crop area. After setting the crop range, please click the “Enable Crop”...
- Page 9 Net Setting (2) MAC address Read the device’s MAC address information. (3) Cloud Setting (1) IP Configure User also can use the WEB to control the mixer. Please setup the Ethernet for the unit as below example shows. After the step of IP configuration, please click the button.
- Page 10 System Setting Please select the correct COM port or click “Scan” button to connect device. Click “update” button to do firmware update. (2) Factory Reset Click button to do factory default reset. The process of default reset will take about 25 seconds. (1) Firmware Update ...
- Page 11 Method C: Web Interface Control Method D: Cloud Control (Eagleyes) through Ethernet Port The default IP address: 192.168.1.46 Create Account The first time to use the Eagleyes service, please create a new account. 1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”. 2.
- Page 12 Add Device to Eagleyes 4. Click the “SET” button on software to reset cloud 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the software with device to get the register code (Note: the status of software is connected). 5.
-
Page 13: Warranty
WARRANTY The SELLER warrants the MX-5004MZ2F 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
