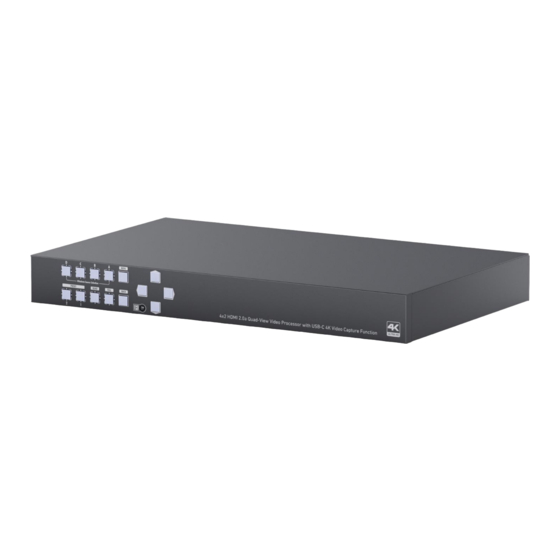

MX-5004MZ2E-CF
4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60
4:4:4 & USB-C 4K Video Capture Function
User Manual
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ......................................................................................................................... 1
SPECIFICATIONS .............................................................................................................. 2
PACKAGE CONTENTS ...................................................................................................... 3
PANEL DESCRIPTIONS .................................................................................................... 3
CONNECTION DIAGRAM .................................................................................................. 4
HARDWARE INSTALLATION ............................................................................................. 4
OPERATION APPROACH .................................................................................................. 5
USB PIN DEFINITION ...................................................................................................... 20
WARRANTY ..................................................................................................................... 21
rev: 210521
Made in Taiwan
Advertisement
Table of Contents
Related Manuals for GoMax Electronics MX-5004MZ2E-CF
Summary of Contents for GoMax Electronics MX-5004MZ2E-CF
-
Page 1: Table Of Contents
TABLE OF CONTENTS MX-5004MZ2E-CF INTRODUCTION ........................ 1 FEATURES ......................... 1 SPECIFICATIONS ......................2 PACKAGE CONTENTS ...................... 3 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 PANEL DESCRIPTIONS ....................3 CONNECTION DIAGRAM ....................4 4:4:4 & USB-C 4K Video Capture Function HARDWARE INSTALLATION ..................... -
Page 2: Introduction
INTRODUCTION SPECIFICATIONS The MX-5004MZ2E-CF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video Model Name MX-5004MZ2E-CF Capture Function provides the most flexible and cost effective solution in the market to route ultra-high Technical definition video source from any of the four UHD HDMI sources to the remote display at the same time. -
Page 3: Package Contents
15. USB-C OUT: Connect to a USB host such as PC, NB, and MAC (for capture function and F/W update) 2. Connect the display to HDMI Output on the MX-5004MZ2E-CF. 3. Connect the +12V 5A DC power supply to the MX-5004MZ2E-CF. The MX-5004MZ2E-CF is able to automatically downscale on output 2 port according to EDID of connected display equipment. -
Page 4: Operation Approach
Method B: Software Control through Micro-USB port OPERATION APPROACH 1. System Requirement Method A: IR Remote Control (1) OS Information: MS Win XP/7/8/10 (2) Baud rates: 115200 (3) Software size: 10 MB Button Function (4) Minimum RAM requirement: 256 MB POWER Power on/off the device LOCK... - Page 5 Control Interface Output Settings In this section, users can set up the coordinate for inputs, the source of window A~D, output resolution, layout setting (PAP or full screen) and switch mode. (1) Source Selection For each display window, you can assign arbitrary video source here. (2) Quick Selection We provide 9 default modes, 8 custom modes and 4 switching effects (Seamless, Fade in/out, Dissolve, Wipe) for user to select.
- Page 6 (4) Save Layout 3. Advanced Setting We provide 8 custom layout space for users to save the frequently used scenarios into the flash memory. (5) Display Panel In the left part of control interface, user can customize the display mode thru control. The different colors of frame represent the different input windows.
- Page 7 Crop Setting (3) Window Label In this function, users can determine if the window’s label/border is turned on or off. (4) Background To set up the background of window. We provide 4 empty space for user to upload background pictures. User can click File button to load the picture which you want to use and click Start button to write this picture into the device.
- Page 8 (2) Corp Area & Crop Area Control EDID (Extended display identification data) User can customize the range to crop video source and display it on window A-D. Define the area range by entering parameters or adjusting the frame in the crop area. After setting the crop range, please click the “Enable Crop”...
- Page 9 Net Setting (2) MAC address Read the device’s MAC address information. (1) IP Configure User also can use the WEB to control the mixer. Please setup the Ethernet for the unit as below example shows. After the step of IP configuration, please click the button.
- Page 10 System Setting Please select the correct COM port or click “Scan” button to connect device. Click “update” button to do firmware update. (2) Factory Reset Click button to do factory default reset. The process of default reset will take about 25 seconds. Info Read the Software and firmware version.
-
Page 11: Usb Pin Definition
Method C: Web Interface Control USB PIN DEFINITION The default IP address: 192.168.1.46 VBUS A4, B4, A9, B9 VBUS A1, B1, A12, B12 SSTxn1 SSRX- SSTxp1 SSRX+ A1, B1, A12, B12 SSRxn1 SSTX- SSRxp1 SSTX+ User can choose Operator or Admin account to login. 1. -
Page 12: Warranty
WARRANTY The SELLER warrants the MX-5004MZ2E-CF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video Capture Function free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail...
